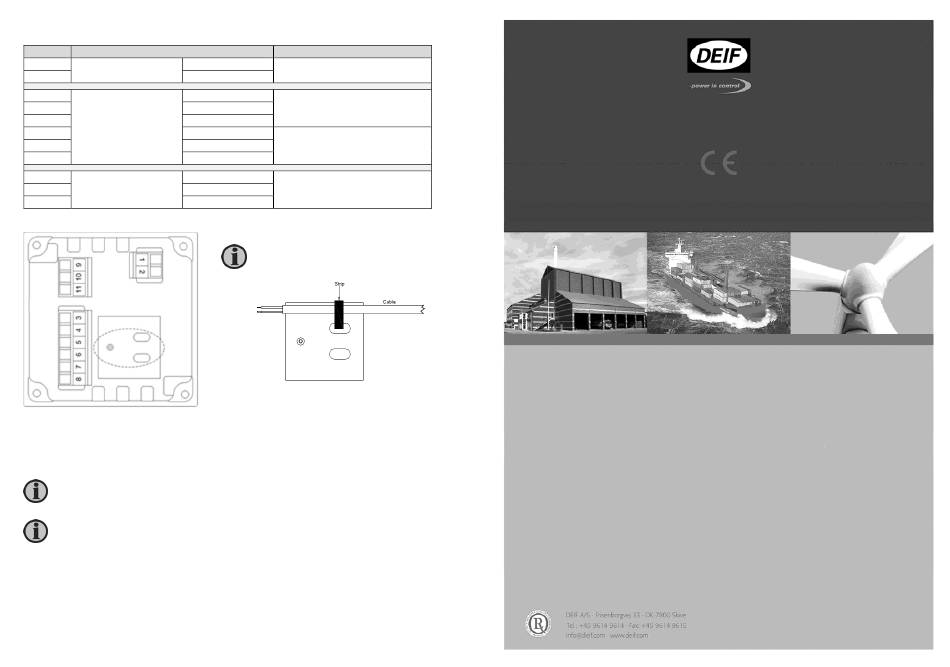

Wiring of CAN version
Pin no.
Function
1
0 V
Supply voltage
2
24 V
3
CAN 1 H input
4
CAN 1 L input
5
CAN 1 GND
CAN connection
6
CAN 2 H input
7
CAN 2 L input
8
CAN 2 GND
9
NC
Illumination
10
Illumination GND
analogue dimmer
11
Illumination +
After power-up, the LED will flash once or twice and is then turned off. If the LED keeps
flashing, there is no communication on the CANopen lines. Default setup of the Baud
rate is 125 kbit/s.
The cable screen must never be connected to earth.
In case the communication is interrupted because of noise, connect the
cable screen to terminals 5 and 8 for dual CAN on all instruments in the
loop; do not connect the two screens.
Note
Consumption max. 150 mA
CAN 1 line (sCAN line)
CAN 2 line/or for external
switch for calibrating sCAN
(See user's manual)
Dimmer input. Dimmer range 7
to 30 V
dc
Consumption max. 30 mA
The plate shown at the arrow is for fastening
the CAN cable by means of a strip.
The strip is not included.
Illuminated indicators, XL
Refer to www.deif.com for detailed information
QUICK GUIDE
Document no.: 4189350054A
