Elgar CW 1251M Operation Manual

Cw-m series
Hide thumbs
Table of Contents

Advertisement

Quick Links

®
ELGAR ELECTRONICS CORPORATION
9250 Brown Deer Road
San Diego, CA 92121-2294
1-800-733-5427
Tel: (858) 450-0085
Fax: (858) 458-0267
Email: sales@elgar.com
www.elgar.com
This document contains information proprietary to Elgar Electronics Corporation. The information contained herein is
not to be duplicated or transferred in any manner without prior written permission from Elgar Electronics Corporation.
March 8, 2002
Advanced Test Equipment Rentals
www.atecorp.com 800-404-ATEC (2832)

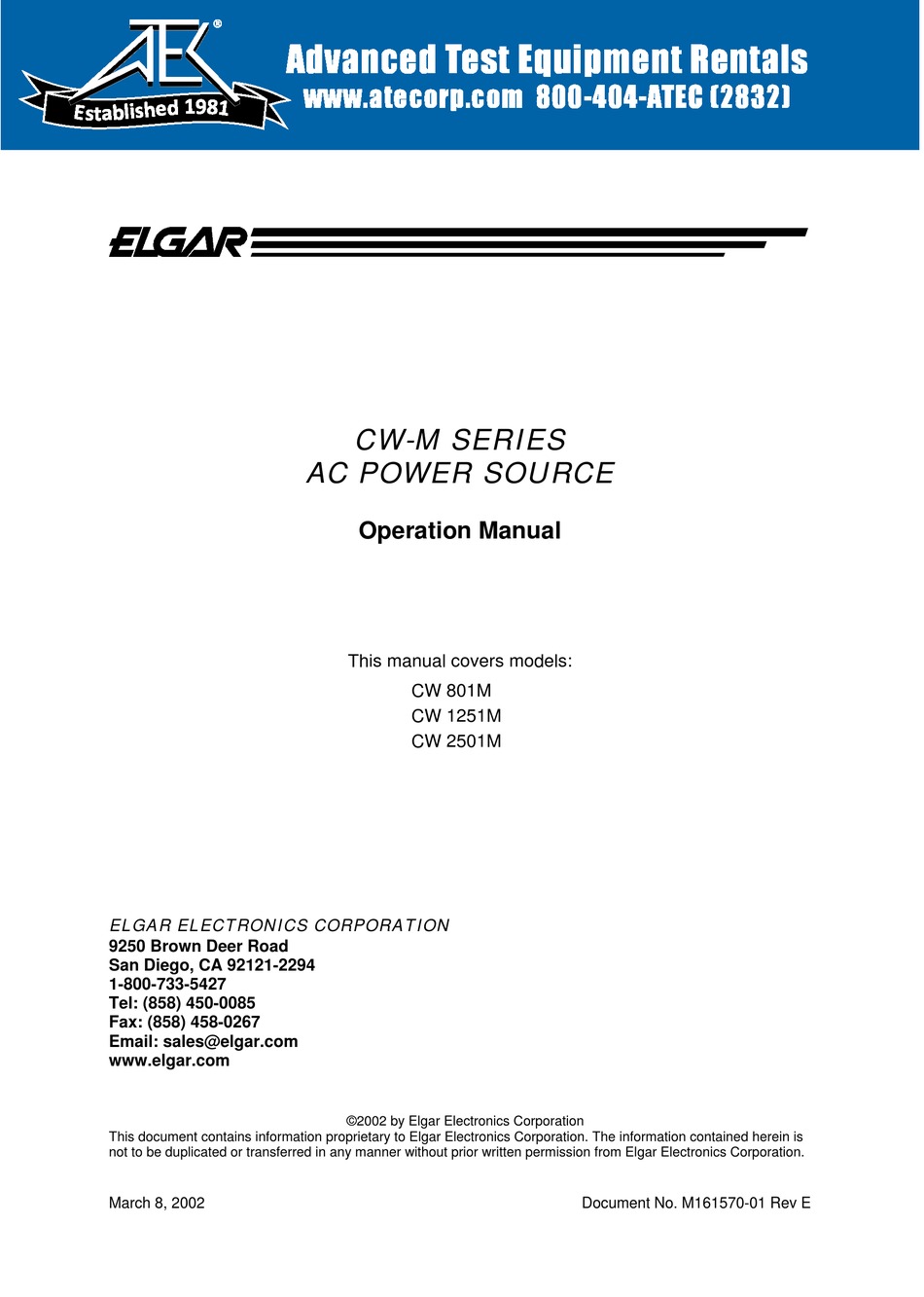

CW-M SERIES
AC POWER SOURCE
Operation Manual
This manual covers models:
CW 801M
CW 1251M
CW 2501M
©2002 by Elgar Electronics Corporation
Document No. M161570-01 Rev E
