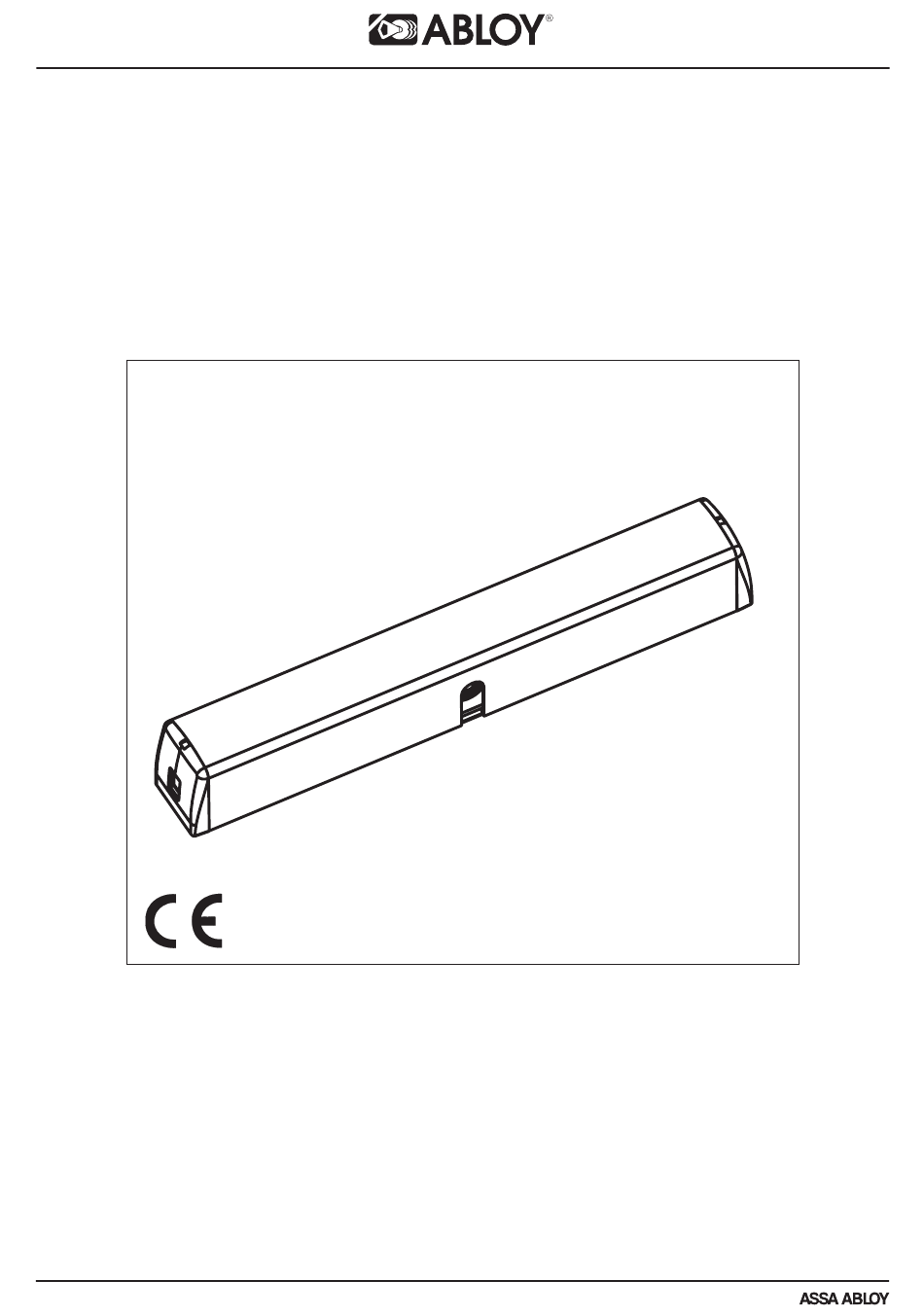

- Page 1 ABLOY DA430 SWING DOOR OPERATOR ® – Installation and commissioning manual An ASSA ABLOY Group brand...
- Page 2 Ensure that entrapment between door and the surroundings is avoided. Ensure that the operator is suited for installation. Check temperature, humidity, door weights, etc. restriction in line with specifi cations applicable in the manual or other Abloy® Oy material. Note! Instructions, design specifi...
-
Page 3: Table Of Contents
CONTENTS REVISION ....................4 CONTENT OF DELIVERY ................ 5 GENERAL INFORMATION ............... 6 OPERATION ..................... 7 MODE SWITCH..................7 INSTALLATION ..................8 6.1 Installing the operator and the mounting plate DA105 ..........9 6.2 Assembly of the operator and standard arm DC190 to the closing side ....10 6.3 Assembly of the operator and sliding arm DC194 to the closing side ..... -
Page 4: Revision
REVISION Following pages have been revised: Page Revision As at 21.09.2009. -
Page 5: Content Of Delivery
CONTENT OF DELIVERY DA430 Swing door operator - screw M6x16, 1 pcs - spring washer, 4 pcs - washer 4 pcs - hex-socket head screw M6x16, 4 pcs - grooved spindle, 1 pcs - tension sleeve, 1 pcs DA105 Mounting plate... -
Page 6: General Information
GENERAL INFORMATION Technical data Measures • (L) 523 x (H) 68 x (W) 80 mm • weight 3,5 kg Supply voltage • 110 - 230 VAC (±15%) 50...60 Hz • back-up inlet 24 VDC (±15%) 2A Enclosure class • IP20 Temperature range •... -
Page 7: Operation
OPERATION Abloy DA430 is an electromechanical swing door operator for moderate use. ® It can be used on single, internal doors. The Abloy DA430 has a ”Push&Go” ® function. When Push&Go is in operation and door is pushed or pulled manually, operator opens the door to adjusted opening angle and closes the door after a 5 second of hold open time. -
Page 8: Installation
INSTALLATION Steps of installation - Preparing installation - Installing the mounting plate if needed - Mounting the operator and the arm - Connecting the operator to mains - Commissioning - Testing - Connecting impulse devices Preparing installation - Check the correct function of the door - Hinges - Door clearance... -
Page 9: Installing The Operator And The Mounting Plate Da105
6.1 Installing the operator and the mounting plate DA105 The operator is installed on the transom, with the mode switch located towards the hinge side of the door. Securely fi x the operator or the mounting plate to the transom. Minimum requirement for wall profi le is 5 mm (steel). Installing the operator Hinge line Installing the mounting plate DA105... -
Page 10: Assembly Of The Operator And Standard Arm Dc190 To The Closing Side
Assembly of the operator and standard arm DC190 to the closing side Hinge line Ø *The measure from bottom of the operator ** The measure from bottom of the frame... -
Page 11: Assembly Of The Operator And Sliding Arm Dc194 To The Closing Side
Assembly of the operator and sliding arm DC194 to the closing side *The measure from bottom of the operator ** The measure from bottom of the frame Frame depth DA430 distance Arm distance Minumum door H/mm from hinge line L/mm... -
Page 12: Assembly Of The Operator And Sliding Arm Dc194 To The Opening Side
Assembly of the operator and sliding arm DC194 to the opening side Hinge line *The measure from bottom of the operator ** The measure from the top of the door Frame depth Arm distance Minumum door H/mm L/mm width M/mm 0 - 40 40 - 100 100 - 150... -
Page 13: Internal Connections
MAN: NC OPEN: Blue & Black Connecting DC supply back-up When using DA430 swing door operator together with DC supply back-up, current supply have to be limited. This is done by connecting 0,5 Ohm (2W) resistor and current supply in series. -
Page 14: Commissioning
COMMISSIONING 1 Check the free movement of the door. 2 Turn mode switch to MAN. The mode switch is located in the head panel. 3 Plug in the mains. Jumpers are located on the control board. 4 Choose the type of the arm. - Page 15 8 Opening speed and hold open time Adjust the opening speed. A slow door is a safe door. The door speed should be set to allow unhindered access but as slow as is possible. SPEED Adjust the hold open time (0...60 s). Full right position (seq) means that every other impulse either opens or closes the door.
-
Page 16: Safe Door
We recommend that safety sensors are fi tted to all applications, particularly on the driven side, opening face in the case of a DA430. Higher speeds are only achievable when full safety is specifi ed. -
Page 17: External Connections
10 EXTERNAL CONNECTIONS Connector X2 1 0 V 2 Impulse input 3 Locking circuit Inhibits the opening if the lock bolt is thrown. Grounding this input allows for opening 4 Safety sensor Ground to stop the door movement during operation 5, 6,7 Potential free relay output for lock drive 8 Ground 9 +24 VDC, 500mA output... -
Page 18: Connection Examples
11 CONNECTION EXAMPLES 11.1 Safety sensors DA001 and DA002 On the opening side 1000 ohm The loop must have a 1K resistor in parallel across the terminals 1 and 4. This must be fi tted in safety sensor, in order that the door operator monitors the condition of the cable between the sensor and the operator. -
Page 19: Da061 And Da062 Microwave Motion Sensor
11.2 DA061 and DA062 Microwave motion sensor white pink 1000 ohm yellow blue brown green 11.3 DA063 Microwave motion sensor 1000 ohm... -
Page 20: Da033 Elbow Switch
11.4 DA033 Elbow switch 11.5 DA039 and DA049 rotary switch blue black... -
Page 21: Electric Locks El402, El404, El502
11.6 Electric locks EL402, EL404, EL502 black 1000 ohm blue green NOTE! Not to be installed in doors with seal force. Bolt and trigger bolt have to be lubricated when lock is installed and when necessary. 11.7 Motor locks EL490, EL590 grey blue 1000 ohm... -
Page 22: Motor Locks El420, El520
BACKUP - DOOR WHITE +12V 1000 ohm CLOSED BLACK+VIOL. USED GREEN HANDLE YELLOW Extension cable NOT USED ABLOY EA218, EL219 USED BROWN EA218 CYLINDER BLUE NOT USED RED/GREEN Length 6m/10m ORANGE Cable 16 x 0.14 m m^2 BOLT IN TURQUOISE... -
Page 23: Self Diagnostics
12 SELF DIAGNOSTICS Fault codes - detect malfunctions - to ensure safe operation where possible during malfunction - to restore the operator to its required status If the door operator is unrecoverable it will revert to manual operation only. Both LED’s will blink. Control units LED’s Yellow led = Y TEACH CLOSED... -
Page 24: Maintenance
13 MAINTENANCE Door operators require periodic maintenance. Only trained personel are equiped to work on Abloy DA products. ® Door leaf is moving sensitively and locking works well. Regular annual services are made: - Under 100 openings per day; service once a year - 100 ... -
Page 25: Spare Parts
14 SPARE PARTS Cover aluminium 410370 Cover white 410369 Position sensor 806811 Head panel Compatible unit 813486 813319 Control unit 813465 Mode switch 806914 Transformer 806903 DC194 DC190... - Page 28 An ASSA ABLOY Group brand Abloy Oy is one of the leading manufacturers of locks, locking systems and architectural hardware and the world’s leading developer of products in the field of electromechanical locking technology. ASSA ABLOY is the global leader in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience.
