- Page 1 GET STARTED E300 Mini WiFi Range Extender / AP / Router...
-
Page 2: Table Of Contents
Connect to an existing WIFI network..... Method 1: Connect with a web browser.... Method 2: Connect with WPS......Connect an Ethernet-enabled Device....Using as an Access Point........Other Settings Change the password of Prescitech E300.... Hide extender’s wireless network......Troubleshoots... -
Page 3: Overview
Overview The Prescitech E300 WiFi Range Extender is a network device with multifunction, which can be using for increasing the distance of a WiFi network by boosting the existing WiFi signal and enhancing the overall signal quality over long distances. An extender repeats the signals from an existing WiFi router or access point. -
Page 4: Front Panel
Front Panel Before you install your extender, familiarize yourself with its LEDs, buttons, and port. 2 x External Antennas WLAN LED 3 WLAN LED 2 WLAN LED 1 Power/ WPS LED WPS Button WAN/ LAN LED LAN LED WAN/LAN Power Switch Mode RESET Selector Switch... -
Page 5: Led Descriptions
LED Descriptions Power/WPS LED Lit. Power on. Blinking. A WPS connection is being established. OFF. Power is not supplied. WAN/LAN LED Blinking Fast. The port is sending or receiving traffic. Off. No Ethernet cable connected. LAN LED Blinking Fast. The port is sending or receiving traffic. Off. -
Page 6: Using As An Extender
Using as an Extender The extender works like a bridge between a WIFI router (or an access point) and a WIFI device out of the range from WIFI router. The extender performs two main jobs: Connects to a WIFI network When the extender connects over WIFI to an existing network, it functions as a network client, similar to one WIFI device connects to a network. -
Page 7: Power On The E300
Power on the E300 Switch the power button “ON” & the mode button to “Repeater” on the side of the E300. Plug the E300 into an electrical outlet which next to your WIFI router. The E300 plugged in the proximity of the WIFI router only for the initial setup process. -
Page 8: Connect To An Existing Wifi Network
Method 1: Connect with a web browser 1. Once connected, visit: http://extenderlogin.com or 192.168.10.1 . When prompted, enter “admin” in a lower-case to login. (admin page not available? visit the troubleshoots on Page 16) Prescitech Wi-Fi Range Extender admin English Login... - Page 9 Wizard Wi-Fi Settings 3. It is around half a minute to reboot the E300. You can connect back the new SSID of E300 by locating the suitable place you need (how to locate the repeater please refer to the troubleshoots on Page 16).
-
Page 10: Method 2: Connect With Wps
WLAN LED1 would keep blinking, try it once again. If still failed, use the Method 1 on page 06. 4. It is around half a minute to reboot the E300. You can connect back the new SSID of E300 by locating the suitable place you need (how to locate the repeater please refer to the troubleshoots on Page 16). -
Page 11: Connect An Ethernet-Enabled Device
Connect an Ethernet-enabled Device After the E300 connected to your existing WIFI network successful, you can connect a wired device to the E300 by using an Ethernet cable. Then the device can access your existing network through the WIFI connection. -
Page 12: Using As An Access Point
Using as an Access Point The Prescitech E300 WIFI Range Extender also can be used as an Access Point. An access point receives internet data by wired Ethernet (such as hotel’s wired Ethernet), and converts into a 2.4GHz wireless signal. It sends and receives wireless traffic to and from nearby wireless clients. - Page 13 WAN/LAN Port 3. Use a WIFI network manager on a computer or smartphone (recommended) to find and connect to the E300 network “Prescitech E300”. Using the PIN number on the rear panel of the E300 if ask for the password.
- Page 14 4. Once connected, visit: http://extenderlogin.com or 192.168.10.1 . When prompted, enter “admin” in a lower-case to login. (admin page not available? visit the troubleshoots on Page 16). Prescitech Wi-Fi Range Extender admin English Login...
- Page 15 AP Wizard Wi-Fi SSID: Prescitech E300 Security Type: WPA/WPA2 Mix xxxxxxxxxx Wi-Fi Password: Apply Home Wizard Wi-Fi Settings 6. It is around half a minute to reboot the E300. You can connect back the E300 by the password you set.
-
Page 16: Other Settings
Other Settings Change the password of Prescitech E300 1. Connect the E300 and visit the admin page by entering http://extenderlogin.com or 192.168.10.1 2. Fill in the password of admin page. 3. Click “Settings” >> “Login Password”. Input your current password & the new password you want to set twice. -
Page 17: Hide Extender's Wireless Network
SSID even they get the password of the wireless network. This function ONLY works for AP mode. 1. Connect the E300 and visit the admin page by entering http://extenderlogin.com or 192.168.10.1 2. Fill in the password of admin page. -
Page 18: Troubleshoots
Troubleshoots 1. How to find out the suitable location for my E300? The location that you choose must be within the range of your existing WIFI router network. Use the WLAN LEDs to help you choose a spot where the extend- er-to-router connection is optimal. - Page 19 If you are using the computer/laptop to setup the E300, and the E300 has been reset into its default setting ever before. Please clear the browser caching & wait around half of minute. Or you can change another browser to try, refresh several times.
- Page 20 Model: E300 E300 Mini WiFi Range Extender / AP / Router US COST FREE Tech Support: 800-213-1134 (PST Mon-Sun 06:00-24:00) UK COST FREE Tech Support: 800-970-3063 (GMT Mon-Sun 14:00-08:00) Website: www.prescitech.com E-Mail:support@wifiextendersupport.com V6.1...
Need help?
Do you have a question about the E300 and is the answer not in the manual?
Questions and answers

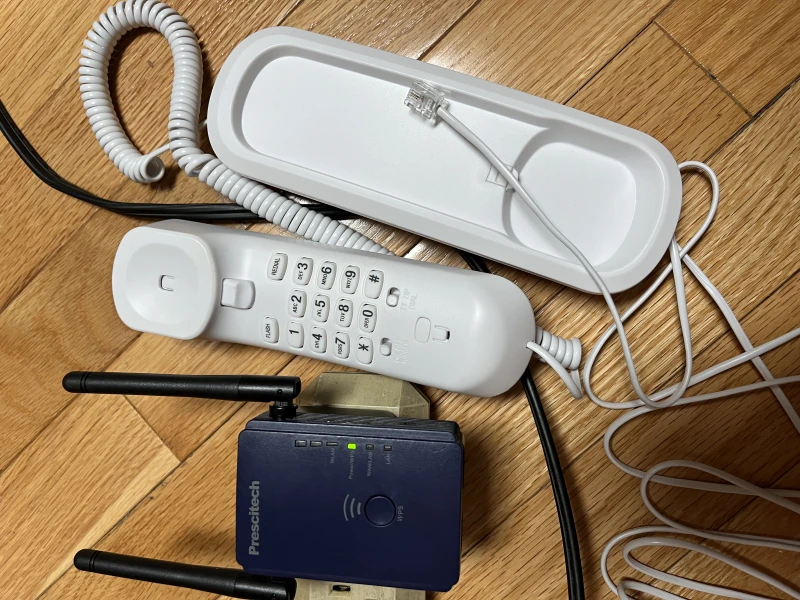

Can a landline be used
