XL-PAV-11
User's Guide

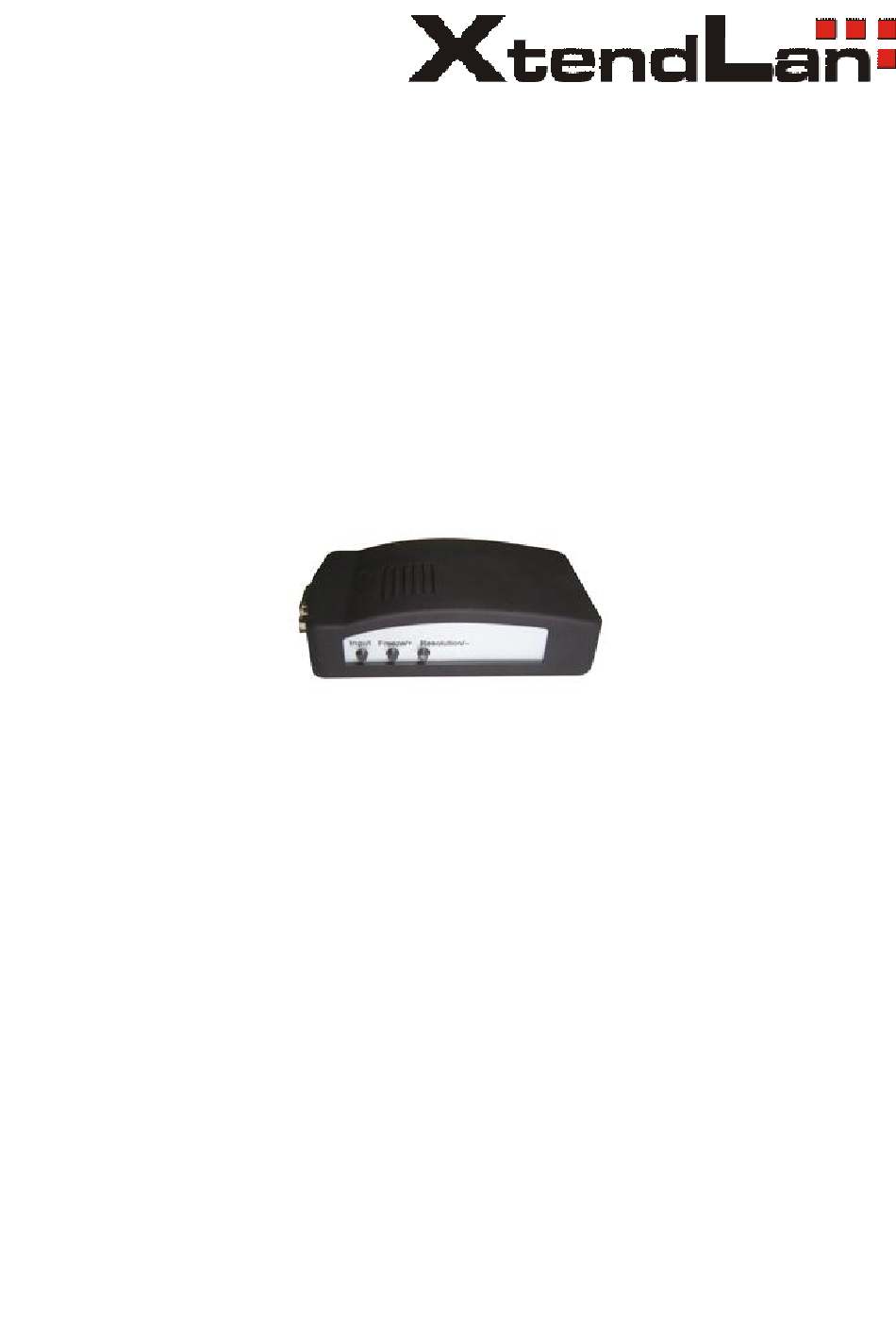

Product Photo:
Main Features:
1. 1channel S-Video, 1channel AV composite video &1channel VGA input
2. 1channel VGA output
3. USB power supply
4. Support PAL/NTSC and auto switch
5. Supports signal: VIDEO, S-VIDEO, CVBS &VGA
6. Support resolution: 640×480,800×600, 1024×768
7. Lightness, contrast, color saturation etc parameter adjustable
8. Image freeze function
9. Save current work estate when the power cut
10. High quality image
11. Compatible with all OS
12. Light, thin short, small for easy to carry
Advertisement
Table of Contents
Related Manuals for XtendLan XL-PAV-11
Summary of Contents for XtendLan XL-PAV-11
-
Page 1: Main Features
XL-PAV-11 User’s Guide Product Photo: Main Features: 1. 1channel S-Video, 1channel AV composite video &1channel VGA input 2. 1channel VGA output 3. USB power supply 4. Support PAL/NTSC and auto switch 5. Supports signal: VIDEO, S-VIDEO, CVBS &VGA 6. Support resolution: 640×480,800×600, 1024×768 7. - Page 2 Connecter instruction: Name Explain (1)VGA Out To connect computer display To connect fountainhead of video (2)Video In frequency (eg: DVD. Monitor etc) (3)Svideo In To connect signal source with S end (4)VGA In To connect host computer (5)DC 5V To connect power supply (6)Remote To connect infrared acceptor(RC)
