XtendLan XL-HDISC11 User Manual

HDMI to HDMI Converter

User Manual

Safety Notes:
1). In order to avoid fire, electricity shock or product damage, please
keep the product away from rain, damp, any other liquid, and
pressure.
2). Keep ventilation. Don't put the product in any enclosed cabinet
during it is working, otherwise product damage or fire may be
caused by high temperature.
3). Don't touch the power adapter with wet hands.
4). Turn off the power before plug in/output equipment
5). Working power is 5V/1A. Please check the power adapter
parameters before you change it.
6). Please keep the user manual for future reference.

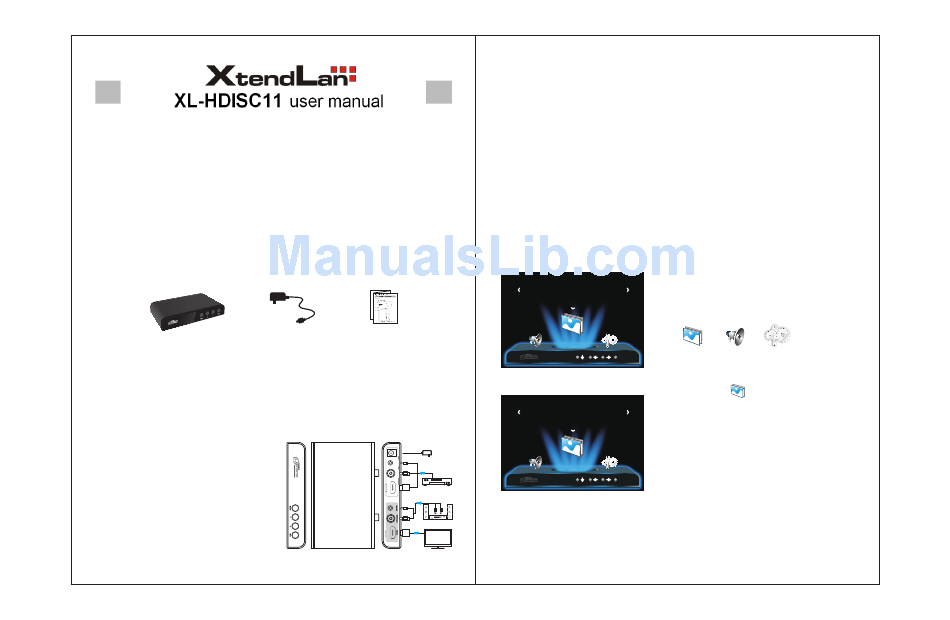

1. Box Content

Converter box DC5V 1A power

2. Installation requirement

2.1 Video source with HDMI output
2.2 HDTV or projector with HDMI port

3. Installation steps

3.1 Connect the converter to HDMI
port of video source with HDMI
cable.
3.2 Connect the converter to the
HDTV with HDMI cable, then
power on the converter, and
switch the TV to the
corresponding HDMI channel.
User manual
adapter
DC
DVD
Amplifier
HDTV
3.3 Connect the converter to sound box with audio cable and
coaxial cable.
3.4 Connect the converter to the amplifier with audio cable
and coaxial cable.

4. Operation

4.1 Loop-switch the output resolution at 1080p@60Hz, 1080p@50Hz,
720p@60Hz, 720p@50Hz, 576p@50Hz, 480p@60Hz,
1680x1050@60Hz, 1440x900@60Hz, 1366x768@60Hz,
1280x1024@60Hz, 1024x768@60Hz, 800x600@60Hz,
640x480@60Hz.
4.2 Adjust the volume by "+" or "-" button. (Coaxial audio can't be
adjusted).
4.3 Enter into the function option menu by "MENU" button.

5. OSD Menu option

5.1 Menu option selection

5.1.1 Press "MENU" to open the main
Picture Mode Standard
Show Effect Off
Red 128
5.1.2 Press "+" "-" to select the option
Exit
5.1.3 Press "ESC" to exit the menu.

5.2 Picture option

5.2.1 When "
Picture Mode Standard
Show Effect Off
Red 128
5.2.2 Press "+" "-" to adjust the value
5.2.3 Press "ESC" to exit the menu.
Exit
Picture Mode: Standard/Mild/Vivid (Default: Standard)
Show Effect: Off/TB Mirror/ LR Mirror/Over Turn (Default: Off)
Red: 0-255 (Default:128) Adjust the red level
Green: 0-255 (Default: 128) Adjust the green level
Blue: 0-255 (Default: 128) Adjust the blue level
menu.
to adjust.
Audio Setting
"selected,press
"MENU" to enter into picture
parameters settings.
of parameters.
