Maxim Integrated MAXREFDES36 Quick Start Manual

Io-link 16-channel digital input hub
Hide thumbs

Advertisement

Quick Links

Download this manual
MAXREFDES36#
IO-Link 16-Channel Digital Input Hub

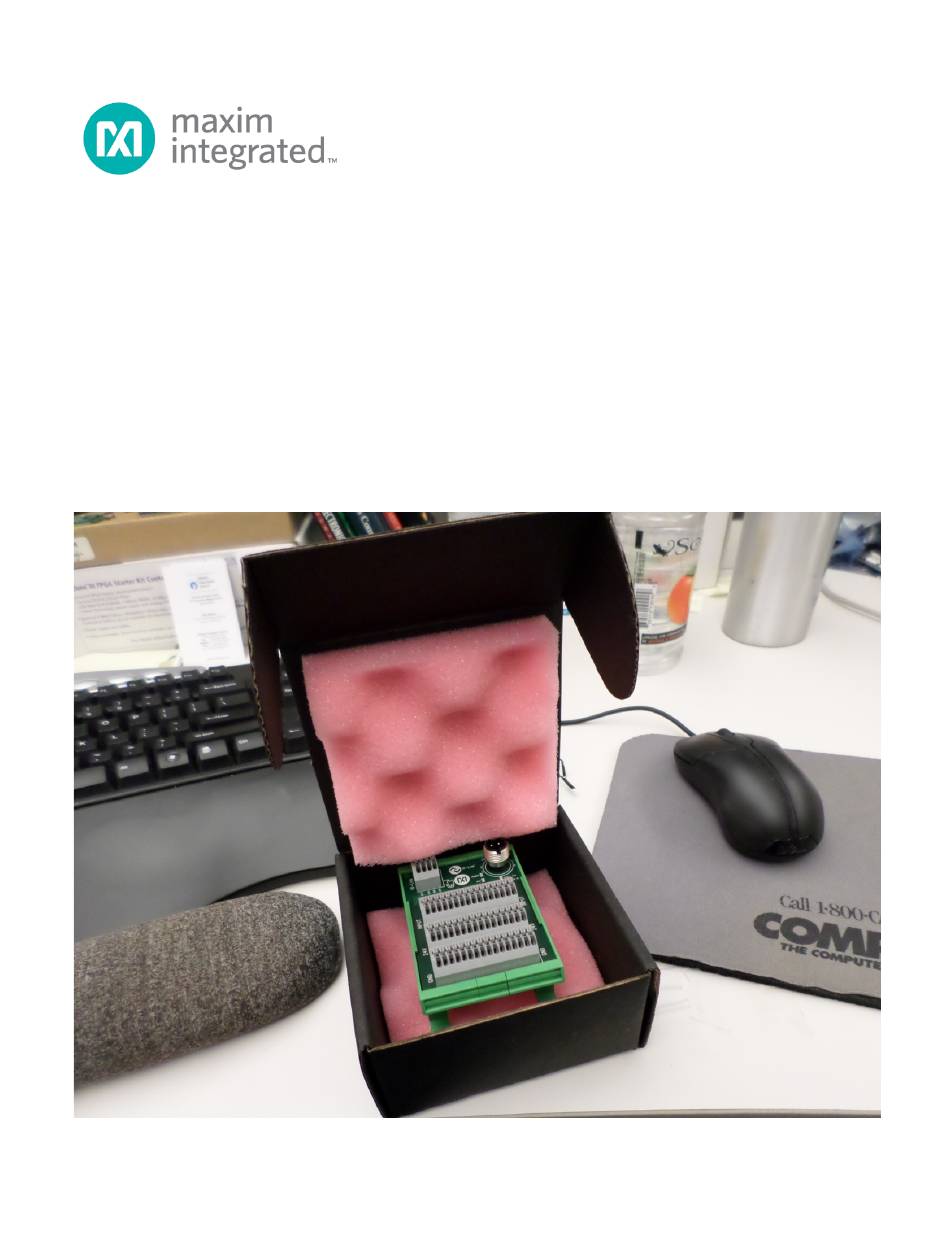

Quick Start Guide
Rev 0; 5/14
Maxim Integrated cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim Integrated product. No circuit
patent licenses are implied. Maxim Integrated reserves the right to change the circuitry and specifications without notice at any time.
Maxim Integrated 160 Rio Robles, San Jose, CA 95134 USA 1-408-601-1000
© 2014 Maxim Integrated Products, Inc.
Maxim Integrated and the Maxim Integrated logo are trademarks of Maxim Integrated Products, Inc.

Advertisement

loading
Need help?

Need help?

Do you have a question about the MAXREFDES36 and is the answer not in the manual?

Questions and answers

Related Manuals for Maxim Integrated MAXREFDES36

Summary of Contents for Maxim Integrated MAXREFDES36

  • Page 1 Rev 0; 5/14 Maxim Integrated cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim Integrated product. No circuit patent licenses are implied. Maxim Integrated reserves the right to change the circuitry and specifications without notice at any time.

  • Page 2: Table Of Contents

    MAXREFDES36# IO-Link 16-Channel Digital Input Hub Quick Start Guide Table of Contents 1. Required Equipment ....................3 2. Overview ........................3 3. Included Files ......................5 4. Procedure ......................... 6 5. Appendix A: Project Structure and Key Filenames ..........26 6.

  • Page 3: Required Equipment

    XX = minor version 2. Overview Below is a high-level overview of the steps required to quickly get the MAXREFDES36# design running by connecting it to the Balluff USB IO-Link master and Balluff software. Detailed instructions for each step are provided in the following pages.
  • Page 4 MAXREFDES36# IO-Link 16-Channel Digital Input Hub Quick Start Guide Figure 1. MAXREFDES36# Board Connected to a Balluff USB IO-Link Master Figure 2. Green LED Is Lit...

  • Page 5: Included Files

    MAXREFDES36# IO-Link 16-Channel Digital Input Hub Quick Start Guide 3. Included Files The RD36_RL78_V01_XX.ZIP contains the corresponding IO-Link Device Descriptor (IODD) files. The IODD contains information on communication properties, device parameters, identification, process, and diagnostic data. It includes an XML file, an image of the device, an icon image, and the manufacturer’s logo.

  • Page 6: Procedure

    Balluff USB IO-Link master (silver box with part number BNI USB-901-000- A501) as shown in Figure 2. Connect the MAXREFDES36# proximity sensor board to the other side of the yellow IO-Link cable. Make sure the green LED is lit as shown in Figure 2.
  • Page 7 MAXREFDES36# IO-Link 16-Channel Digital Input Hub Quick Start Guide 6. Choose the default installation folder and press the Next button.
  • Page 8 MAXREFDES36# IO-Link 16-Channel Digital Input Hub Quick Start Guide 7. Press the Next button.
  • Page 9 MAXREFDES36# IO-Link 16-Channel Digital Input Hub Quick Start Guide 8. Change the language to English if applicable. 9. Close the program by clicking the X in the top right corner.
  • Page 10 MAXREFDES36# IO-Link 16-Channel Digital Input Hub Quick Start Guide 10. Press the Close button to complete the installation.
  • Page 11 MAXREFDES36# IO-Link 16-Channel Digital Input Hub Quick Start Guide 11. Verify the version of the IO-Link Device Tool. In this case, version 2.1.11 was used.
  • Page 12 MAXREFDES36# IO-Link 16-Channel Digital Input Hub Quick Start Guide 12. The User Login should be in Specialist mode. Password is special.
  • Page 13 MAXREFDES36# IO-Link 16-Channel Digital Input Hub Quick Start Guide 13. Import the IODD xml file for the Maxim device. In this case, the file is Maxim-SanFrancisco-20140127-IODD1.0.1.xml and can be located in the RD36_RL78_V01_00.ZIP file.
  • Page 14 MAXREFDES36# IO-Link 16-Channel Digital Input Hub Quick Start Guide 14. In this case, this is the IODD file shown below, but may be a different .xml file if a different Maxim device is used.
  • Page 15 MAXREFDES36# IO-Link 16-Channel Digital Input Hub Quick Start Guide 15. See the Maxim device show up in the IO-Link devices in the Catalog window.
  • Page 16 MAXREFDES36# IO-Link 16-Channel Digital Input Hub Quick Start Guide 16. Select File | Properties.
  • Page 17 MAXREFDES36# IO-Link 16-Channel Digital Input Hub Quick Start Guide 17. After Properties is selected, the screen looks like the below screenshot. 18. Verify that the USB cable is plugged into the silver USB IO-Link Master box.
  • Page 18 MAXREFDES36# IO-Link 16-Channel Digital Input Hub Quick Start Guide 19. Drag the Balluff USB IO-Link Master to the Topology window.
  • Page 19 MAXREFDES36# IO-Link 16-Channel Digital Input Hub Quick Start Guide 20. Drag the Maxim sensor to the Name field in the Common window.
  • Page 20 MAXREFDES36# IO-Link 16-Channel Digital Input Hub Quick Start Guide 21. Verify a picture of the device shows up with the name Maxim San Francisco Demo.
  • Page 21 MAXREFDES36# IO-Link 16-Channel Digital Input Hub Quick Start Guide 22. Press the Connect button on the Balluff IO-Link Device Tool software.
  • Page 22 MAXREFDES36# IO-Link 16-Channel Digital Input Hub Quick Start Guide 23. If your device has a problem or is unconnected, you will see the below figure. Please check that your device is connected to the IO-Link master.
  • Page 23 MAXREFDES36# IO-Link 16-Channel Digital Input Hub Quick Start Guide 24. If you see the green Online indication on the software, the device has connected. Click on the Maxim device icon to make the tabs show up. Click on the Process Data tab.
  • Page 24 MAXREFDES36# IO-Link 16-Channel Digital Input Hub Quick Start Guide 25. Connect a wire from the 24V terminal block to the INPUT terminal block (digital input 1) as shown in the figure below.
  • Page 25 MAXREFDES36# IO-Link 16-Channel Digital Input Hub Quick Start Guide 26. Verify that the Process Data for Digital Input 1 changes to true.

  • Page 26: Appendix A: Project Structure And Key Filenames

    MAXREFDES36# IO-Link 16-Channel Digital Input Hub Quick Start Guide 5. Appendix A: Project Structure and Key Filenames 6. Trademarks IO-Link is a registered trademark of ifm electronic GmbH. Windows is a registered trademark and registered service mark of Microsoft Corp.

  • Page 27: Revision History

    MAXREFDES36# IO-Link 16-Channel Digital Input Hub Quick Start Guide 7. Revision History REVISION REVISION PAGES DESCRIPTION NUMBER DATE CHANGED 5/14 Initial release —...
