2-3

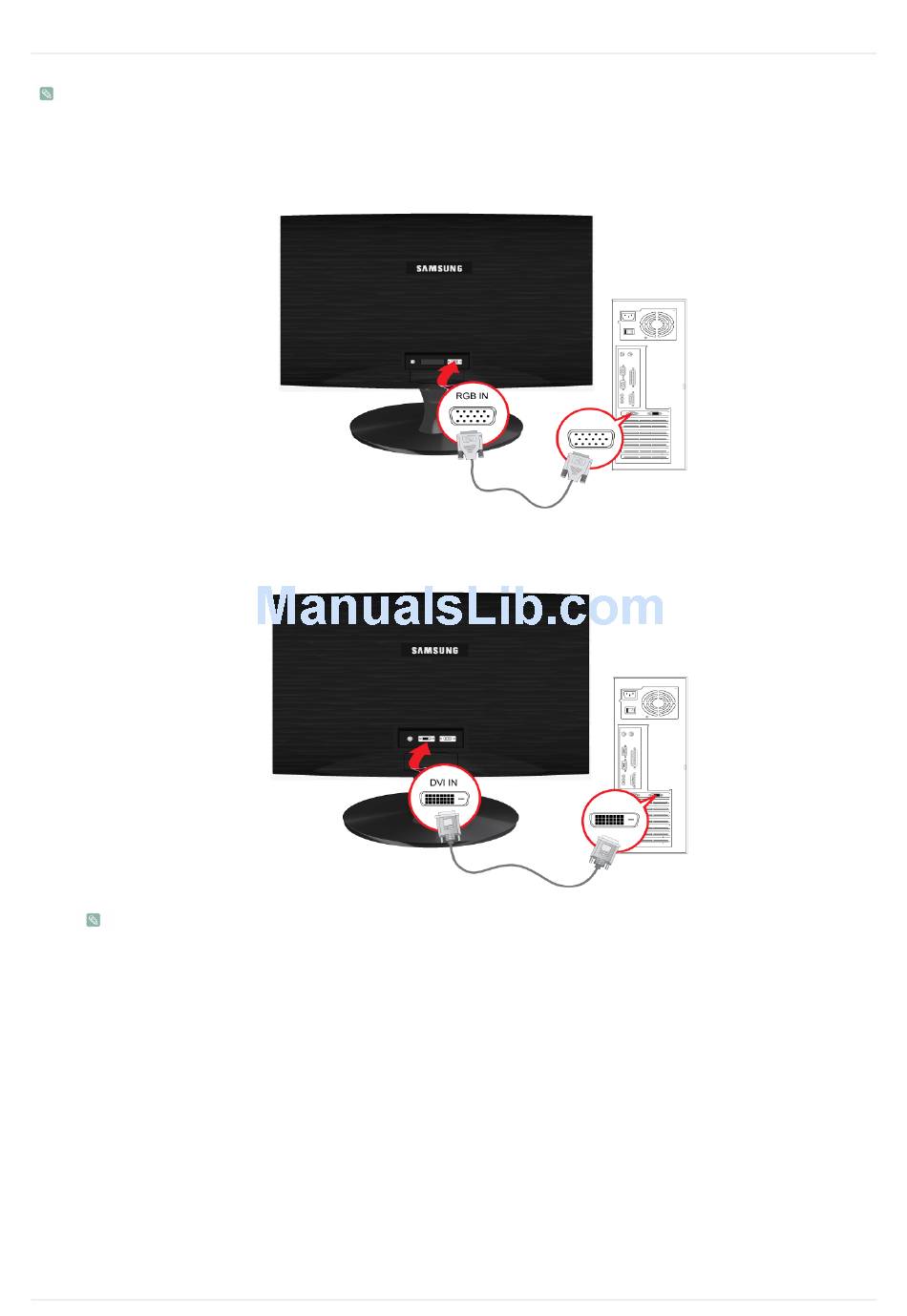

Connecting with a PC
The connecting part may differ depending on the product model.
1. Connect the product to a PC depending on the video output supported by the PC.
•
When the graphics card provides D-Sub (<Analog>) output
•
Connect the [RGB IN] port of the product to the [D-Sub] port of the PC with the D-Sub cable.
•
When the graphics card provides DVI(<Digital>) output
•
Connect the [DVI IN] port of the product to the [DVI] port of the PC with the DVI cable.
The [DVI IN] terminal is supplied for the digital (DVI)-dedicated models only.
2-3
