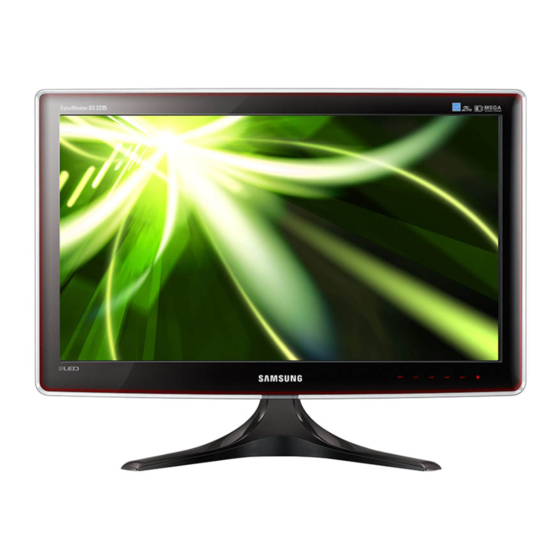

SyncMaster BX2035/BX2235/BX2335 LCD Monitor User Manual The color and the appearance may differ depending on the product, and the specifications are subject to change without prior notice to improve the performance. -
Page 2: Table Of Contents
Power Saving Function ........6-2 Contact SAMSUNG WORLDWIDE ......6-3 Correct Disposal of This Product (Waste Electrical &... -
Page 3: Major Safety Precautions
The contents of this manual may not be partially or in whole reproduced, distributed or used in any form without the written permission of Samsung Electronics, Co., Ltd. The SAMSUNG logo and SyncMaster are the registered trademarks of Samsung Electronics, Co., Ltd. Microsoft, Windows and Windows NT are the registered trademarks of Microsoft Corporation. -
Page 4: Custody And Maintenance
Custody and Maintenance External Surface and Screen Maintenance Clean the product with a soft dry cloth. • Do not clean the product with an inflammable substance such as benzene or thinner or with a wet cloth. This may result in a problem with the product. -
Page 5: Safety Precautions
Safety Precautions Icons used for safety precautions ICON NAME Warning Caution Meaning of Signs Do not perform. Do not disassemble. Do not touch. Power Related The product image used in the following pictures for your reference may look different from the actual product. Warning Avoid using a damaged power cord or plug or a loose power outlet. -
Page 6: Installation Related
Caution Avoid unplugging the power plug while the product is operating. • Otherwise, it may damage the product due to electric shock. When unplugging the power plug from the wall outlet, make sure to hold it by the plug and not by the cord. •... -
Page 7: Cleaning Related
Avoid installing the product in a location exposed to dust, moisture (sauna), oil, smoke or water (rain drops) and installing it within a vehicle. • This may result in electric shock or fire. Avoid installing the product at an easily reachable height where children may reach •... -
Page 8: Usage Related
Before cleaning the product, unplug the power cord. • Otherwise, it may result in electric shock or fire. Caution Avoid spraying cleansing agent directly onto the product. • This may result in discoloration or cracking of the exterior of the product or the panel coming off. - Page 9 When thunder or lighting occurs, unplug the power cord and under no circumstance touch the antenna cable as this is danger- ous. • Otherwise, it may result in electric shock or fire. Avoid moving the product by pulling the power cord or antenna cable. •...
- Page 10 Do not place the adapter on top of another adapter. • Otherwise, it may result in fire. Remove the vinyl cover of the adapter before using the adaptor. • Otherwise, it may result in fire. Be careful that adaptor should not be in contact with water and therefore not be wet.
-
Page 11: Installing The Product
Installing the Product Package Contents • Unpack the product and check if all of the following contents have been included. • Store the packaging box in case you need to move the Product at a later stage. Installation Manual (Not available in all locations) Power Cord DVI Cable The cleaning cloth is supplied with black high-glossy models only. -
Page 12: Installing The Stand
Installing the Stand Before assembling the product, place the product down on a flat and stable surface so that the screen is facing downwards. Disassembly is in the reverse order of the assembly. Place a soft cloth over the table to protect the product and place the product onto the cloth so that the front of the product is facing downwards. -
Page 13: Connecting With A Pc
Connecting with a PC The connecting part may differ depending on the product model. 1. Connect the product to a PC depending on the video output supported by the PC. • When the graphics card provides D-Sub (<Analog>) output • Connect the [DVI IN] port of the product to the [D-Sub] port on your PC using the DVI-A to D-Sub cable. -
Page 14: Kensington Lock
Kensington Lock A Kensington Lock is an anti-theft device that enables users to lock the product so that they can safely use it in public locations. Since the shape and usage of the locking device may differ depending on the model and the manufacturer, for more information, refer to the User Manual supplied with the locking device for more information. -
Page 15: Using The Product
Using the product Setting the Optimal Resolution If you turn the power on after purchasing the product, a message regarding the optimal resolution setting appears on the screen. Select a language and the optimal resolution. • The message appears up to 3 times if the resolution has not been set to the optimal resolution. •... -
Page 16: Standard Signal Mode Table
Standard Signal Mode Table The LCD monitor has one optimal resolution for the best visual quality depending on the screen size due to the inherent characteristics of the panel, unlike for a CDT monitor. Therefore, the visual quality will be degraded if the optimal resolution is not set for the panel size. It is recommended setting the resolution to the optimal resolution of the product. - Page 17 HORIZONTAL DISPLAY MODE FREQUENCY (KHZ) IBM, 640 x 350 31.469 IBM, 720 x 400 31.469 MAC, 640 x 480 35.000 MAC, 832 x 624 49.726 MAC, 1152 x 870 68.681 VESA, 640 x 480 31.469 VESA, 640 x 480 37.861 VESA, 640 x 480 37.500 VESA, 800 x 600...
- Page 18 HORIZONTAL DISPLAY MODE FREQUENCY (KHZ) IBM, 720 x 400 31.469 MAC, 640 x 480 35.000 MAC, 832 x 624 49.726 MAC, 1152 x 870 68.681 VESA, 640 x 480 31.469 VESA, 640 x 480 37.861 VESA, 640 x 480 37.500 VESA, 800 x 600 35.156 VESA, 800 x 600...
-
Page 19: Installing The Device Driver
If you install the device driver, you can set up the appropriate resolution and frequency for the product. The device driver is included on the CD-ROM supplied with the product. If the supplied drive file is corrupted, please visit a service center or Samsung Electronics website(http://www.samsung.com/), and download the driver. 1. Insert the driver installation CD-ROM into the CD-ROM drive. -
Page 20: Product Operating Buttons
Product Operating Buttons Product Operating Buttons ICON MENU Press this button to view the On Screen Display (OSD). This button is also used to exit the OSD or to return to a higher-level OSD menu * OSD Adjustment Lock This function locks the OSD in order to maintain the current settings or to prevent the settings from being changed by another person On: If you press and hold the MENU button down for 5 seconds, the OSD Adjustment Lock function is activated. - Page 21 ICON AUTO Press [AUTO] button to adjust the screen settings automatically. If the resolution settings are changed in the Display Properties, the AUTO adjustment func- tion is performed. Press this button to turn the product on or off Power LED This LED is turned on when the product works normally.
-
Page 22: Using The Screen Adjustment Menu (Osd: On Screen Display)
Using the Screen Adjustment Menu (OSD: On Screen Display) The Screen Adjustment Menu (OSD: On Screen Display) Structure TOP MENUS Brightness PICTURE Coarse MagicColor COLOR Color Effect H-Position SIZE & POSI- TION Reset SETUP&RESET Off Timer On/Off Display Time INFORMA- TION PICTURE MENU... - Page 23 MENU MagicBright Provides preset picture settings optimized for various user environments such as editing a document, surfing the Internet, playing games, watching sports or movies and so on. • <Custom> If the preset picture modes are not sufficient, users can configure the <brightness> and <Contrast>...
- Page 24 MENU Coarse Removes vertical noise lines (line pattern) from the screen. The location of the screen may be changed after the adjustment. In this case, move the screen so that the screen is displayed at the center of the display panel using the <H-Position> menu. This function is only available in Analog mode.
-
Page 25: Size & Position
MENU MagicColor Expresses natural colors more clearly without changing the picture quality using proprietary digital picture quality improvement technology developed by Samsung Electronics. • <Off> - Turns the MagicColor function off. • <Demo> - You can compare the pictures processed by MagicColor with the original pictures. - Page 26 MENU H-Position Moves the position of the display area on the screen horizontally. • This function is only available in Analog mode. • When TV signal is input in AV mode ,select <Screen Fit >to adjust horizontal position in 0-6 levels.
- Page 27 MENU Reset Use this function to restore the visual quality and color settings to the factory defaults. • <No> - <Yes> Language Select a language for the OSD. The selected language is only applied to the product OSD. This setting does not affect the other functions of the PC.
- Page 28 INFORMATION MENU DESCRIPTION INFORMATION Shows the frequency and resolution set on the PC. Using the product...
-
Page 29: Installing The Software
What is Natural Color ? This software works only for Samsung products and enables adjusting the displayed colors on the product and matches the colors on the product with the colors of the printed pictures. For more information, refer to the online help of the software (F1). -
Page 30: Magictune
MagicTune What is MagicTune? MagicTune is a software program that helps with monitor adjustments by providing comprehensive descriptions of monitor functions and easy-to-understand guidelines. Users can adjust the product with the mouse and the keyboard without using the operating buttons of the product. Installing the Software 1. - Page 31 3. In the [Add/Remove] window, find and select MagicTune™so that it is highlighted. 4. Click [Change or Remove Programs] to remove the software. 5. Select [Yes] to start removing MagicTune™. 6. Wait until a message box appears informing you that the software has been removed completely. For technical support, the FAQ (frequently asked questions) or information about the software upgrade for MagicTune™, please visit our website.
-
Page 32: Multiscreen
MultiScreen What is MultiScreen ? MultiScreen enables users to use the monitor by partitioning multiple sections. Installing the Software 1. Insert the installation CD into the CD-ROM drive. 2. Select the MultiScreen setup program. If the pop-up screen for the software installation does not appear on the main screen, find and double-click the MultiScreen setup file on the CD-ROM. -
Page 33: Troubleshooting
Troubleshooting Monitor Self-Diagnosis • You can check if the product is working properly using the Self-Diagnosis function. • If a blank screen is displayed and the Power LED blinks even if the product and the PC are properly connected, perform the self-diagnosis function according to the procedures below. -
Page 34: Before Requesting Service
Before Requesting Service Please check the following before requesting After-Sales service. If the problem continues, please contact your nearest Samsung Electronics Service Center. A BLANK SCREEN APPEARS / I CANNOT TURN THE PRODUCT ON Is the power cord connected properly? Is the <Check Signal Cable>... - Page 35 Did you change the resolution and the frequency appropriate to the product? THE COLOR IS DISPLAYED IN 16 BIT (16 COLORS). THE COLOR HAS BEEN CHANGED AFTER CHANGING THE Did you install the device driver for the product? Is the graphics card configured correctly? WHEN I CONNECT THE MONITOR, THE 'UNKNOWN MONITOR, PLUG&PLAY (VESA DDC) MONITOR FOUND' Did you install the device driver for the product? Check if all the Plug&Play (VESA DDC) functions are sup-...
-
Page 36: Faq
FAQ! How can I change the frequency (refresh rate) of the video signal? How can I change the resolution? How can I use the power saving function? PLEASE TRY THE FOLLOWING! You have to change the frequency of the graphics card. Windows XP : Change the frequency by selecting Control Panel →... -
Page 37: More Information
More Information Specifications MODEL NAME LCD Panel Size Display area Pixel Pitch Synchroniza- Horizontal tion Vertical Display Color Resolution Optimum resolution Maximum resolution Input Signal, Terminated Maximum Pixel Clock Power Supply Signal Cable Dimensions (WxHxD) / Weight (Simple stand) Environmen- Operating tal consider- ations... - Page 38 MODEL NAME Input Signal, Terminated Maximum Pixel Clock Power Supply Signal Cable Dimensions (WxHxD) / Weight (Simple stand) Environmen- Operating tal consider- ations Storage Tilt DVI(Digital Visual Interface)- I 0.7 Vp-p ± 5% separate H/V sync, Composite, SOG TTL level (V high ≥ 2.0V, V low ≤ 0.8V) 164MHz (Analog,Digital) This product supports 100-240 V.Since the standard voltage may differ from country to country, please check the label on the back of the product.
- Page 39 MODEL NAME LCD Panel Size Display area Pixel Pitch Synchroniza- Horizontal tion Vertical Display Color Resolution Optimum resolution Maximum resolution Input Signal, Terminated Maximum Pixel Clock Power Supply Signal Cable Dimensions (WxHxD) / Weight (Simple stand) Environmen- Operating tal consider- ations Storage Tilt...
-
Page 40: Power Saving Function
Power Saving Function This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor to low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. -
Page 41: Contact Samsung Worldwide
Contact SAMSUNG WORLDWIDE • If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. U.S.A CANADA MEXICO ARGENTINA BRAZIL CHILE COLOMBIA COSTA RICA ECUADOR EL SALVADOR GUATEMALA HONDURAS JAMAICA NICARAGUA PANAMA PUERTO RICO REP. - Page 42 0,10/Min) 815-56 480 0 801 1SAMSUNG (172678) 022 - 607 - 93 - 33 80820 - SAMSUNG (726-7864) 0800-SAMSUNG(726-7864) 902 - 1 - SAMSUNG (902 172 678) 0771 726 7864 (SAMSUNG) 0848-SAMSUNG(7267864, CHF 0.08/ min) 0845 SAMSUNG (7267864) 0-800-05-555 088-55-55-555...
- Page 43 U.A.E More Information ASIA PACIFIC 3030 8282 1800 110011 1800 3000 8282 1800 266 8282 0800-112-8888 021-5699-7777 0120-327-527 1800-88-9999 0800 SAMSUNG (0800 726 786) 1-800-10-SAMSUNG(726-7864) 1-800-3-SAMSUNG(726-7864) 1-800-8-SAMSUNG(726-7864) 02-5805777 1800-SAMSUNG(726-7864) 0800-329-999 1800-29-3232 02-689-3232 1 800 588 889 MIDDLE EAST & AFRICA...
-
Page 44: Correct Disposal Of This Product
Correct Disposal of This Product (Waste Electrical & Electronic Equipment) - Europe only (Applicable in the European Union and other European countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life.
