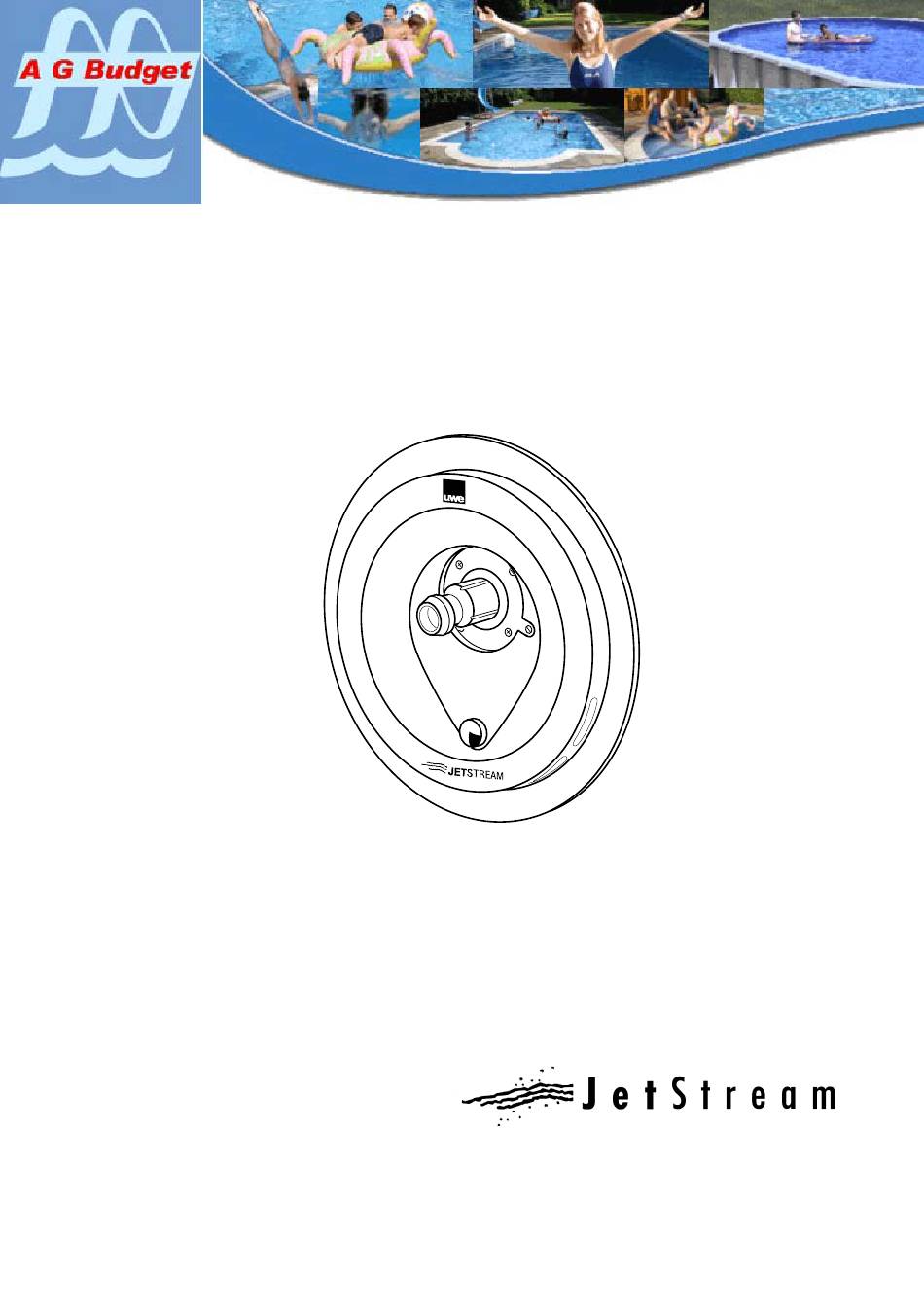

- Page 1 Luxury Swimming Pool Equipment at Budget Prices Eurojet Swimjet Instructions INSTALLATION AND OPERATING INSTRUCTIONS EuroJet...
-
Page 2: Table Of Contents
Warning! The JETSTREAM system forces up to 700 litres of water per minute into the pool through the nozzle. If all of this enormous force is used for massage, it can cause injuries to muscles and to connective tissue, as well as internal injuries. -
Page 3: Safety Instructions
Therefore, you must definitely observe the following Safety Instructions: The JETSTREAM has substantial power. Before massage, you must definitely reduce the pressure. Do not utilize full thrust against soft parts of the body. Switch off pump before adjusting angle of nozzle. -
Page 4: Installing The Wall Niche In Concrete Shuttered Pools
INSTALLING THE WALL NICHE IN CONCRETE SHUTTERED POOLS Installation (fig. 1) Position the wall niche ensuring that the read label “Oben” (top) is on top. Viewed from inside the pool, the suction duct is on the vertical middle axis above the center of the housing, the pressure duct at the bottom on the right side. - Page 5 Installing the wall niche in steel, aluminium and polyester pools air inlet tube for air suction end part to be water level water level installed 5 - 10 cm above water level 45° label air inlet protective sleeve for pneumatic tube nozzle center line clamping frame gasket...
-
Page 6: Final Assembly Instrucions
FINAL ASSEMBLY INSTRUCIONS INSTRUCIONS FOR AUTHORIZED PERSONS ONLY Before installation The safety instructions must be read carefully before installation. You must definitely fulfil the requirements stated by the uwe company and by the standars authorities. If the instructions are not observed, the installation engineer shall bear the sole responsibility. - Page 7 Mounting the control panel The control panel must not be installed in a chamber. It should be accommodated either in a dry walkway behind the pool wall or in an adjacent room. The connection must be effected carefully in accordance with EN 60335-2- 41.
-
Page 8: Operation / Information For The User Of The Unit
JetStream EuroJet Installation in concrete pools dimensions in cm OPERATION / INFORMATION FOR THE USER OF THE UNIT 4.1 Before starting Safety precautions and operating instructions must be carefully read and observed before setting up and operating. 4.2. First time operation Before operating, local safety requirements must be met and safety precautions must be observed. -
Page 9: Starting The Unit
Before swivelling the nozzle, you must definitely switch the unit off. 4.4 Strength of the jet The JETSTREAM has considerable energy, therefore reduce the setting! The strength of the jet is reduced by turning the nozzle head (3) clockwise. Note that a small flow will always occur thus preventing damage to the pump. -
Page 10: Swimming Against The Current
• Back massage Massaging the back by means of the massage hose without the assistance of another person is very difficult. Therefore, use the special nozzle for back massage; you attach this to the jet nozzle in the same way as you attach the massage hose. -
Page 11: Fitting Instruction For Handgrips
Ø 8 nozzle gasket wall plug fixing screw JETSTREAM prefab. pools: mark the two hand grips are identical additional drills Ø 7 and can be interchanged dimensions in mm Fitting in steel, aluminium or polyester pools... -
Page 12: Information For The Electrician
INFORMATION FOR THE ELECTRICIAN 7.1 Notes about connection of the pool pumps JETSTREAM COCO 2,5 kW and COCO 3,5 kW (version without illumination) for threephase 3 N ~ 400 V 50 Hz This affects your safety! Therefore, perform all work carefully in accordance with the regulations EN-60335-2-41. You must definitely observe the safety instructions and the requirements stated by the standards authorities. - Page 13 Wiring diagramm for JETSTREAM EuroJet, BAMBO2, BAMBO, COCO Wiring diagramm for JETSTREAM, EuroJet, BAMBO2, BAMBO, COCO (versions without illumination), JUNO, LIBRA 3-5, LIDO, LIDO 2, VIVA (versions without illumination), JUNO, LIBRA 3-5, LIDO, LIDO 2, with pneumatic switch 3N ~ PE 400 V...
