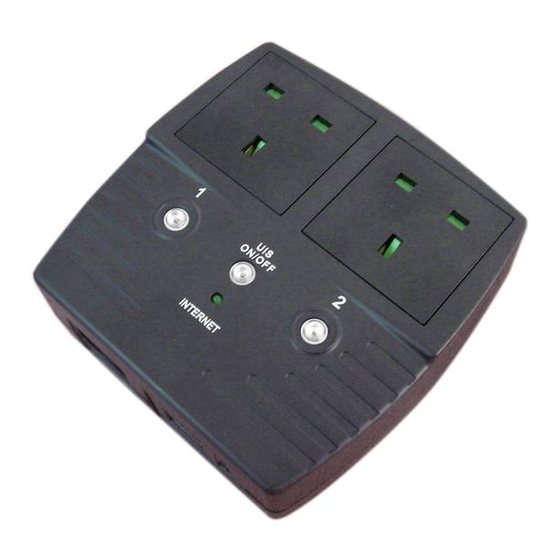

MSNswitch UIS-322b Quick Installation Manual

Part 1. Hardware Setup....................................................................
1
Step 1: Connect the power
cord to device and wall outlet.
3
Step 3: Connect LAN cable
from Router. The internet
LED will blink to show
internet is on-line.
Press UIS on/off only when Internet LED is blinking. If Internet LED is OFF, pressing
!
button may result in unit performing outlet reset.
Part 2. Description ...........................................................................
Detachable IEC socket
main power cord
Fuse box (spare
10A fuse inside)
LAN port
USB charging
port 5V, 500mA
Green LED indicator
Blinking
ON
OFF
To Reset to Factory Default: Press UIS On/Off, Outlet 1 and Outlet 2 button for a few
!
minutes. All three LED light will blink, release buttons.
2
Step 2: Connect the router
power plug to an outlet.
4
Step 4: Press and hold (2
seconds) UIS On/Off button
to activate internet protection.
Outlet buttons,
long press
On/Off
(Default: On)
UIS ON/OFF
button
Internet
Green LED
indicator
Description
Internet is online
System is currently in protect mode
No internet connection
Usage #1: MSNswitch setup to perform automatic reset of router and
modem. No software setup required (see Part 1).
MSNswitch
Power
input
Line
Model:
UIS-322b
LAN LAN
LAN
Router / Hub
Local user
Usage #2: MSNswitch setup as watch-dog to keep internet device
alive. Software setup required (see Part 3).
Server
Power
Power LAN
input
input
Line
Line
MSNswitch
LAN
Router / Hub
Usage #3: MSNswitch setup to remote control electrical devices.
Software setup required (see Part 3).
Power
Power
input Line
input Line
LAN
LAN
Router / Hub
Local user
Part 3: Software & Web Setup........................................................
For advanced user, MSNswitch can be customized for alternate usage
and configured for remote access.
To access the Web User Interface for customization;
Step 1: While in the same LAN as the
device, open a browser and type
http://MSNswitch or run Netility (see
Part 5).
Step 2: A dialog box appears.
Username: admin
Password: (field is left blank)
2
Power
WWW
input
Line
WAN
xDSL / cable /
3.5G modem
LAN
NAS IP Cam
LAN
Power
input
Line
LAN
LAN
Electrical
WWW
Device
WAN
WAN
DSL modem
LAN
Remote user
1
