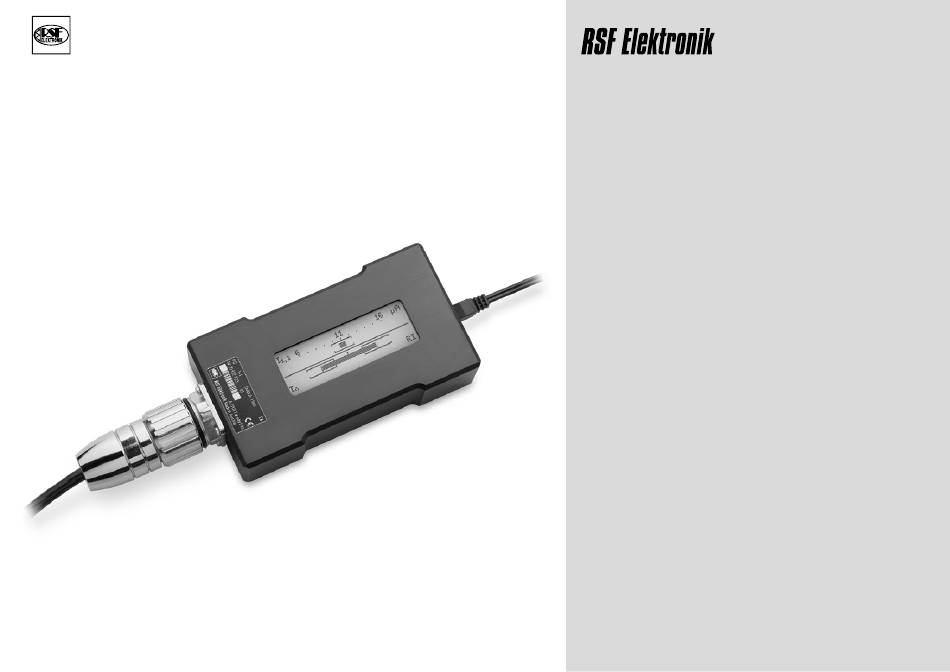

- Page 1 BETRIEBSANLEITUNG OPERATING INSTRUCTIONS PG1-I Elektronische Anbauhilfe Electronic Set-up Box Ausgabe 07/2015 Art.Nr. 807708-01 Dok.Nr. D807708-01-A-01 ...
- Page 2 Adapterkabel benötigt. Depending on the type of the linear encoder an appropriate adapter cable is needed. Im Display der PG1-I wird die Qualität der Mess- signale und des Referenzimpulses (RI) in Form In the display of the PG1-I the quality of von Anzeigebalken dargestellt.
- Page 3 Too many reference marks (> RI) – gaps in the evaluation. Scanning frequency too high (F) – No measurement possible! The software can measure and display approx. 10 RI/sec. the measurements RI and amplitude are very imprecise. RSF Elektronik Ges.m.b.H. A-5121 Tarsdorf +43 (0)6278 / 8192-0 +43 (0)6278 / 8192-79 e-mail: info@rsf.at Internet: www.rsf.at...
