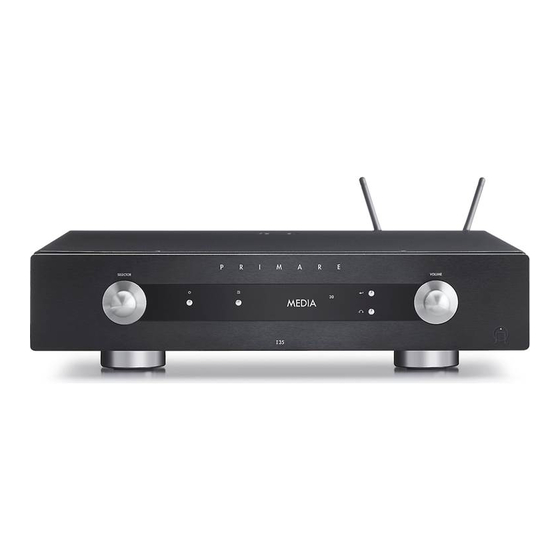

Primare Prisma i35 Quick Start Manual

Primare Prisma

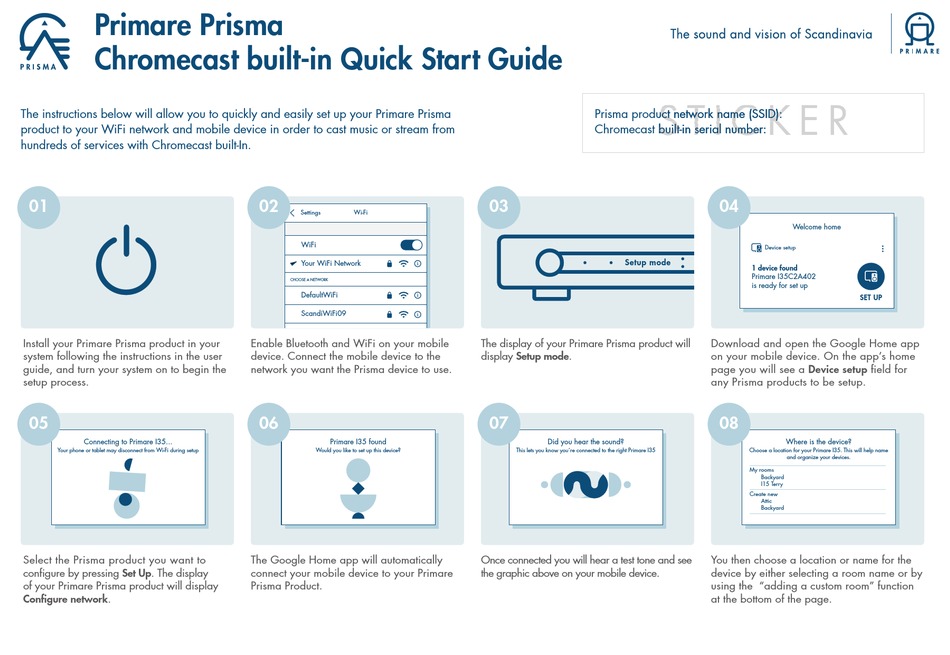

Chromecast built-in Quick Start Guide
The instructions below will allow you to quickly and easily set up your Primare Prisma
product to your WiFi network and mobile device in order to cast music or stream from
hundreds of services with Chromecast built-In.
01
Install your Primare Prisma product in your
system following the instructions in the user
guide, and turn your system on to begin the
setup process.
05
Connecting to Primare I35...
Your phone or tablet may disconnect from Wi-Fi during setup
Select the Prisma product you want to
confi gure by pressing Set Up. The display
of your Primare Prisma product will display
Confi gure network.
02
Settings Wi-Fi
WiFi
Your WiFi Network
CHOOSE A NETWORK
DefaultWiFi
ScandiWiFi09
Enable Bluetooth and WiFi on your mobile
device. Connect the mobile device to the
network you want the Prisma device to use.
06
Primare I35 found Primare I35 found
Would you like to set up this device? Would you like to set up this device?
The Google Home app will automatically
connect your mobile device to your Primare
Prisma Product.
S T I C K E R S T I C K E R S T I C K E R
Prisma product network name (SSID): Prisma product network name (SSID): Prisma product network name (SSID):
Chromecast built-in serial number: Chromecast built-in serial number: Chromecast built-in serial number:
03
Setup mode
The display of your Primare Prisma product will
display Setup mode.
07
Did you hear the sound? Primare I35 found
This lets you know you´re connected to the right Primare I35 Would you like to set up this device?
Once connected you will hear a test tone and see
the graphic above on your mobile device.
04
Welcome home
Device setup
1 device found
Primare I35C2A402
is ready for set up
SET UP
Download and open the Google Home app
on your mobile device. On the app's home
page you will see a Device setup fi eld for
any Prisma products to be setup.
08
Where is the device?
Choose a location for your Primare I35. This will help name
and organize your devices.
My rooms
Backyard
I15 Terry
Create new
Attic
Backyard
You then choose a location or name for the
device by either selecting a room name or by
using the "adding a custom room" function
at the bottom of the page.
