R27-HW - 2 Zone Programmer
Contents
1.
Factory default settings
2.
Speci cations & wiring
3.
Master reset
1. Factory default settings
Contacts:
230 Volt contacts
Program:
5/2D
Backlight:
On
Keypad:
Unlocked
Frost Protection:
O
Clock type:
24 Hr Clock
Day-Light Saving

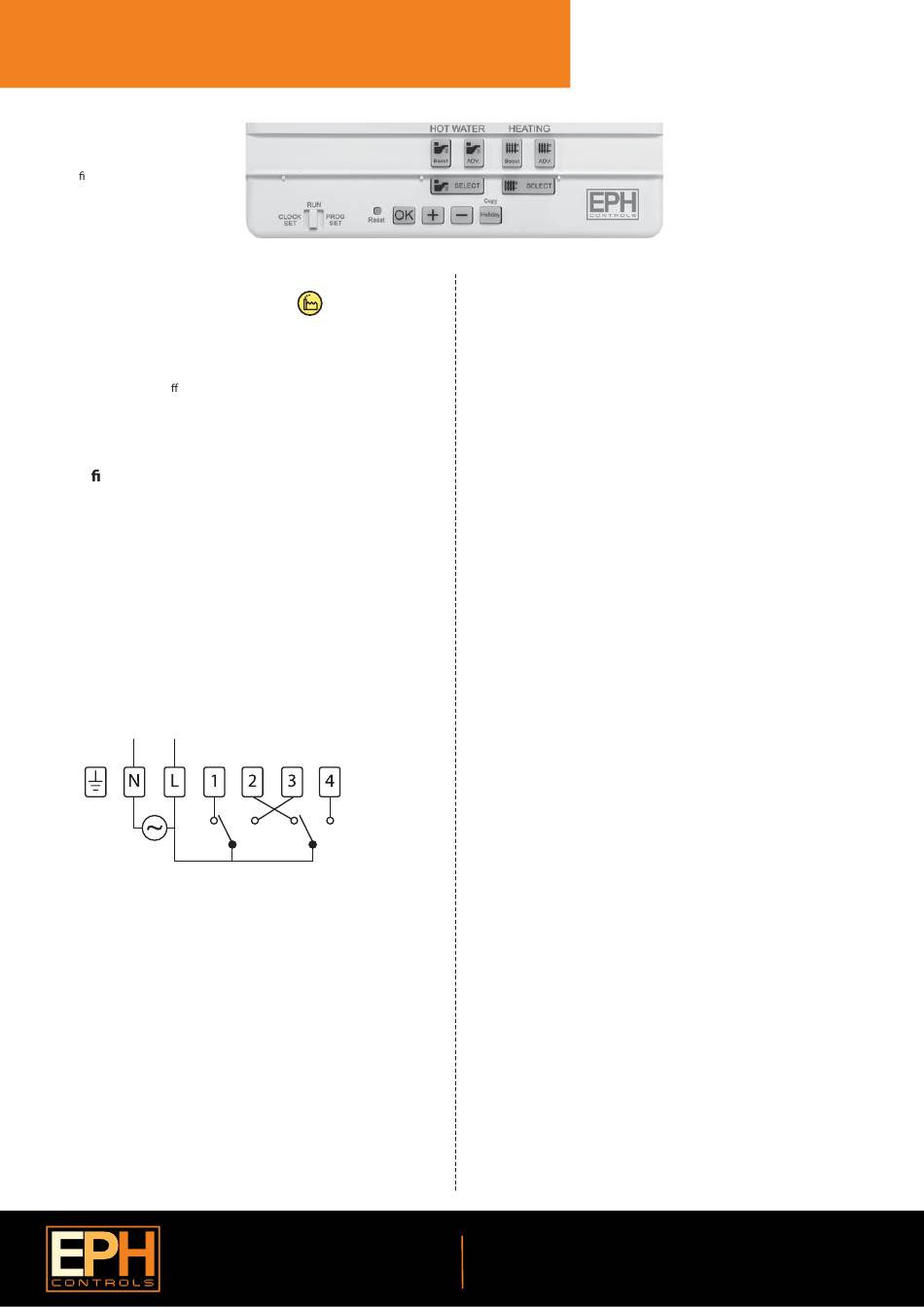

2. Speci cations & wiring
Power Supply:
230 Vac
Ambient Temp:
0~35°C
Contact Rating:
250 Vac 3A(1A)
Program Memory
backup:
1 year
Battery:
3Vdc Lithium LIR 2032
Backlight:
Blue
IP rating:
IP20
Backplate:
British System Standard
Pollution degree 2:
Resistance to voltage surge 2000V
as per EN 60730
Automatic Action:
Type 1.S
Software:
Class A
HW
OFF
200-240Vac
50Hz-60Hz
3. Master reset
Lower the cover on the front of the programmer. There are four hinges
holding the cover in place.
Between the 3rd and 4th hinges there is a circular hole. Insert a ball point
pen or similar object to master reset the programmer.
After pressing the master reset button, the date and time will now need to
be reprogrammed.
CH
HW
CH
OFF
ON
ON
CONTACT RATING: 250Vac~/3(1)A
EPH Controls Ireland
sales@ephcontrols.com www.ephcontrols.com
Page 2 of 2
Installation Instructions
For use in normal environments.
EPH Controls UK
sales@ephcontrols.co.uk www.ephcontrols.co.uk
20180621_R27-HW_InsIns_JW
