CubiScan 125 Quick Reference Manual

CUBISCAN 125 OPERATION
QUICK REFERENCE GUIDE
This quick reference guide provides an overview and instructions for operating the Cubiscan 125.
SUMMARY

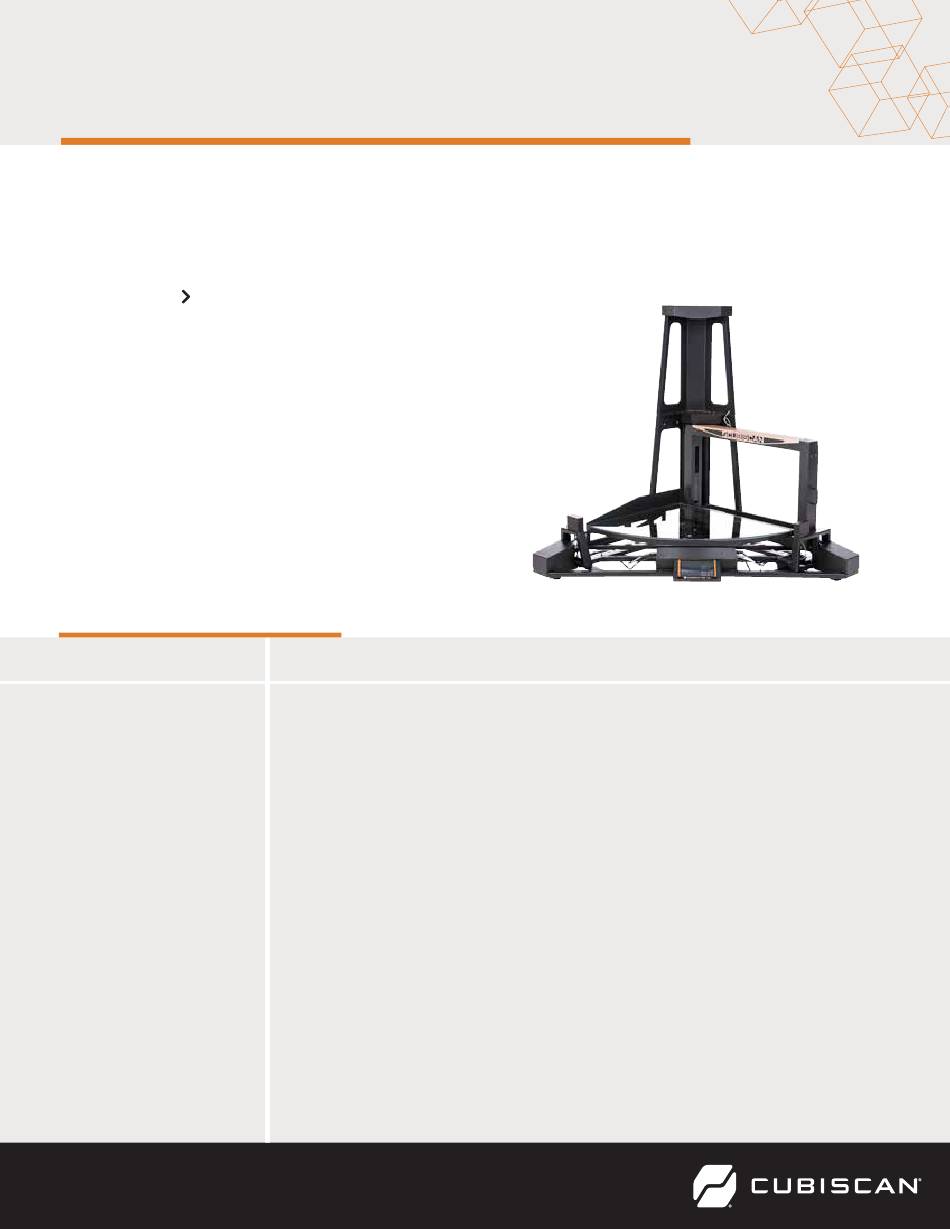

The Cubiscan 125 is a small stationary or portable
cubing system that uses a combination of infrared and
ultrasonic sensing technologies to measure and weigh
parts, SKU's, and boxed items. Infrared sensing
technology is used to create the precision and detail
required to measure small parts and unboxed items,
while ultrasonic technology is used to gather
dimensional data on large, boxed items.
TOUCHSCREEN OVERVIEW
Buttons/Indicators
Length, Width, Height
Weight
Modes
->0<- (indicator)
Ready (indicator)
Home (indicator)
Zero (button)
Measure (button)
Meaning
These display the measured dimensions in inches or centimeters.
This displays the measured weight in pounds (lb) or kilograms (kg).
This displays the modes that have been enabled. The modes available are:
Filter and Compression.
This indicates that the scale platform is empty and ready to receive a
package.
This indicates that the Cubiscan 125 is ready for cubing and weighing.
This indicates that the measuring gate is in the home position (on the
right-hand side).
Tap this key to reset the scale to "zero" (make sure the platform is
empty).
Tap this button to display the weight and dimensions of the object
using the ultrasound sensors (cuboidal objects only).
