Slimline Wall Mounted Tablet Enclosure
Range Instructions
A

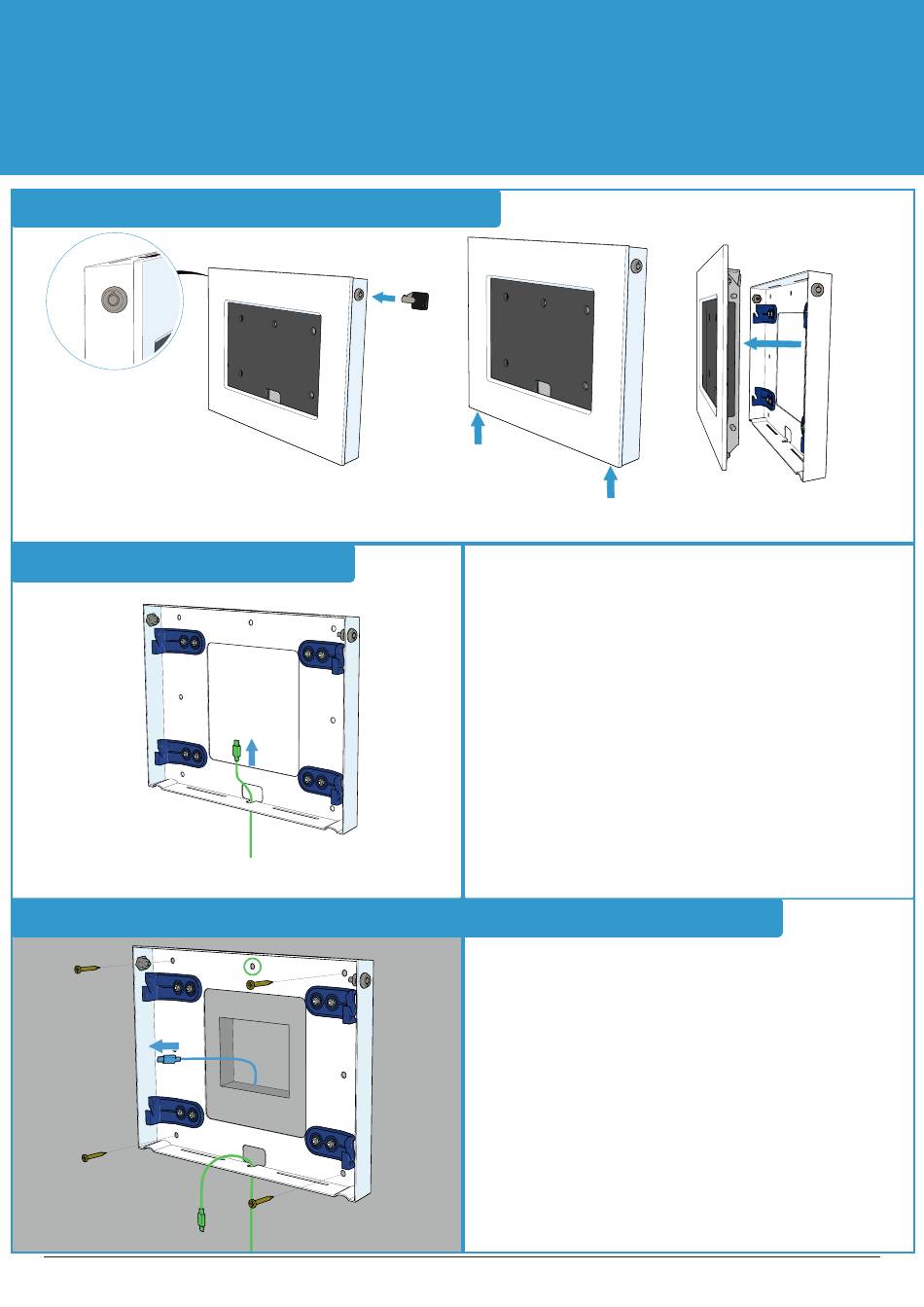

A1 - Removing the Tablet Cassette
Unlock both locks on either side of A using
the keys provided (D)
A2 - Insert Power Cable
A3 - Enclosure Mounting and Cavity Wall Power Cabling

Mounting the Enclosure and Power Cabling

Push up C to release from A.
[Tip: Keep one hand on the enclosure
and one on Cassette]
If using a cavity wall for power supply, skip to
Insert your Tablet's Power Cable through the small cut out in the
back of A and channel into the small cable cut out.
[
Note: Blue Cable showing cable routing for cavity wall installations
Position Rear Enclosure (A) on surface in desired position.
Ensure the unit is level using a spirit level (G).
[Tip: loosely screw in through top centre screw hole, as highlighted, to hold unit in
position]
Screw in remaining screws (F) using E.
[Note: We recommend using at least 4 of the 7 screw holes as shown]
Depending on your chosen surface it may be easier to;
- Mark the centre of the holes with a pencil (H).
- Drill pilot holes and install raw plugs if required.
With C released lift clear of A.
]
