Fox Micron User Manual

ENGLISH

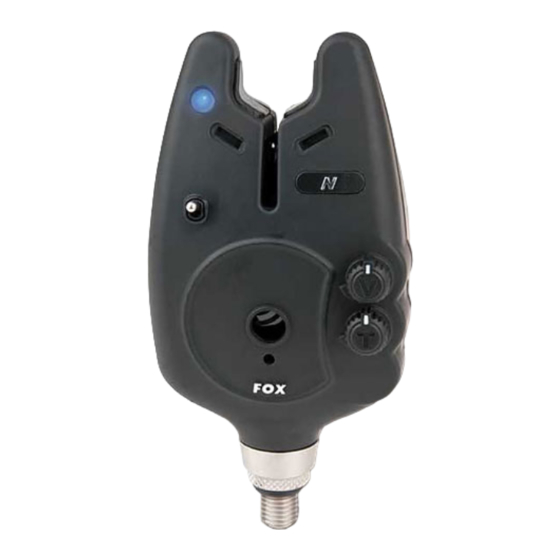

Features
• Weatherproof Sealed Case
• Digital Circuitry
BLUE LED
On / Off
High Quality Cone Speaker
Rigid 3/8" Stainless Steel Thread
Fitting the Batteries
1. Turn off unit prior to fitting or
replacing batteries.
2. Using the supplied screwdriver
unscrew the two battery cover screws.
Switching On / Off
• Push down and release the power switch to activate the unit.
• Push up and release the power switch to deactivate the unit.
(LED will briefly flash red)
Please note:
The unit does not beep when
switched on or off.
• See-Saw Effect Elimination Feature
• Audible & Visual Backdrop Indication
Micro Light Slots
Volume Control
Tone Control
Buzzer Bar Locking Screw
3. Pull the lower tab up to remove
the battery cover.
4. Take care removing the batteries.
Insert new batteries and ensure
correct polarity.
Power Off
Power On
www.foxint.com
MICRON USER GUIDE
• Low Battery Drain
• CNC Machined Rollerwheel - Tru-Run™
D-Tec Sensing System™
(DTSS)
Extension Socket
(2.5mm)
DO NOT over tighten the battery compartment screws,
excessive force will damage the screw threads.
Battery Requirements
The Microns require 2 x LR6 AA 1.5V Alkaline batteries. The use of good quality
batteries is essential for maximum battery life. To reduce the risk of battery leakage:
• DO NOT mix old and new batteries
• DO NOT mix different battery types
• The use of rechargeable batteries is NOT recommended
Buzzer Bar Locking Screw
This allows infinite alignment adjustability for the Micron facing position. If the Micron is
not facing the desired position, unscrew the micron until you can reach the locking screw.
Back the locking screw a quarter to half a turn, then screw the Micron back on.
Battery Cover
Power Out Socket
(2.5mm)
5. For best weatherproofing, ensure
battery cover has a good seal by firmly
pushing the edging of the battery cover.
6. Re-fit cover and screws.
