Boomerang Strap

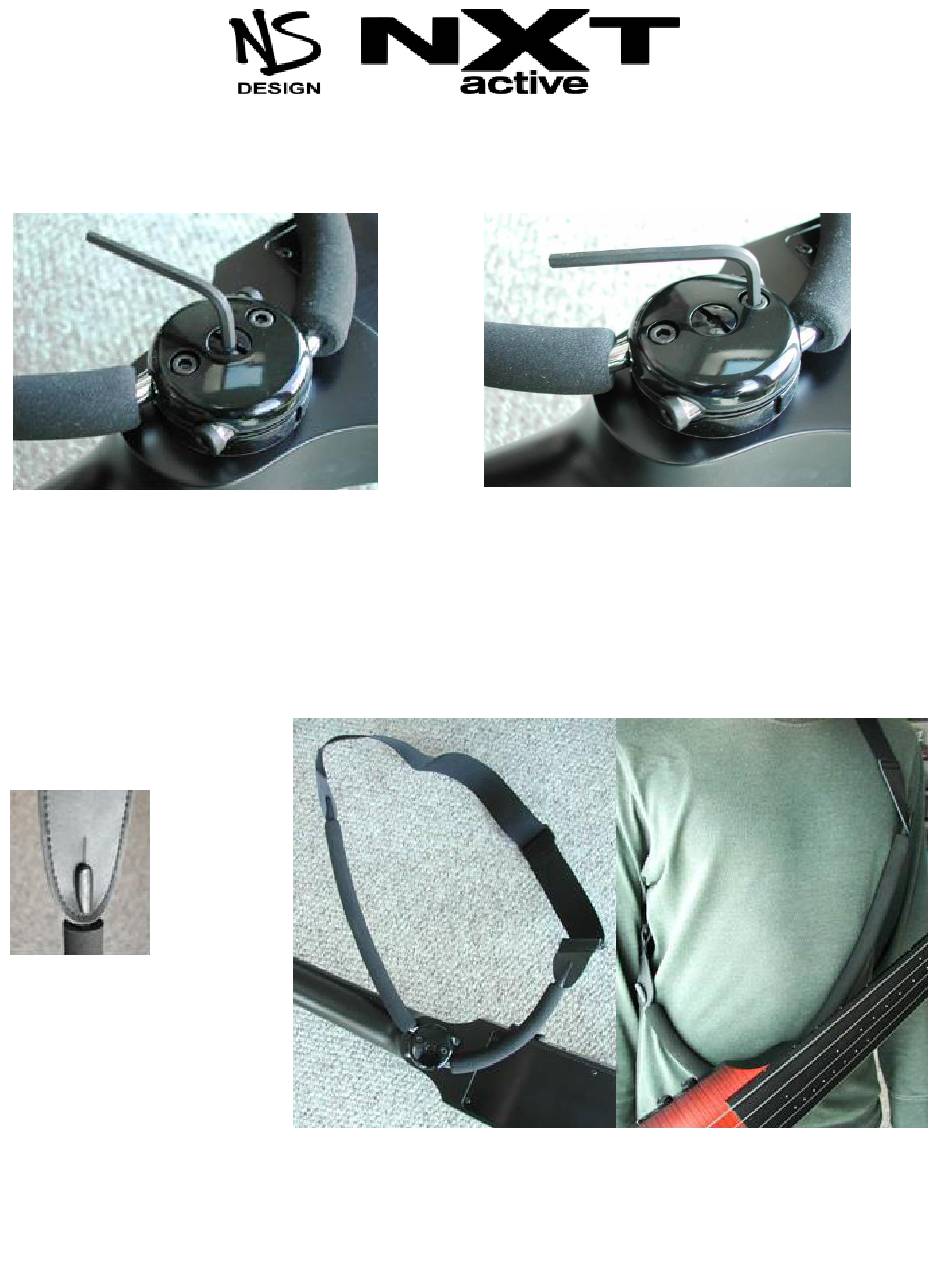

Attachment to the Instrument - The large, thin
washer should be placed between the instrument and
the hub (failure to use the washer can damage the
surface of the instrument). Insert the attachment screw
into the threaded insert on the back of the instrument.
Use a 4 mm hex wrench, flat screwdriver, or coin to
tighten the screw. The hub should be held firmly but
still be able to rotate.
Arm Positioning - Rotate the
arms into position for use, and
attach conventional guitar style
strap to the
ends of the
arms. Place
strap over
the shoulder
like a guitar,
and adjust
the position
of arms and
rotation of the hub to the
desired position for play. The
instrument should remain in
position.
NXTa Omni Bass Instructions
Arms In Playing Position
Adjusting Pivot Friction - To adjust the arm friction,
tighten or loosen the two hex screws in the hub. The
screw closest to the long arm should generally be
tightened more than the other screw, to provide more
friction on the long arm. The hex wrench can be
stored in the hole in the ends of the tubes, but care
must be taken to insure that the hex wrench is not
positioned where it will scratch the instrument when
the arms are moved.
In Use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NXTa Omni Bass and is the answer not in the manual?

Questions and answers

Summary of Contents for ns design NXTa Omni Bass

  • Page 1 NXTa Omni Bass Instructions Boomerang Strap Attachment to the Instrument - The large, thin Adjusting Pivot Friction - To adjust the arm friction, washer should be placed between the instrument and tighten or loosen the two hex screws in the hub. The...
  • Page 2 CONTROLS Volume – rotary control Knob 1 Tone – rotary control, clockwise for full treble, counter-clockwise to cut treble. Knob 2 Dual Output Mode – push-pull control, in for Passive Mode, out for Active Mode. Active Mode – Using the supplied charger, connect the NXTa to any AC outlet for 60 seconds. This will fuel the capacitor-powered active circuit for 16 hours from the time of the charge.
