STAND
Remove the stand from the gig bag. Open and secure the legs
so that the two front legs give the widest possible stance (as
shown). The shorter back leg should be at a slight angle, so that
the main post tilts back slightly.
Remove the instrument from the padded inner bag. Screw the
large thumbscrew at the top of the stand into the threaded insert
on the back of the bass. Adjust as desired, making sure that the
weight of the instrument is centered and stable on the stand.
Note that the stand is designed to be highly adjustable, and
therefore the instrument can be set in various positions,
including horizontal.
Caution: It is possible to set up the stand in an unstable
position. Test the stability by tipping the instrument so that each
leg lifts slightly, and be sure that it returns securely.
CONTROLS - Magnetic Models CR4M and CR5M
Knob 1 - Volume
Knob 2 - Balance; counterclockwise - magnetic pickup,
clockwise - Polar bridge pickup, center - both
Knob 3 – Balance; counterclockwise - optimal pizzicato (plucked, sustained) sound, clockwise -
optimal arco (bowed and percussive plucked) sound, center - both
Knob 4 - Treble; boost and cut.
Knob 5 - Bass; boost and cut.
CONTROLS - Nonmagnetic Models CR4 and CR5
Knob 1 - Volume
Knob 2 - Blend; counterclockwise - optimal pizzicato (plucked, sustained) sound - optimal arco
(bowed and percussive plucked) sound, center - both
Knob 3 - Treble; boost and cut.
Knob 4 - Bass; boost and cut.
PICKUP ADJUSTMENTS
Magnetic pickups (on the CR4M and CR5M) adjust by loosening set screws in the anchor adjacent to the
round coil caps (use 1.5mm hex wrench). Hold at desired height and re-tighten set screw.
Output level for each mode of the Polar (piezo) bridge pickup can be adjusted with small trim pots that are
found on the circuit board in the body cavity, accessible through three small holes in the back plate. Use
a small Phillips screwdriver.

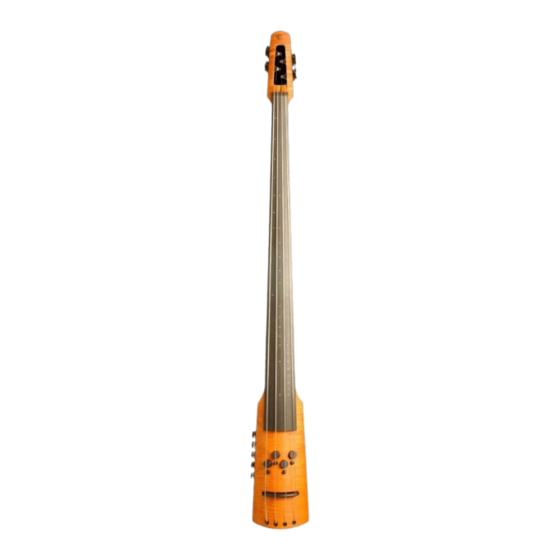

CR Series Upright Bass
INSTRUCTIONS
