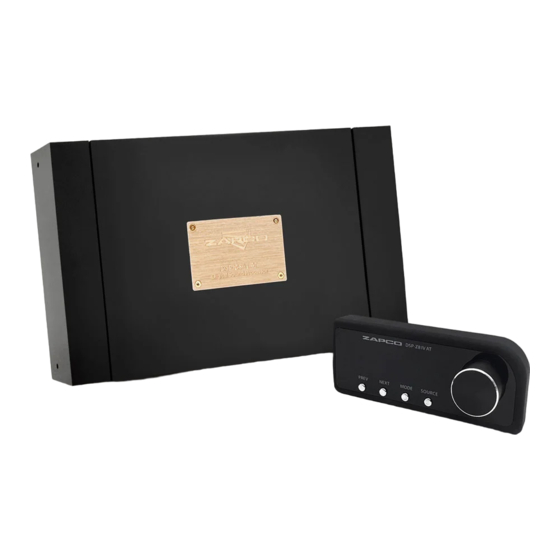

zapco DSP-Z8 IV Installation And Quick Start Manual
Channels digital sound processor
Hide thumbs
Also See for DSP-Z8 IV:
- Quick start manual (2 pages) ,
- Owner's manual (22 pages) ,
- Owner's manual (31 pages)
Related Manuals for zapco DSP-Z8 IV
Summary of Contents for zapco DSP-Z8 IV
- Page 1 DSP-Z8 IV Installation and Quick Start Guide Before operating the unit, please read this manual throughly and retain it for future reference.
- Page 2 There is absolutely no substitute for experience; that is a simple fact of life. Another simple fact is that ZAPCO has, for over forty years, been the leader in defining quality standards for the car audio industry. These years of experience have led to a thorough understanding of the challenges that are unique to the world of car audio.
- Page 3 This can save a lot of time and avoid having to do things twice. Proper installation protects your equipment and your vehicle. Next you need to find a secure mounting location for the DSP-Z8 IV. You need to avoid sources of heat and moisture, and provide adequate ventilation for cooling. Check around and under the location for any wires, hoses, etc.
- Page 4 Connecting the DSP-Z8 IV - Connecting the DSP-Z8 IV is quite straight forward. There are 6 RCA Inputs. Ch. I and 2 are seen as (FL) front left and (FR) front right, Ch. 3 and 4 are the rear inputs, and Ch. 5 and 6 are Sub1 and Sub2.
- Page 5 Important note: To avoid noise caused by equipment turn-on it is important that you use only the blue wire from the DSP-Z8 IV to turn on your amplifiers. If you are using multiple amplifiers it is best to use a relay between the blue DSP +12v wire and the amplifiers.
- Page 6 DSP to the PC with the USB cable, turn the system on, and open the program. Choose the DSP-Z8 IV. Each time you open the program you will do a test of the USB system. Default screen with Paragraphic EQ...
- Page 7 You can also adjust the Q if the filters. NOTE: EQ is set first by GEQ and can only be set once. All later equalization should be set with PEQ or GEQ will be reset. Now you have a quick run-down of the DSP-Z8 IV functions. The accompanying manual will take you through the system complete set-up.
- Page 8 Modesto, California USA Since 1974 zapco.com...
