INSTALLATION
MANUAL

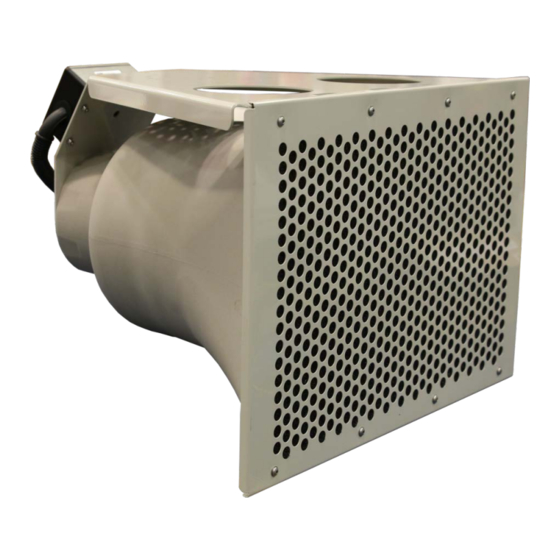

MAGNACAST SPEAKER

Advertisement

loading
Need help?

Need help?

Do you have a question about the Magnacast and is the answer not in the manual?

Questions and answers

Summary of Contents for Lencore Magnacast

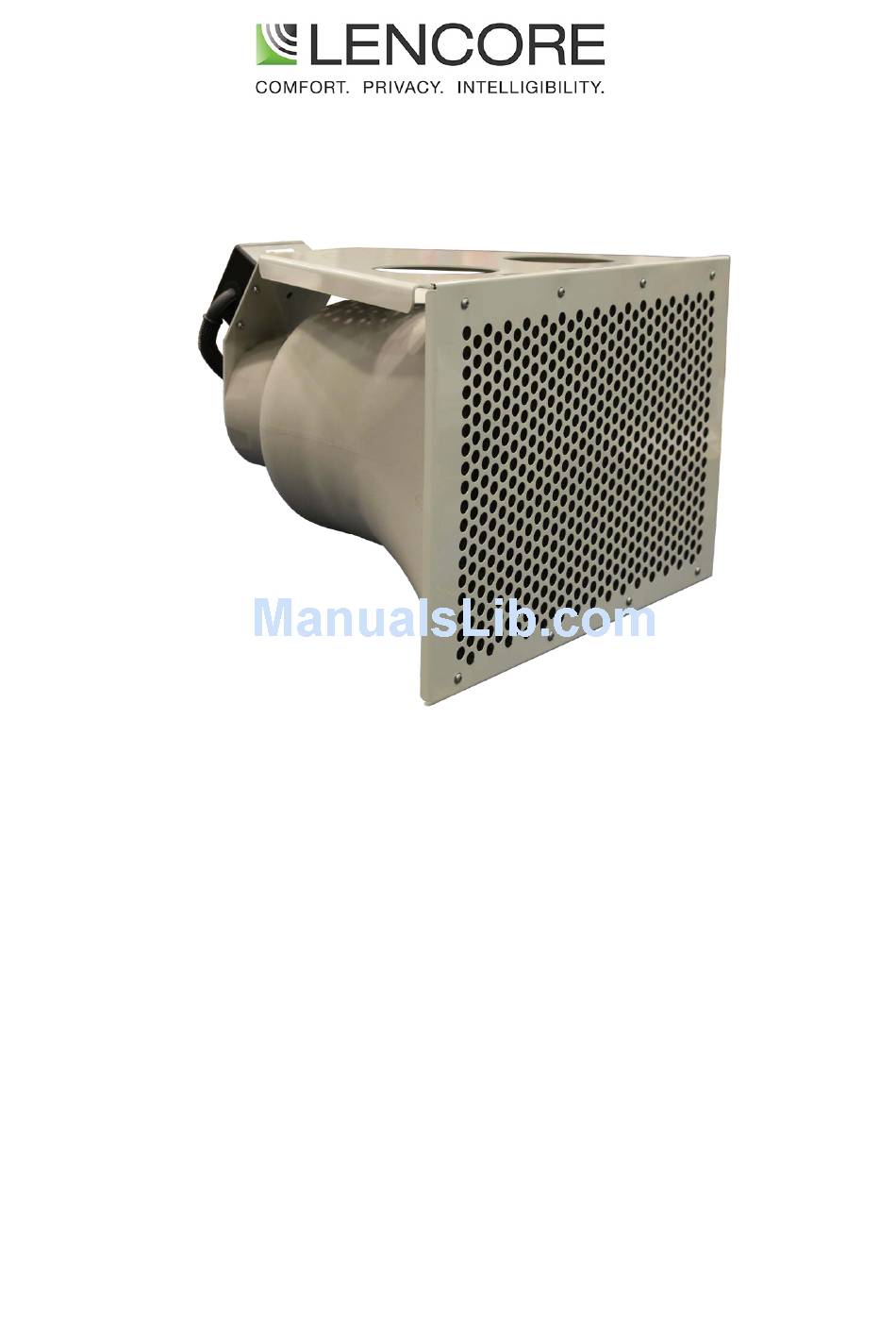

  • Page 1 INSTALLATION MANUAL MAGNACAST SPEAKER...
  • Page 2 1) The Magnacast should be mounted with a slight downward angle as shown below. The horn should never be mounted with the opening facing up. Using the device in a manner contrary to these instructions will void factory warranty. Junction...
  • Page 3 (not included). (Note: After drilling, ensure all metal shavings are removed from the box. Failing to properly seal this connection could result in premature failure of the device and void the factory warranty.) Magnacast Junction Box Pilot Hole...
  • Page 4 4) The primary beam angle of the Magnacast is 70° x 80° @ 1 kHz. Within the primary beam angle the user can expect to achieve the full rated SPL. Outside of the primary beam angle, the device will still be able to be heard but at a reduced output as depicted below.
  • Page 5 MAGNACAST SINGLE UNIT MOUNTING OPTIONS 1) The Magnacast comes standard with eye bolts for hanging by chains. Again, the unit should be mounted at a slight downward angle with the mounting bracket up. 2) Optional mounting hardware is available to attach a single Magnacast to a wall or pole.
  • Page 6 3) Wall\Pole Mount Unit Kit Contents Pan/Tilt Bracket Wall Mount Bracket 4) The kit allows for mounting the Magnacast, pan/tilt bracket, and wall mount bracket as shown:...
  • Page 7 1 and Speaker – should be wired into terminal block 3. MAGNACAST 4X UNIT MOUNTING OPTION 1) Mounting hardware is also available to mount four (4) Magnacasts in a manner to create an omni-directional acoustic source. The kit provides the hardware necessary to mount the unit to the top of a pole up to 10”...
  • Page 8 2) Kit Contents 4X Mounting Plate Pole Mount Pan\Tilt Bracket...
  • Page 9 (Note: Hole size to match transformer/junction box cable gland seal.) Remove the cabling provided with transformer/ junction box and install into Magnacast. Speaker + should be wired into terminal block 1 and Speaker – should be wired into terminal block 3.
  • Page 10 5) Attach the pole mounts to the 4X mounting plate as shown below. (Note: Leave fasteners loose until system has been attached to the pole in step 6.) 6) Mount to pole and ensure the unit is level. Tighten all pole fasteners, and then tighten the fasteners left loose in previous step.
  • Page 11 7) Mount the Magnacast horns to the 4X mounting plate with the provided hardware. 8) The horns can be rotated and tilted to optimize acoustic performance. Shown below are polar plots for recommended configurations. Horizontal (for mount using holes indicated in...
  • Page 12 Vertical - 0° Tilt Vertical - 30° Tilt 9) Drill hole in transformer/junction box where indicated based on audio source cable and corresponding sealed interface (not included).
  • Page 13 10) Wire into transformer/junction box as shown in diagrams below. MAGNACAST TRANSFORMER BOX WIRING MAGNACAST JUNCTION BOX WIRING...
  • Page 14 Woodbury, NY 11797 516-682-9292 info@lencore.com www.lencore.com The information contained herein is proprietary to Lencore Acoustics Corp. and copyright protected. No part of this manual can be © copied, used or distributed without prior authorization from Lencore Acoustics Corp. Copyright 2018...
