Lencore SPECTRA PENDENT Installation Instructions

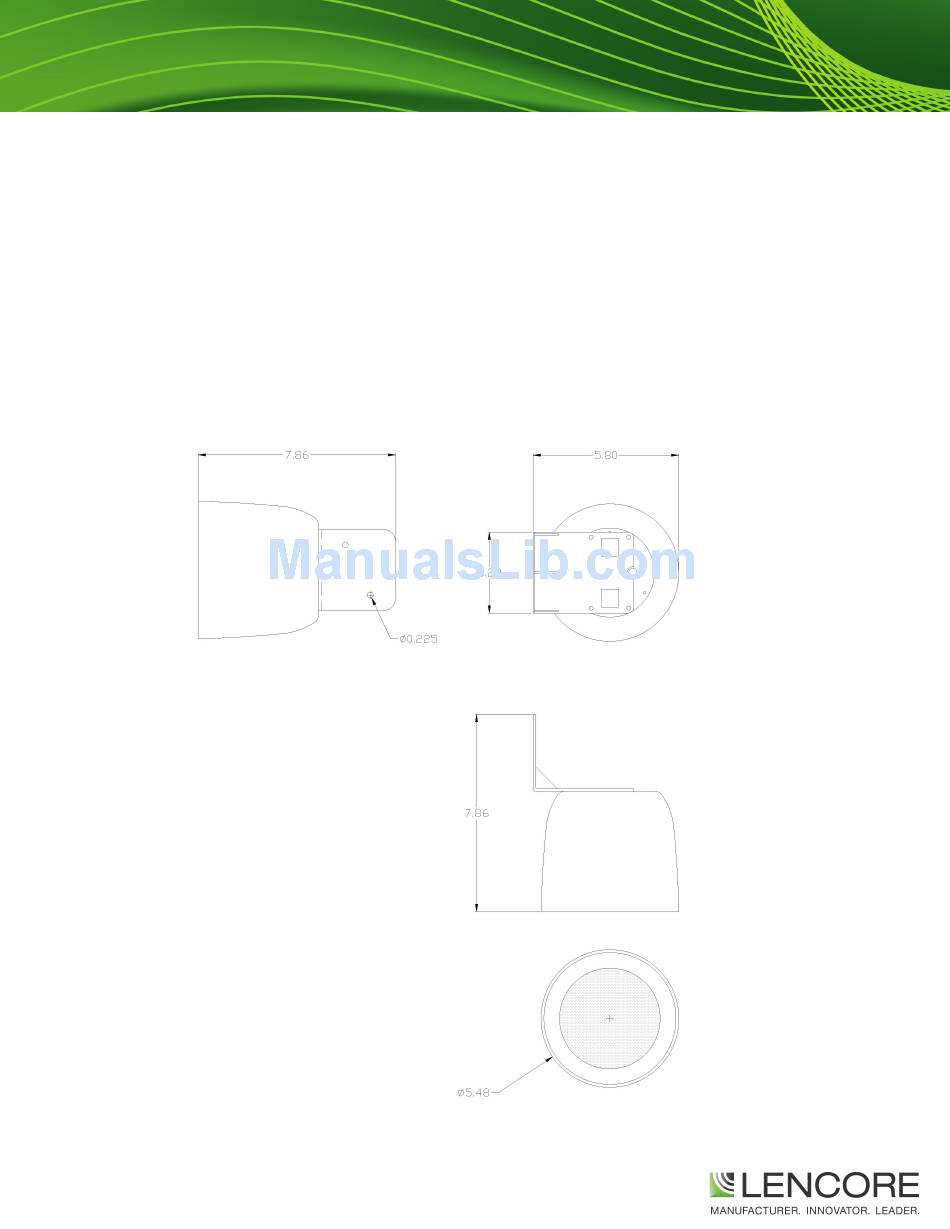

SPECTRA PENDENT SPEAKER - WALL MOUNT
INSTALLATION INSTRUCTIONS

Spectra Pendent Speaker Installation Instructions:

1. Refer to the sound masking layout (drawing) provided to locate the appropriate speaker installation position.
2. Secure speaker to wall using supplied bracket.
3. Install Cat 5e cable with standard RJ45 connector into the speaker.

Spectra Pendent Speaker Wiring Instructions:

1. For first speaker connection to OP: Connect the audio cable– 8 conductor CAT5 from OP channel to INPUT of speaker.
2. For speaker to speaker connection: Connect audio cable– 8 conductor from OUTPUT of previous speaker to INPUT of
next. Follow the same series connections to add up to 8 speakers per channel. The last speaker in any channel will have
only one cable going to its INPUT only. There will be no cable connected to the output.
