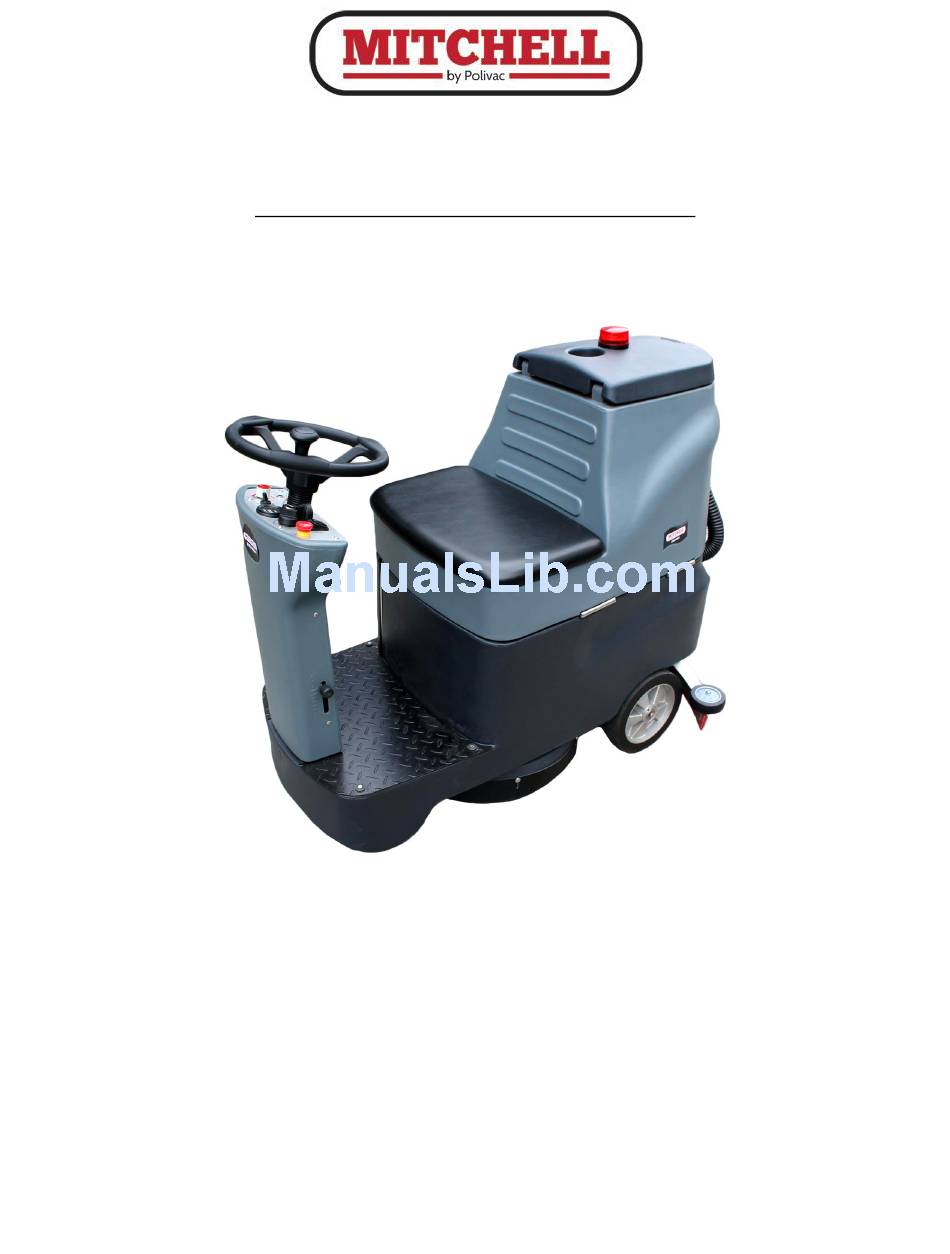

- Page 1 BRUMBY RIDE-ON SCRUBBER/DRYER OPERATIONS MANUAL AND TROUBLESHOOTING GUIDE Thank you for purchasing M itchell P rofessional Floor Cleaning Equipment. P lease be sure to read the manual before operation.
-
Page 2: How The Machine Works
Overview The Mitchell BRUMBY GS-560D ride-on scrubber/dryer integrates both scrubbing and drying in one machine, leaving the floor clean and dry in a single pass. It is equipped with a quiet electric motor producing a low noise output of 58dB and capable of up to a continuous 3-4 hours operation with a single charge. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE) WARNING - To reduce the risk of fire, explosion, electric shock, or injury: 1. Do not use appliance with flammable or combustible liquids/fumes such as gasoline or use in areas where they may be present. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS This machine is intended for commercial use. It is designed exclusively to scrub hard floors in an indoor environment and is not intended for any other purposes. Use only recommended scrubbing brushes and commercially available floor cleaners and waxes intended for machine application. - Page 5 When servicing machine: 1. Avoid moving parts. Do not wear loose clothing or jewelry. 2. Disconnect battery connections before working on machine. 3. Wear protective gloves and eye protection when handling batteries or battery cables. 4. Avoid contact with battery acid. 5.
-
Page 6: Battery Installation
Battery installation 1. Park the machine on a level surface,then turn off and remove the key. 2. Lift the water tank to expose the battery compartment. 3. To avoid damage to the batteries and machine, carefully place batteries into the battery compartment 4. -
Page 7: Attaching Squeegee Assembly
Attaching squeegee assembly 1. Park the machine on a level surface,then turn off and remove the key. 2. Lower the vacuum squeegee bracket to the low position. 3. Install the vacuum squeegee onto the bracket and tighten the 2 nuts to secure the bracket and and vacuum squeegee. -
Page 8: Machine Operation
MACHINE OPERATION WARNING: Fire Or Explosion Hazard. Never Operate Machine In Or Near Flammable Liquids, Vapors Or Combustible Dusts. PRE--OPERATION CHECKS Sweep and dust-mop the floor. Check the battery discharge indicator. Check pad/brush for wear. Check the squeegee blades for wear and proper adjustment. Make sure the recovery tank is empty and the float shut--off screen and debris tray are clean. -
Page 9: Draining Recovery Tank
Draining recovery tank The recovery tank should be drained and cleaned out after every use. The solution tank should be cleaned out periodically to remove any water deposit buildup For safety: before servicing machine, stop on level surface, turn off machine and remove key. -
Page 10: Storing Machine
Monthly Maintenance 1. Remove the solution tank filter from underneath the machine and rinse out the screen. Make sure the solution tank is empty before removing the filter. 2. Lead acid batteries: clean the battery tops to prevent corrosion. 3. Check for loose cables connections. 4. -
Page 11: Troubleshooting Guide
Troubleshooting Guide PROBLEM POSSIBLE CAUSE SOLUTION Suction motor is not switched on Switch on the suction motor Waste collection hose is clogged up Clear the waste collection hose and remove any clogs Waste collection tank filter is clogged Clean the waste collection tank filter and remove any clogs Suction squeegee is clogged up Clean the suction squeegee and remove... - Page 12 Suction motor Vacuum motor fuse blown Replace 25 Amp fuse will not operate Faulty vacuum motor or wiring Contact service center Worn brush plates Contact service center Clogged solution tank filter or solution Clean solution tank filter or flush out hose solution hose Little or no...
- Page 14 LED LIGHT KAR018 DIRECTION SWITCH KAR019 OVERLOAD SWITCH KAR020 SPEED CONTROL SWITCH KAR021 HORN BUTTON KAR022 SQUEEGEE CONTROL LEVER KAR023 BRUSH CONTROL LEVER KAR024 21” BRUSH FOR BRUMBY KAR025 21” PAD HOLDER FOR BRUMBY KAR026 SOLENOID VALE FOR BRUMBY KAR027...
-
Page 15: Warranty
WARRANTY 1. When a warranty repair is justified, Mitchell welcomes such repair by any of its authorized Service Centres. In most instances, the request for warranty brought to the attention of our service Divisions or Agents are handled in a prompt routine manner with no question of their validity.
