HERA HERA600 Quick Start Manuals

600 Series M2M Router
Power
LAN
WIFI
WAN
Signal
Read before powering device
Quick start guide
Declaration of Conformity
We: Dataflex Design Communications Limited
8 Frederick Sanger Road, Surrey Research Park,
Guildford, Surrey, GU2 7YD, UK
Declare under sole responsibility that the product family Hera600
to which this declaration relates, is compliant with the essential
requirements of:
RoHS Directive 2002/95/EC of 27 January 2003
WEEE Directive 2002/96/EC of 27 January 2003
Energy Using Product Directive 2005/32/EC 6 July 2005
Batteries Directive 91/157/EEC 26 September 2008
R&TTE Directive 1999/5/EC
The Low Voltage Directive 2006/95/EC
The EMC Directive 2004/108/EC
Signed ....................
Name Jon Darley
Position Chief Technical Officer
Place and date of issue Leatherhead October 2012
year of affixing CE Mark 2012
E113664
FCC ID: 2AASBH601V2 Contains FCC ID: N7NSL8090
IC: 11329A-H601V2 Contains IC:2417C-SL8090
Electrical
Model:H601V2
Safety
Manufacturered by Dataflex Design Communications Ltd in China

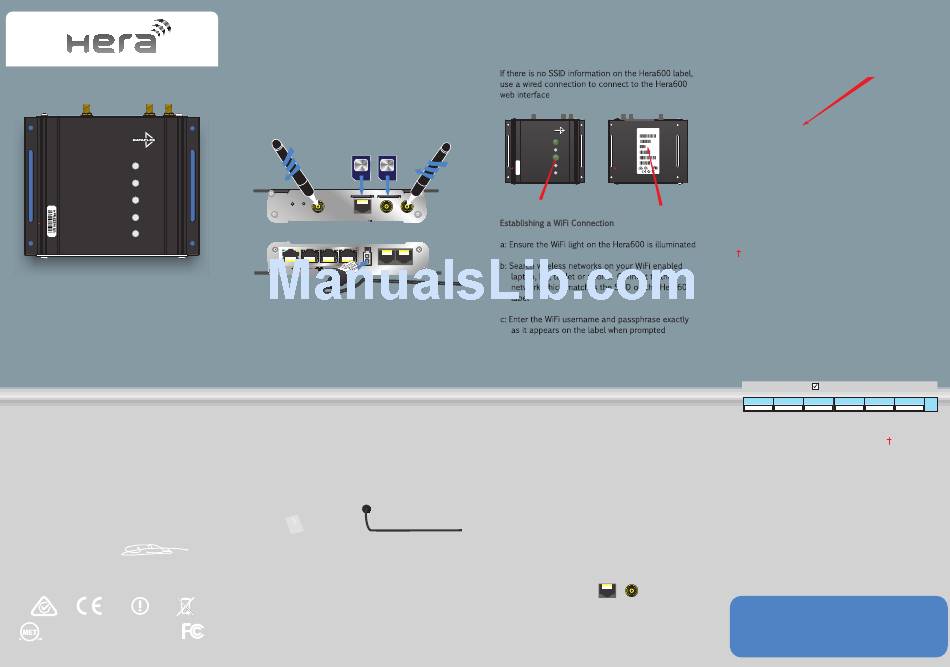

1: Getting started
1: Getting started
Never insert or remove SIM cards while
the Hera600 is powered
Insert SIM cards & attach antennas or cables for 3G
and WiFi where applicable.
Features & appearance may vary to those shown
according to model type.
3G
WiFi
SIM2 SIM1
SIM2
WPS Reset
WiFi Service Rx Div Primary
Link1 100 Link2 100 Link3 100 Link4 100
Power Serial 1 Serial 2
Power
Insert the power connector. Plug the mains adapter
into a dedicated socket & switch on
To configure the Hera600, connect to the web
interface
Connection to the web interface can be achieved by
wired ethernet (LAN) or WiFi
2 : Wired connection
2 : Wired connection
a
a
Connect to a PC or laptop by ethernet cable
either directly or via an ethernet hub
Link1 100 Link2 100 Link3 100 Link4 100
Power Serial 1 Serial 2
HUB
Ethernet LAN
2 : WiFi connection
2 : WiFi connection
b
b
using username and password
Front back
Hera 600
Power
LAN
WIFI
WAN
E113664
Electrical
Safety
Signal
SSID
WiFi light illuminated
WiFi username
WiFi passphrase
2 : WiFi connection
2 : WiFi connection
c
c
using WPS
If there is no SSID information on the Hera600 label,
use a wired connection to connect to the Hera600
web interface
Configure your computing
device to connect to WiFi in
WPS mode
Press the WPS button
SIM2 SIM1
WPS Reset
WiFi Service Rx Div Primary
The WPS function will automatically set up a
secure connection between your router and
computer
3: Web interface
3: Web interface
Open a web page on your PC or laptop, and type
http://192.168.1.1
into the address bar then
press enter
Internet application
http://192.168.1.1
Address:
username:
admin
password:
admin
Enter the username and password and click OK to
log into the Hera web interface
Note: Appearances may vary according to
operating system and web application.
Information supplied by your equipment
provider overrides any information shown
above
4: Connecting 3G
4: Connecting 3G
Mobile Connection Enable
Profile Name APN User Password SIM USSD
Once logged on to the web interface refer to the
documentation provided with your SIM.
Information required for 3G connection:
 APN (Access Point Name)
 Username
 Password
To enable the 3G service:
Enter a profile name of your choosing

 Enter the SIM information bulleted above
Tick the "enable" box.

Click "apply changes" to connect

Click "save configuration"

This quick start guide provides basic connection information only.
For full feature information download the latest comprehensive user
guide from:
www.dataflex.com/hera
