Installation, Operation and Maintenance Manual
Please read and save these instructions for future reference. Read carefully before attempting to assemble, install,
operate or maintain the product described. Protect yourself and others by observing all safety information. Failure
to comply with these instructions will result in voiding of the product warranty and may result in personal injury
and/or property damage.

Receiving and Handling

Upon receiving dampers, check for both obvious
and hidden damage . If damage is found, record all
necessary information on the bill of lading and file
a claim with the final carrier . Check to be sure that
all parts of the shipment, including accessories, are
accounted for .
Dampers must be kept dry and clean . Indoor storage
and protection from dirt, dust, and the weather is
ideal . Do not store at temperatures in excess of
100°F (37°C) .
Document Number 478799

Table of Contents

General Information . . . . . . . . . . . . . . . . . . . . . . . . 1
Receiving and Handling . . . . . . . . . . . . . . . . . . . . . 1
Pre-Installation Guidelines . . . . . . . . . . . . . . . . . . . 2
Electrical Guidelines . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
Setup & Operation for AMD-xx-TD Series
Dampers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Supplied Controller . . . . . . . . . . . . . . . . . . . . . . . . 4
Supplied Actuator . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9
Optimal Placement for AMD-xx-TD . . . . . . . . . 10-11
Minimum Installation Requirements . . . . . . . . . . . 12
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Our Commitment . . . . . . . . . . . . . . . . . . . . . . . . . 12
Air Measuring Dampers: AMD-xx-TD Series
AMD-xx-TD Series
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMD-42-TD and is the answer not in the manual?

Questions and answers

Related Manuals for Greenheck AMD-42-TD

Summary of Contents for Greenheck AMD-42-TD

  • Page 1: Table Of Contents

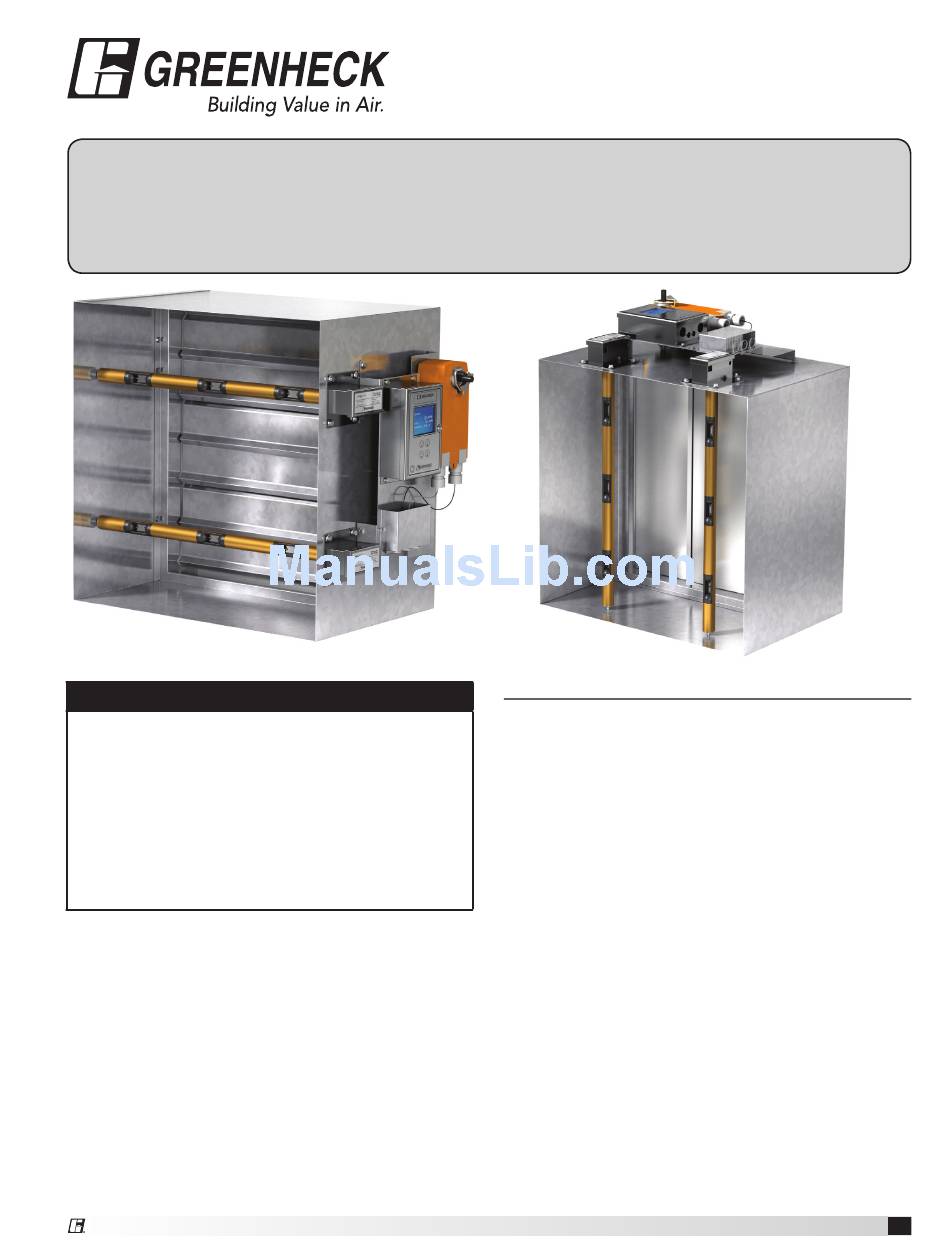

    Document Number 478799 AMD-xx-TD Series ® Installation, Operation and Maintenance Manual Please read and save these instructions for future reference. Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information. Failure to comply with these instructions will result in voiding of the product warranty and may result in personal injury and/or property damage.

  • Page 2: Pre-Installation Guidelines

    . duct or opening . Out of square, racked, twisted Verify power before wiring actuator . Greenheck is not or misaligned installations can cause excessive responsible for any damage to, or failure of the unit leakage and/or torque requirements to exceed caused by incorrect field wiring .

  • Page 3: Installation

    . modified in the field . However, if field configuration is NOTE: Greenheck dampers are specifically designed necessary please reference the Vari-Green transmitter and engineered for structural integrity based on model Installation, Operation, and Maintenance Manual and conditions .

  • Page 4: Amd-Xx-Td Series Damper Without A Factory

    AMD-xx-TD Series Ordered with a Factory Supplied Controller When you order a factory supplied controller, it comes with a Greenheck exclusive VAF24-BAC-GTD actuator which has the controller integrate inside of it . The actuator/controller is configured by the factory at the time the unit was ordered for either analog or BACnet operation .

  • Page 5: Bacnet Enabled Factory Supplied Controller

    The controller is designed to modulate the AMD-xx- This controller is designed to modulate the AMD-xx- TD series damper such that it maintains a desired TD series damper such that it maintains a desired cfm setpoint . The setpoint is supplied via a 0-10 VDC cfm setpoint .

  • Page 6: Setting The Actuator/Controller's Bacnet

    Setting the Actuator/Controller’s Access the Actuator BACnet Configuration 1 . Open Internet Explorer and enter the following address: http://192.168.0.10:8080/index.html The actuator’s BACnet configuration including the device instance, MAC address, and baud rate can be accessed through its Ethernet port . Connecting to the Actuator 1 .
  • Page 7 Table 1 lists and describes all of the BACnet data points associated with the controller inside the actuator of BACnet enabled AMD-TD series dampers . Name Type Access Description Greenheck AMD-TD Displays the application version AirflowSetpoint Displays the real-time setpoint in cfm CurrentAirflow Displays the real-time volumetric airflow rate in cfm...
  • Page 8 Protocol Implementation Conformation Statement - PICS General Information Date: 11 . April 2014 Vendor Name: BELIMO Automation AG Vendor ID: Product Name: VAFB24-OP GTD Product Model Number: Applications Software Version: 1 .34 .0 Firmware Revision: 1 .0 .3 BACnet Protocol Revision: 1 .6 Product Description: The device is an air damper control actuator with the added benefit of a built-in programmable controller .
  • Page 9 Object Processing Object Type Optional Properties Writeable Properties Analog Input Description Analog Output Description Present_Value Analog Value Description Present_Value Binary Input Description Active_Text Inactive Text Binary Output Description Present_Value Active_Text Inactive_Text Relinquish_Default 1) Priority_Array 1) Binary Value Description Present_Value Active_Text Inactive_Text Relinquish_Default 1) Priority_Array 1)

  • Page 10: Optimal Placement For Amd-Xx-Td

    Optimal Placement for AMD-xx-TD Damper Series Fans 3/4D Centrifugal Fan Discharge Centrifugal Fan Inlet Vane Axial Fan Discharge Vane Axial Fan Inlet Elbows 1/2D 1.5D 1/2D 90°Elbow Without Vanes 90° Vaned Elbow 1/2D Round Sweep Elbow Air Measuring Dampers: AMD-XX-TD Series...
  • Page 11 Optimal Placement for AMD-xx-TD Damper Series Takeoffs 1.5D Branch Takeoff B1 Branch Takeoff 2 Transitions 1/2D α 1/2D α α Transition 1 α Transition 3 Bellmouth Inlets Rectangular Duct: D= Circular Duct: D = Duct Diameter 4 x Width x Height ...

  • Page 12: Minimum Installation Requirements

    . Damper Maintenance Greenheck's dampers are designed to be trouble free and hassle free under normal operation . Dampers are to be installed square and straight so as to prevent binding during operation . The following annual damper maintenance suggestions will help to insure proper damper operation and increase the life expectancy of the damper .
