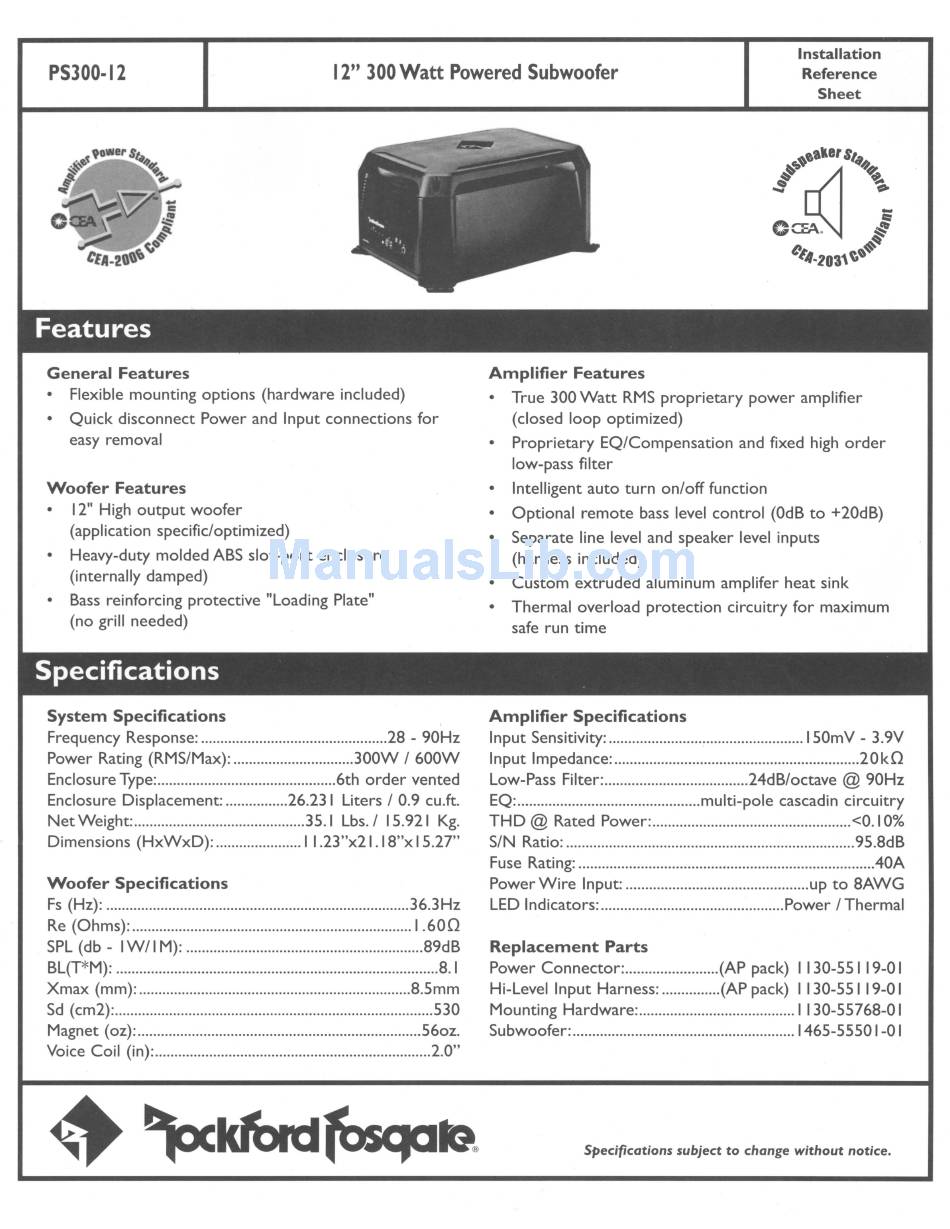

Rockford Fosgate PS300-12 Installation Reference Sheet

PS300·12
Features

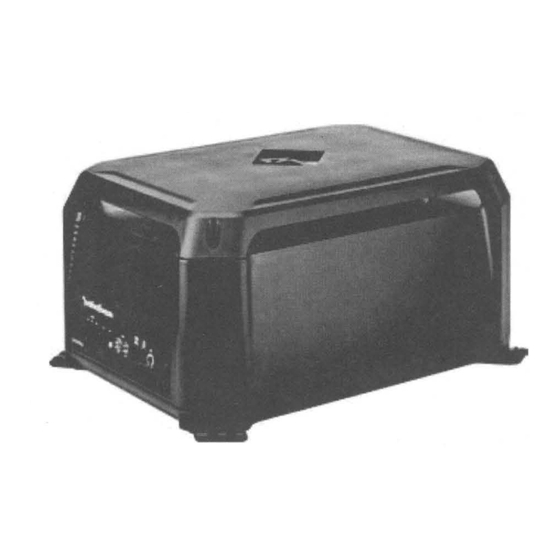

12" 300 Watt Powered Subwoofer
Installation
Reference
Sheet
General Features
• Flexible mounting options (hardware included)
• Quick disconnect Power and Input connections for
easy removal
Woofer Features
12" High output woofer
(application specific/optimized)
• Heavy-duty molded ABS slot-port enclosure
(internally damped)
• Bass reinforcing protective "Loading Plate"
(no grill needed)
Specifications
System Specifications
Frequency Response: 28 - 90Hz
Power Rating (RMS/Max):
300W I 600W
Enclosure Type: 6th order vented
Enclosure Displacement:
26.231 Liters I 0.9 cu.ft.
Net Weight:
35.I Lbs. I 15.921 Kg.
Dimensions (HxWxD): 11.23"x21.18"x 15.27"
Woofer Specifications
Fs (Hz): 36.3Hz
Re (Ohms): 1.600
SPL (db - IW/I M): 89dB
BL(T*M): 8. I
Xmax (mm): 8.5mm
Sd (cm2): 530
Magnet (oz): 56oz.
Voice Coil (in): 2.0..
Amplifier Features
• True 300 Watt RMS proprietary power amplifier
(closed loop optimized)
• Proprietary EQ/Compensation and fixed high order
low-pass filter
• Intelligent auto turn on/off function
• Optional remote bass level control (OdB to +20dB)
• Separate line level and speaker level inputs
(harness included)
• Custom extruded aluminum amplifer heat sink
• Thermal overload protection circuitry for maximum
safe run time
Amplifier Specifications
Input Sensitivity:
~
I50mV - 3.9V
Input Impedance: 20kO
Low-Pass Filter:
24dB/octave @ 90Hz
EQ: multi-pole cascadin circuitry
THD @ Rated Power:
<0.10%
SIN
Ratio: 95.8dB
Fuse Rating: 40A
PowerWire Input: up to 8AWG
LED Indicators:
Power I Thermal
Replacement Parts
Power Connector: (AP pack) I I30-55 I 19-0 I
Hi-Level Input Harness: (AP pack) I 130-55 I 19-0 I
Mounting Hardware: I 130-55768-0 I
Subwoofer: 1465-55501-0 I
Specifications subject
to
change without notice.
