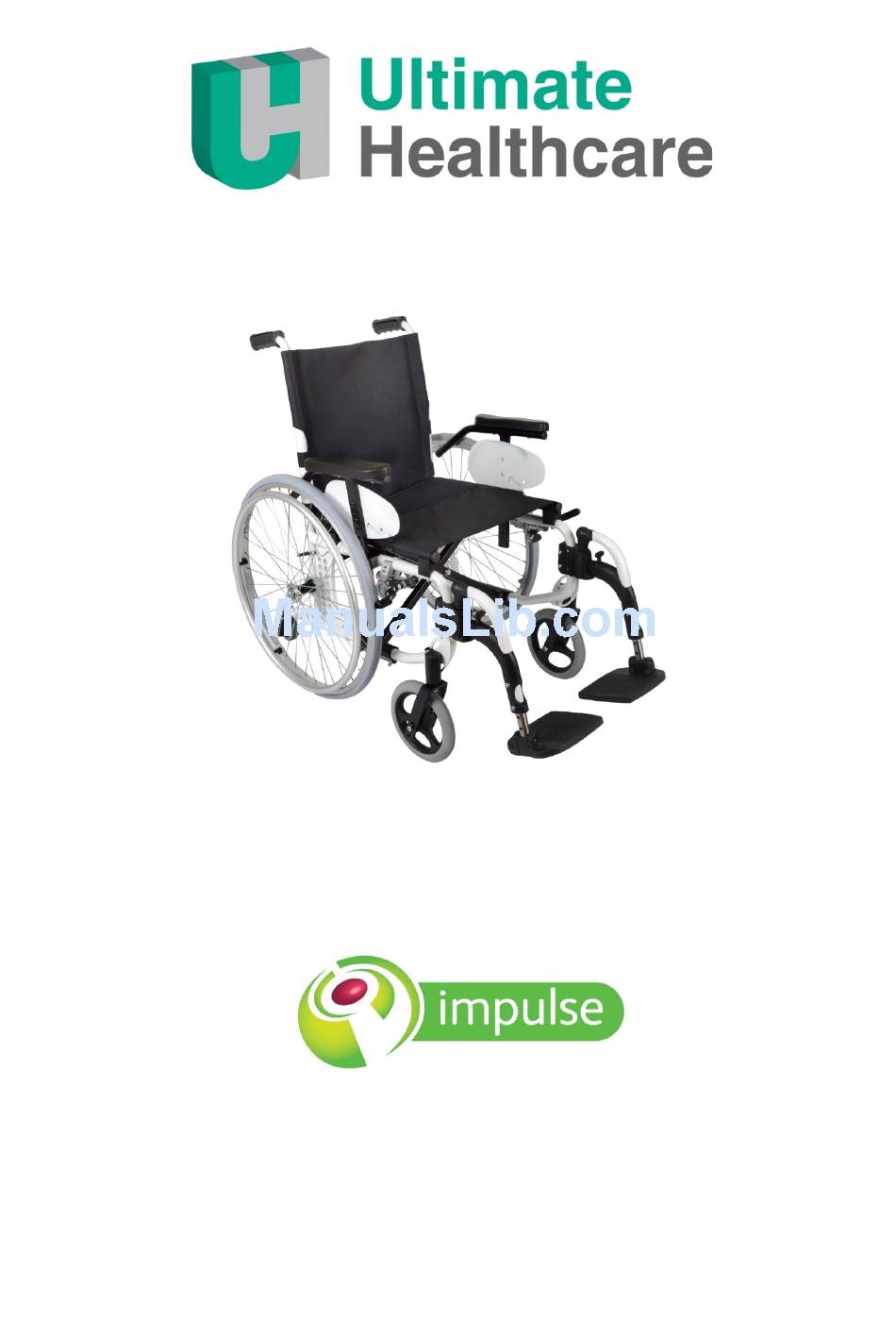

- Page 1 Manual Wheelchair User Manual Issue 3 / 310317...
-
Page 2: Table Of Contents
Contents 1. Introduction ............................3 2. Intended Use ............................4 3. Product Description ..........................5 4. Wheelchair Safety ..........................6 4.1 Stability ..........................6 Weight limit .........................6 Brakes .........................7 Transferring in and out of the wheelchair ..............7 4.4.1 Side transfer .......................7 4.4.2 Front transfer .....................7 Kerbs and obstacles ....................8 4.5.1 Ascending a step ....................8... -
Page 3: Introduction
(left). Make sure that you understand all these notices. If you have any doubt, contact your dealer Note: Ultimate Healthcare reserves the right to modify the information in this User Manual at any time. The information in this User Manual may vary slightly with respect to the basic design of the... -
Page 4: Intended Use
/ transit wheelchair. This wheelchair has been designed for use – both indoors and out - on flat, even surfaces. . The Ultimate Healthcare wheelchair has, in its standard self-propelled or transit format (370mm – 580mm seat widths), been designed to accommodate users who weigh up to a maximum of 150kg (24 stone), have all limbs intact and have sufficient upper body strength to maintain a safe position within the wheelchair without the addition of supporting aids. -
Page 5: Product Description
3. Product Description The Impulse folding wheelchair can be fitted with either self-propelling 24” diameter wheels or with transit 12” diameter wheels. The standard configuration is shown in the figure below, which identifies key components. The Impulse folding wheelchair can have various depth adjustments ranging from 400mm to 500mm and also has a multi-hole fixation for the rear 24”... -
Page 6: Wheelchair Safety
Manual. Weight limit The maximum user weight limit is 150kg / 24 stone for the Ultimate Healthcare chairs with seat widths of 370mm - 580mm. The wheelchair user's degree of activity is important. For example, a very active user weighing 75kg may subject the wheelchair to more stress than a less active user weighing 115kg. -
Page 7: Brakes
The addition of a cushion will alter the centre of gravity and adversely affect the stability of the wheelchair. Brakes There are two parking brakes; one on each rear wheel. They should both be applied when the wheelchair is at a standstill. As the brakes are applied to the tyres, the tyres should be properly inflated and undamaged. -
Page 8: Kerbs And Obstacles
Kerbs and obstacles Try to avoid kerbs and obstacles. Never ride up or down kerbs or obstructions unless you are confident of negotiating them safely. Always tackle obstacles head on. If you are unsure about your ability to tackle a kerb, get help. Always lean forward when going up a kerb. 4.5.1 Ascending a step To climb a step in the front position, the career must position the wheelchair in front of the step. -
Page 9: Hills And Slopes
Hills and slopes 4.6.1 Going uphill Lean forward when going up. Before you start to ascend a slope, be sure you have enough strength and energy to climb it. Try not to stop or turn the wheelchair around. If you are not comfortable about tackling a gradient, consider an alternative route or get help. - Page 10 Sitting for long periods may increase the chance of thrombosis or pressure sores. Users prone to such conditions are advised to take medical advice. These wheelchairs have been designed and tested for users up to the maximum weight recorded in the technical specification. This weight should never be exceeded. Passengers, even children, should never be carried.
- Page 11 Kerbs. You should try and avoid going up and down kerbs, as this may cause the wheelchair to topple. Use access ramps wherever possible. To negotiate a kerb on your own requires considerable skill; get assistance if you have any doubts. If you have to climb or descend a low kerb, always tackle it straight on.
-
Page 12: Operation And Adjustments
Adjusting depth A unique feature of the Impulse wheelchair is the ability to adjust the depth from 400mm to 500mm all within one frame. To achieve this movement you simply remove the nut and screw from both the rear of the frame where you can see the tube in tube option (figure 1). -
Page 13: Wheelchair Propulsion
To fold the back, push in the black lever (figure 3), then pull the push handle down (figure 4). Repeat for the other side. Please note, the Impulse wheelchair also has a straight back tube option Issue: 3 / 310317... -
Page 14: Leg Rests
Figure 3: Push in black lever Figure 4: Fold down by pulling on handles Leg rests The leg rests of the wheelchair can swing out as required and also each leg rest assembly can be easily removed from the wheelchair. 6.6.1 Leg rest adjustment To release the leg rest, pull the release latch (figure 5) away from the frame and rotate the leg rest outward (figure 6). -
Page 15: Footrest Adjustment
Figure 7: Pull back release lever Figure 8: Lift leg rest up to remove Footrest adjustment To release the leg rest, pull the release latch (figure 9) away from the frame and rotate the leg rest outward (figure 10). Now remove the leg rest from the frame of the chair. To adjust the height of the leg rest you simply loosen the 4mm Allen bolts and slide the tube to your desired height. -
Page 16: Brakes
Figure 11: Lift armrest up Figure 12: Press the pin Brakes There are two parking brakes; one on each rear wheel. They should both be applied when the wheelchair is at standstill. Because the brakes are applied to the tyres, the tyres should be properly inflated and undamaged. -
Page 17: Transportation
This wheelchair has been crash tested in its standard configuration for safety in collisions according to ISO 7176-19. However due to safety risks Ultimate Healthcare recommends that wheelchair users should transfer to the seat of the vehicle and use the installed restraint system of the vehicle whenever feasible. -
Page 18: User Care And Cleaning
8. User Care and Cleaning In spite of the simplicity of a manual wheelchair, it is important for safety that you carry out the following checks: Daily or before use: Visually check the wheelchair for damage. Visually check the tyres, spokes and wheels for damage. ... -
Page 19: Regular Inspection Checklist
On completion of the service, always test the wheelchair before the engineer leaves, and make sure you are satisfied with the work carried out. Regular inspection checklist The following table shows the regular inspections that must be performed to ensure the safe and efficient continued use of the wheelchair: Weekly Monthly... -
Page 20: Disposal
10. Disposal Contact your dealer for advice before you consider disposing of your wheelchair. They will be aware of the environmental regulations in force at the time, and will assist you to meet the applicable environmental legislation. 11. Technical Specification Seat width: 370mm 400mm... -
Page 21: Guarantee And Warranty
Ultimate Healthcare’s products are for the sole purpose of identifying the equipment and are not to be construed as expressed warranties. This limited warranty applies only to the original purchaser of the equipment and is not transferable. - Page 22 Contact Details Ultimate Healthcare, Calmore Industrial Estate, Nutwood Way, Totton, Southampton, Hampshire. SO40 3XJ Tel: 0333 321 8996 Email: servicecentre@ultimatecaregroup.com Issue: 3 / 310317 Page 22 of 22...
