You know it's cold when it's Minus Forty
Owners Manual
Glass Door Freezers
Single and Double Door Models
09-USGF, 09M-USGF, 09X-USGF
10-USGF, 10M-USGF, 10X-USGF
13-USGF, 15-UDGF, 19-USGF
22-USGF, 43-UDGF, 44-UDGF
MNL_R290_USGF-UDGF_EN180312
®
3 0
. G
, O
R M S T R O N G
V E
E O R G E T O W N
800.800.5706 • 905.702.1441 •
905.702.1442 •
TEL
F X
C
L 7G 4R 9
N T R I O
N D
.MINUSFORTY.
WWW
COM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Minus Forty 09-USGF
Summary of Contents for Minus Forty 09-USGF
- Page 1 This information is on the identification label located on the left hand inside wall of the cabinet. We advise you to keep this Owners Manual and sales slip in your possession. You know it’s cold when it’s Minus Forty ® Model:...
- Page 3 • To minimize the risk of possible ignition due to incorrect parts or improper service, compo- nent parts shall be replaced with like components and servicing shall be done by service personnel authorized by Minus Forty Technologies Corp. • Do not attempt to modify the unit or remove any functional part(s) from the unit.
- Page 4 WIRING DIAGRAM (STANDARD MODELS)
- Page 5 ILLUSTRATION: 43-UDGF, 44-UDGF WARNING MAKE SURE THE FREEZER IS DISCONNECTED FROM THE POWER SUPPLY BEFORE ANY SERVICE. PRESS THE FREEZER SWITCH TO THE “OFF” POSITION THEN UNPLUG THE POWER CORD FROM THE ELECTRICAL RECEPTACLE. ALL SERVICE WORK MUST BE PERFORMED BY CERTIFIED, FAC- TORY AUTHORIZED SERVICE PERSONNEL ONLY.
-
Page 6: Table Of Contents
CONTENTS PARTS LIST: 43-UDGF, 44-UDGF Description Description LED Strip 41 Start Capacitor Warranty LED Driver 42 Fan Blade(Condensing Unit) Pressure Relief Ball 43 Fan Motor(Condensing Unit) Installation Instructions Pilaster 44 Compressor Power Requirements Top Display Assembly 45 Heater Breaker Door Basket 46 Filter Drier Shelf and Basket, Placement and Adjustment... -
Page 7: Warranty
® Technologies Corp. This warranty does not extend to any consequential damage caused by the failure of the product under any circumstance and further, Minus Forty ® Technologies Corp. shall not be responsible for damage to the contents of the product or any... -
Page 8: Installation Instructions
INSTALLATION INSTRUCTIONS PARTS LIST: 15-UDGF WARNING These freezers MUST be installed on a dedicated grounded circuit protected with a 15 Amp circuit breaker Description Description or a 15 Amp time delay fuse. Do not remove ground prong. If the cord or plug is damaged, replace with the same type. -
Page 9: Shelf And Basket, Placement And Adjustment
ILLUSTRATION: 13-USGF, 19-USGF, 22-USGF SHELF AND BASKET, INSTALLATION AND ADJUSTMENT The freezer is supplied with shelves and molded or metallic clips. The freezer has slotted pilasters to po- sition the shelves according to the customer’s needs. Molded Clip Shelf Metallic Clip Shelf The clips can be removed at any time if a new position is chosen for the shelf or basket. -
Page 10: Product Loading
PRODUCT LOADING PARTS LIST: 13-USGF, 19-USGF, 22-USGF NOTICE: Description Description Ensure the freezer has reached the proper operating temperature before loading product. Display LED Strip 5 Pole Terminal Block The electronic control displays the interior cabinet temperature. Top Display Assembly Controller Product loss is not covered under warranty. -
Page 11: Temperature Adjustment And Switch Functions

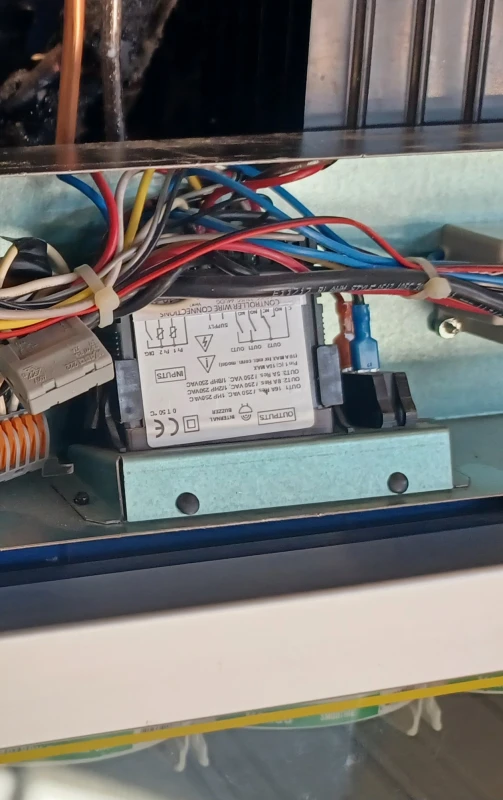

TEMPERATURE ADJUSTMENT AND SWITCH FUNCTIONS ILLUSTRATION: 09/09M/09X-USGF, 10/10M/10X-USGF Locate the electronic control on the right of the front bottom grill. The electronic control displays ac- tual temperature inside the freezer. In addition, the electronic control turns the refrigeration system OFF when freezer reaches the set temperature, and turns the refrigeration system ON after the freezer temperature rises by 8˚F or after 7 minutes, whichever lasts longer. -
Page 12: Controller Symbols And Functions
CONTROLLER ALARMS AND SIGNALS CONT... PARTS LIST: 09/09M/09X-USGF, 10/10M/10X-USGF Message Cause Action StArt dELAy Start up delay in progress • Wait for 6 minutes Description Description Power Cord Door (Right or Left Hand) • Check door Hi °F or Hi °C Maximum temperature alarm •... -
Page 13: Manual Defrost
TROUBLESHOOTING GUIDE CONT... MANUAL DEFROST This freezer is designed for automatic defrost. Every eight hours the refrigeration system is turned OFF and for online reference go to www.minusforty.com the defrost/drain heaters are activated to melt the ice from the evaporator coil and drain pan. If the freezer is not leveled properly, the water may not drain out of the freezer, it will re-freeze and ice gradually builds WARNING up. -
Page 14: Condenser Cleaning
CONDENSER CLEANING TROUBLESHOOTING GUIDE The freezer is designed for minimal condenser cleaning. With the “lint free” condenser design, most for online reference go to www.minusforty.com dust and dirt will pass right through the condenser. To insure the proper operation, we recommend WARNING scheduled check-ups and cleaning every three to four months. - Page 15 INTERIOR LED STRIP REPLACEMENT CABINET CLEANING (CONT’D) WARNING EXTERIOR CLEANING Make sure the unit is disconnected from the power supply before any service. Press the Use only mild non-abrasive liquid cleaner, water and a soft cloth for the painted surfaces and power switch to the “Off”...
-
Page 16: Isd Trans-Light Led Strip Replacement
ISD TRANS-LIGHT LED STRIP REPLACEMENT (IF EQUIPPED) ISD TRANS-LIGHT LED STRIP REPLACEMENT CONT’D WARNING Make sure the freezer is disconnected from the power supply before any service. Press the freezer switch to the “Off” position then unplug the power cord from electrical receptacle. All service work must be conducted by a certified technician only.
