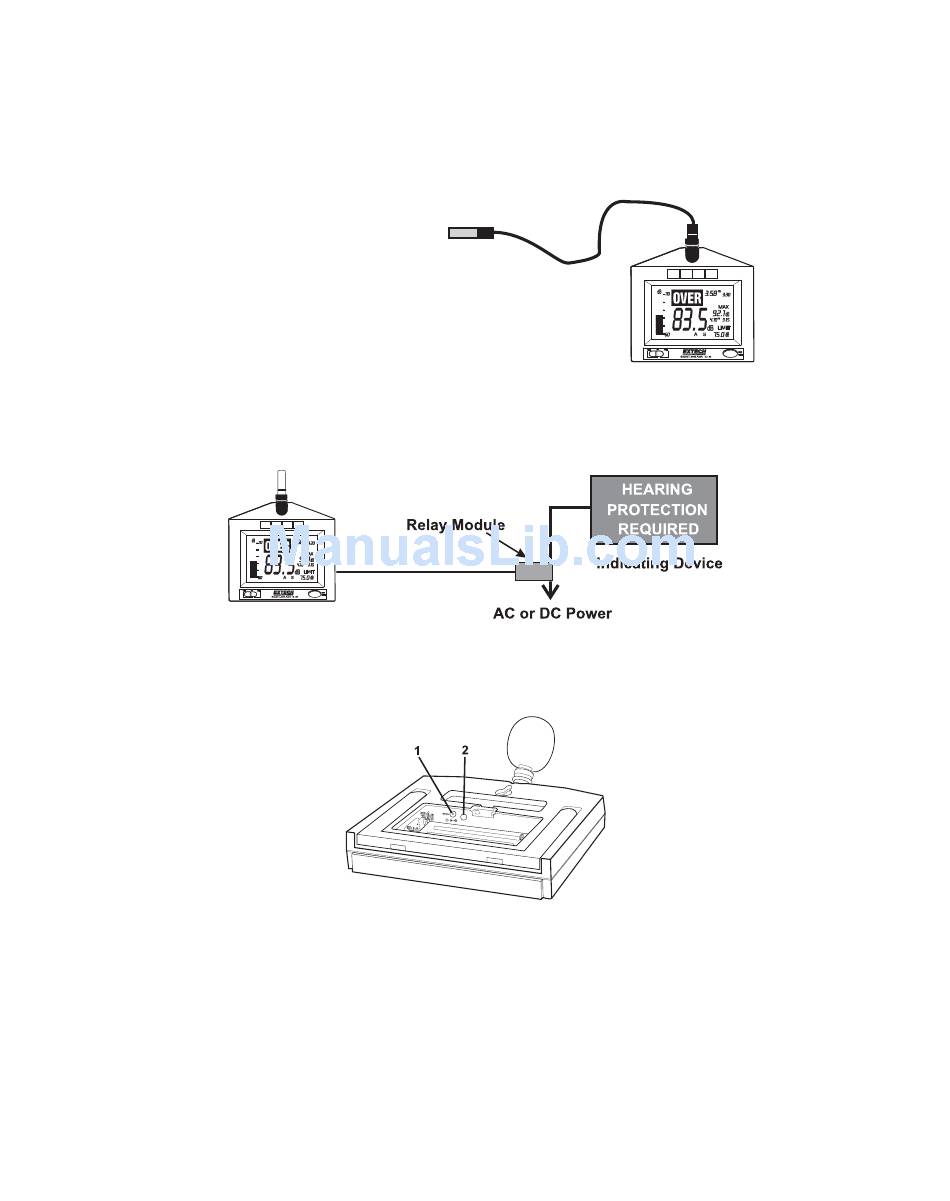

Remote Microphone (optional)
Alarm Output (optional)
Rear AC Adaptor and Alarm outputs.
Find Quality Products Online at:
The optional 15' remote microphone cable can be
used to place the microphone in one location while viewing
the dB levels and/or generating a high limit alarm at another location. To
remove the microphone, unscrew the holding collar and lift the
microphone off the connector. The extension cable can then be plugged
into the matching connectors. Calibration should be performed after the
cable is installed.
The alarm output drives the optional Remote Alarm Relay Module (cable and relay) when the LIMIT
set point is exceeded. The relay module can be used to power external warning signs, "QUIET"
signs or other indicating devices when the sound level is higher than the programmed limit. Refer to
the manual supplied with the module for connection information.
GlobalTestSupply
www.
7
SL130-EU-EN v3.6 08/13
