Gentex UL 1971 COMPLIANT Installation Instructions

THIS APPLIANCE WILL NOT OPERATE WITHOUT ELECTRICAL POWER. AS FIRES
FREQUENTLY CAUSE POWER INTERRUPTIONS, GENTEX SUGGESTS YOU DISCUSS
FURTHER SAFEGUARDS WITH YOUR LOCAL FIRE PROTECTION SPECIALIST.
VI. CLEANING AND MAINTENANCE
Each notification signaling appliance should be maintained in reliable operating condition.
Periodic inspections and tests should be made to assure proper operation of the appliances.
Visible appliances may require periodic cleaning to remove dust or debris that may have
accumulated on the appliance. The frequency of cleaning will depend on the local ambient
conditions.
VII. TO RETURN A GXS REMOTE STROBE UNIT
Should you experience problems with your GXS Remote Strobe unit, proceed as follows.
1. Turn off electrical power to the auxiliary alarm circuit.
2. Unscrew the unit from the electrical box.
3. Disconnect the unit from the field wiring. Reconnect the two hot supply voltage circuits (black
wires) and the two neutral supply voltage circuits (white wires) for AC Models of the auxiliary
alarm circuit to maintain power to the other auxiliary alarm appliances in the system.
4. Carefully pack the defective unit (the manufacturer cannot be responsible for consequential
damage due to shipping or mishandling). Include your return address and complete details
as to the nature of the difficulties being experienced and date of installation.
5. Return to: Gentex Corporation, 10985 Chicago Drive, Zeeland, MI 49464. Prior to returning,
call the Gentex field service department at 1-800-436-8391 or e-mail FP_RMA@gentex.com
for a RMA number.
VIII. ELECTRICAL SPECIFICATIONS
WALL STROBE CURRENT RATINGS
Candela
177
Note: AC Voltage Range Limits: 96-132v. This product was only tested to the stated voltage
range; do not apply 80% and 110% of this range for system operation.
LIMITED WARRANTY
For a period of 36 months from the date of purchase, or a maximum of
42 months from the date of manufacture, Gentex warrants to you, the
original purchaser, that your appliance will be free from defects in
workmanship, materials, and construction under normal use and
service. If a defect in workmanship, materials, or construction should
cause your appliance to become inoperable within the warranty period,
Gentex will repair your appliance or furnish you with a new or rebuilt
replacement appliance without charge to you except for postage required
to return the appliance to us. Gentex will not reimburse you for repairs or
replacement parts provided by other parties. Your repaired or replace-
ment appliance will be returned to you free of charge and it will be cov-
ered under this warranty for the balance of the warranty period.
This warranty is void if our inspection of your appliance shows that the
damage or failure was caused by abuse, misuse, abnormal usage, faulty
installation, improper maintenance, or repairs other than those performed
by us.
ANY WARRANTIES IMPLIED UNDER ANY STATE LAW,
INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, APPLY ONLY FOR THE
WARRANTY PERIOD SPECIFIED ABOVE. PLEASE NOTE THAT
SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS, SO THE ABOVE EXCLUSION MAY NOT
APPLY TO YOU.
Important Notice:
These materials have been prepared by Gentex Corporation ("Gentex") for informational purposes only, are necessarily summary, and are not purported to
serve as legal advice and should not be used as such. Gentex makes no representations and warranties, express or implied, that these materials are
complete and accurate, up-to-date, or in compliance with all relevant local, state and federal laws, regulations and rules. The materials do not address all
legal considerations as there is inevitable uncertainty regarding interpretation of laws, regulations and rules and the application of such laws, regulations
and rules to particular fact patterns. Each person's activities can differently affect the obligations that exist under applicable laws, regulations or rules.
Therefore, these materials should be used only for informational purposes and should not be used as a substitute for seeking professional legal advice.
Gentex will not be responsible for any action or failure to act in reliance upon the information contained in this material.
GENTEX CORPORATION
10985 CHICAGO DRIVE, ZEELAND, MI 49464
PHONE: 800-436-8391
550-101-T
Regulated 120VAC
Max. Operating Current(mA)
209
GENTEX WILL NOT BE LIABLE FOR ANY LOSS, DAMAGE,
INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND
ARISING IN CONNECTION WITH THE SALE, USE OR REPAIR OF
THIS APPLIANCE. THE MAXIMUM LIABILITY OF GENTEX SHALL
NOT IN ANY CASE EXCEED THE PURCHASE PRICE PAID BY YOU
FOR THE APPLIANCE. PLEASE NOTE THAT SOME STATES DO NOT
ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CON-
SEQUENTIAL DAMAGES, SO THE ABOVE EXCLUSION MAY NOT
APPLY TO YOU.
If a defect in workmanship, materials, or construction should cause
your appliance to become inoperable within the warranty period, you
must return the appliance to Gentex postage prepaid. You must also
prove to the satisfaction of Gentex the date of purchase of your
appliance. Warranty service may only be performed by Gentex
personnel at Gentex's facilities in Zeeland, Michigan. You must also pack
the appliance to minimize the risk of it being damaged in transit. You
must also enclose a return address. Appliances returned for
warranty service should be sent to: Gentex Corporation, 10985 Chicago
Drive, Zeeland, MI 49464. If we receive an appliance in a damaged
condition as the result of shipping, we will notify you and you must file a
claim with the shipper.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU
MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO
STATE.
www.gentex.com
REMOTE VISIBLE SIGNALING APPLIANCE
Installation Instructions-Owner's Information
I. INTRODUCTION

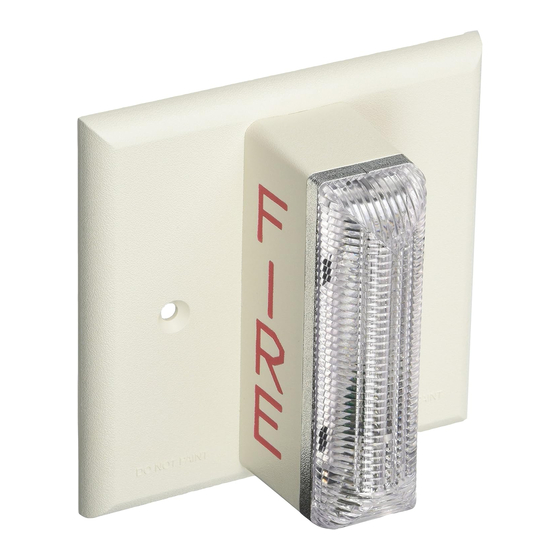

The Gentex model GXS Remote Strobe is a high quality remote visible signaling appliance. The
high-intensity strobe utilizes a Xenon flash tube which generates a high-intensity light, visible
from all sides of the lens. The GXS Remote Strobe is intended to provide a visible notification
signal for the purpose of life safety and property protection. This appliance is ideal for hotels,
apartments, hospitals, rest homes or wherever dependable visible alarms are required. This
appliance is listed in compliance with UL 1971, Signaling Appliances For The Hearing Impaired.
II. LOCATION
This appliance is intended for use in Fire Alarm Systems and is to be installed in accordance with
this installation manual, the recommendation of the local authorities having jurisdiction, and other
NFPA Standards that provide standards on notification appliances for protective signaling
systems. The Gentex GXS Remote Strobe is intended for indoor installation only and is not
listed for outdoor or drip proof applications.
Wall-mounted appliances shall have their bottoms at heights above the finished floor of not less
than 80 in. (2m) and no greater than 96 in. (2.4m)**. Spacing shall be in accordance with Table
A. If a room configuration is not square, the room size that will entirely encompass the room or
subdivide the room into multiple squares shall be used.
WARNING! Visual signal must be in the direct viewing area of the occupant in order to be seen.
WARNING! Visual signal can not be seen when objects such as doors, furniture or walls block
visual signal.
NOTICE: Visual signals for the hearing impaired are only one method of alerting the hearing
impaired. Visual signals may not be the preferred method for notifying all hearing
impaired individuals.
Table A
Room Spacing for Wall-Mounted Visible Appliances per NFPA 72, 2007 Edition
Maximum Room Size
Meters
6.10 x 6.10
8.53 x 8.53
9.14 x 9.14
12.2 x 12.2
13.7 x 13.7
15.2 x 15.2
16.5 x 16.5
16.8 x 16.8
18.3 x 18.3
19.2 x 19.2
20.7 x 20.7
21.3 x 21.3
24.4 x 24.4
27.4 x 27.4
30.5 x 30.5
33.5 x 33.5
36.6 x 36.6
39.6 x 39.6
NA = Not Allowable
Distance from Ceiling to Top of Lens
greater than or equal to 24" (610mm)
less than 24" (610mm)
WARNING! Visual signal must be installed within 16 feet of the pillow when
6-1-93
used in a sleeping area.
Page 4
GXS REMOTE STROBE
UL 1971 COMPLIANT
Minimum Required Light Output ( Effective Intensity, Cd)
One Light per Two Lights per Room
Feet
Room (Located on Opposite Walls)
20 x 20 15 NA
28 x 28 30 Unknown
30 x 30 34 15
40 x 40 60 30
45 x 45 75 Unknown
50 x 50 94 60
54 x 54 110 Unknown
55 x 55 115 Unknown
60 x 60 135 95
63 x 63 150 Unknown
68 x 68 177 Unknown
70 x 70 184 95
80 x 80 240 135
90 x 90 304 185
100 x 100 375 240
110 x 110 455 240
120 x 120 540 305
130 x 130 635 375
**Effective Intensity Requirements for Sleeping Area
Visible Notification Appliance
Four Lights per Room (One
Light per Wall)
NA
NA
NA
15
19
30
30
28
30
37
43
60
60
95
95
135
135
185
Intensity
110 Cd
177 Cd
550-0101
Page 1
