Tregaskiss TOUGH GUN I.C.E. Technical Manual Addendum

TOUGH GUN I.C.E. INSTALLATION
NOTE:
Tregaskiss LSR Unicable not available for TOUGH GUN I.C.E Gun assemblies. Motoman OEM unicables
MUST be used for TOUGH GUN I.C.E. installations.


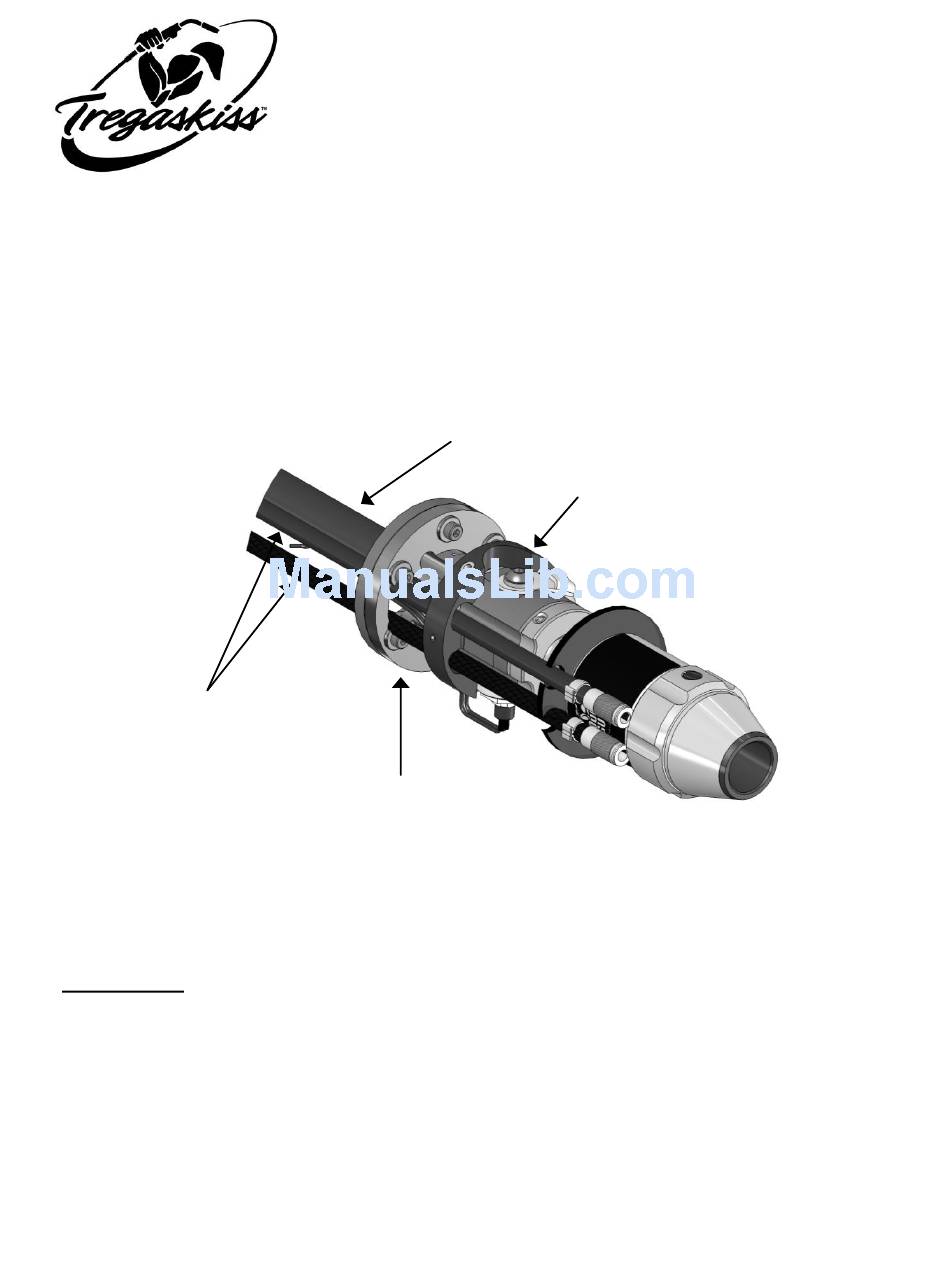

Pull the red and blue water lines through the Flange-Cable Connector and Cover Mounting Ring as
shown.
RED
TOUGH GUN I.C.E. WATER LINES
INSTALLING NECK / NECK REPLACEMENT
IMPORTANT!
Remove consumables (i.e. retaining head, nozzle and contact tip) before installing neck. Failure
to do so with result in improper installation.

Twist the hand nut clockwise to UNLOCK. IMPORTANT: To prevent damage to the neck, ensure that the
hand nut is always in the UNLOCK position when inserting a neck.

Insert the neck into the connector housing. IMPORTANT: The neck is fully inserted only when the neck
bottoms out and the insertion depth guide (INSERT TO HERE) on the neck meets up with the connector
housing.

Release the hand nut allowing it to return to the LOCKED position. IMPORTANT: Do not release the hand nut
unless the neck has been fully inserted or damage to the neck may result.
TECHNICAL GUIDE ADDENDUM
TOUGH GUN I.C.E.™ Neck Installation
BLUE
FLANGE-CABLE CONNECTOR
TOUGH GUN™ ThruArm™ G2 Series
MOTOMAN OEM CABLE
COVER MOUNTING RING
for Motoman® Robots
