Vezco PRO-NVR-Smart Quick Start Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO-NVR-Smart and is the answer not in the manual?

Questions and answers

Related Manuals for Vezco PRO-NVR-Smart

Summary of Contents for Vezco PRO-NVR-Smart

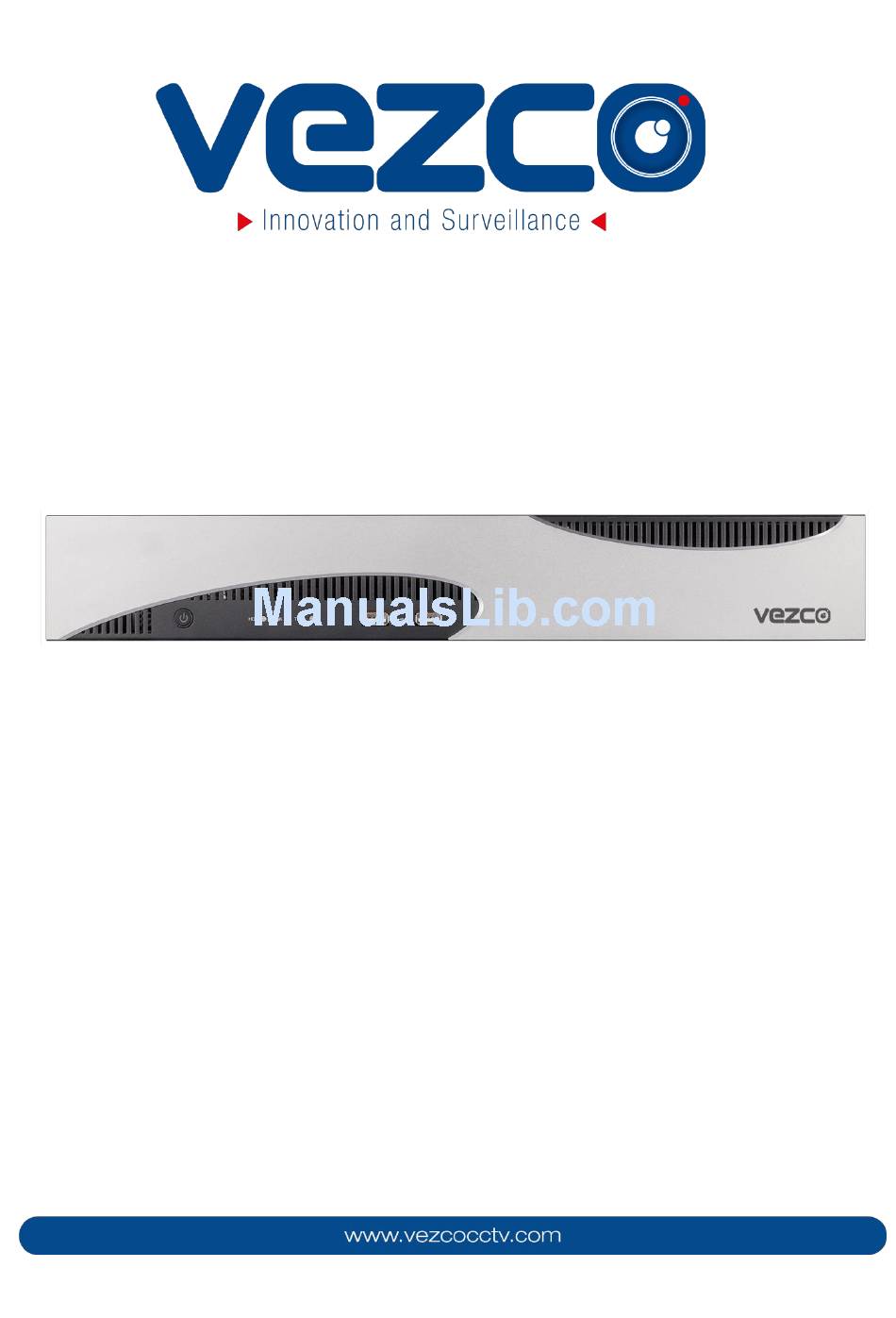

  • Page 1 Quick Start Guide...
  • Page 2 SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. VEZCO SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USEDWITH ILLEGITIMATE PURPOSES.
  • Page 3 Quick Start Guide of PRO-NVR-Smart Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 4 Quick Start Guide of PRO-NVR-Smart Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions” Warnings: Serious injury or death may occur if any of the warnings are neglected.
  • Page 5 Quick Start Guide of PRO-NVR-Smart with the same or equivalent type only. Dispose of used batteries according to the instructions provided by the battery manufacturer. Symbol Conventions The symbols that may be found in this document are defined as follows.

  • Page 6: Table Of Contents

    Quick Start Guide of PRO-NVR-Smart TABLE OF CONTENTS About This Document ........................6 Overview ............................6 NVR Pre-Installation ......................... 6 NVR Installation ..........................6 Front Panel ............................7 Rear Panel ............................8 HDD Storage Calculation Chart ...................... 9 Basic Hardware Connection ......................10 Network Connection ........................

  • Page 7: About This Document

    Quick Start Guide of PRO-NVR-Smart About This Document This guide is written for the NVR admin user. It briefly explains how to install your NVR as well as how to configure some of its basic features. You can find the user manuals for detailed instructions and configuration about NVR at www.vezcocctv.com.

  • Page 8: Front Panel

    Quick Start Guide of PRO-NVR-Smart Front Panel Name Function Description POWER Power on/off switch. Flicker green/red when data is being read from/written to HDD normally/abnormally. Steadily light when network connection Link functioning properly. Indicator Turn off when NVR disconnects from network.

  • Page 9: Rear Panel

    Quick Start Guide of PRO-NVR-Smart Rear Panel No. Item Description Network interfaces for the cameras and to provide PoE Interface power over Ethernet. ALARM IN Connector for alarm input. ALARM OUT Connector for alarm output. LAN Interface LAN network interfaces.

  • Page 10: Hdd Storage Calculation Chart

    Quick Start Guide of PRO-NVR-Smart HDD Storage Calculation Chart The following chart shows an estimation of storage space used based on recording at one camera for an hour at a fixed bit rate. Bit Rate Storage Used 96 K 42 MB...

  • Page 11: Basic Hardware Connection

    Quick Start Guide of PRO-NVR-Smart Basic Hardware Connection Before you can access the station via network, you need to properly power on the station and connect it to network. Network Connection Note: Consult your network administrator before installing the station to avoid possible network conflicts.

  • Page 12: Peripheral Connections

    Quick Start Guide of PRO-NVR-Smart 5. Repeat the above steps to install other hard disks onto the NVR. After having finished the installation of all hard disks, re-install the cover and fasten screws. Peripheral Connections Wiring of Alarm Input The alarm input is an open/closed relay. To connect the alarm input to the device, use the following diagram.

  • Page 13: Using Of Alarm Connectors

    Quick Start Guide of PRO-NVR-Smart motherboard in the NVR). Use an external relay for safety (as shown in the figure above). There are 2 jumpers (JP1, and JP2) on the motherboard, each corresponding with one alarm output. By default, jumpers are connected. To connect an AC load, jumpers should be removed.

  • Page 14: Network Parameters Settings

    Quick Start Guide of PRO-NVR-Smart  You must change this default password to better protect against security risks, such as the unauthorized access by others to the product that may prevent the product from functioning properly and/or lead to other undesirable consequences.

  • Page 15: Managing Installed Hard Disks

    Quick Start Guide of PRO-NVR-Smart Obtain an IP address (DNS server address) automatically: You can get IP settings assigned automatically if your network supports this capability. Use the following IP address (DNS server address): Please ask your network administrator for the appropriate IP settings.
  • Page 16 Quick Start Guide of PRO-NVR-Smart Note: If the following dialog pops up, click Cancel to continue. Check the status of the disk. If the newly installed disk status is not Unallocated, perform the following steps to make it work properly.
  • Page 17 Quick Start Guide of PRO-NVR-Smart Right-click the disk and select Format in the right-click menu to format the disk. Click OK in the pop-up dialog to format the disk.

  • Page 18: Accessing Nvr Via Web Client

    Quick Start Guide of PRO-NVR-Smart After formatting, right-click the disk and select Delete Volume in the right-click menu. Check the disk status and it changes to Unallocated. Accessing NVR via Web Client You can access the NVR via Web Client which is a B/S client for management of NVR.
  • Page 19 Quick Start Guide of PRO-NVR-Smart Note: The address is in the format of http://NVR IP address. If you access the system locally, the IP address is 127.0.0.1 or localhost. Example: If the IP address of NVR is 172.6.21.96, and you should enter http://172.6.21.96 in the address bar.
  • Page 20 Quick Start Guide of PRO-NVR-Smart Notes:  If your password has been reset, you should log in with initial password (Abc123) and then change your password for login (see step 3-4 for details). For resetting the password, refer to User Manual of NVR Web Client (User Management).

  • Page 21: Quick Start

    Quick Start Guide of PRO-NVR-Smart  The password strength can be checked by the system. For your privacy, you must set the password to something of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.

  • Page 22: Adding The Online Device

    Quick Start Guide of PRO-NVR-Smart and manage them by areas. Log in to the NVR via Web Client, and click Physical View to open the resource management page and the following two function pages are available.  Encoding Device: Add, edit and delete the devices (network cameras and encoders).

  • Page 23: Adding Devices By Ip Address

    Quick Start Guide of PRO-NVR-Smart Template to set the recording schedule for the device and the recording task will automatically perform according to schedule. Note: If you do not export cameras to area, you cannot perform the live view, playback, event settings, etc., for the camera.

  • Page 24: Adding The Camera Via Poe Interface

    Quick Start Guide of PRO-NVR-Smart 5. If the added device is an automatic number plate recognition (ANPR) camera, you can check Added as Automatic Number Plate Recognition Unit checkbox. Note: Up to four cameras can be added as ANPR unit for viewing the license plate and vehicle information recognized by the camera via Control Client (for details, refer to User Manual of NVR Control Client).

  • Page 25: Live View

    Quick Start Guide of PRO-NVR-Smart Click Physical View and select Local Storage to enter the Local Storage page. In the Quota Information area, each color clip corresponds to the storage space allocated to a camera. Note: If an exclamation mark appears near the disk, click Initialize to initialize the hard disk.

  • Page 26: Recording Schedule Settings And Playback

    Quick Start Guide of PRO-NVR-Smart 6. (Optional) Check the checkbox Enable Auto-login to log into the software automatically. 7. Click Login to enter the Control Client. Notes:  If failed password attempt of current user is detected, you are required to input the verification code before you can log in.

  • Page 27: Playback

    Quick Start Guide of PRO-NVR-Smart  Stream Type: Select stream for recording.  Pre-Record: Record video from periods preceding detected events. The default value is 5 seconds and not editable.  Post-Record: Record video from periods following detected events. The default value is 10 seconds and not editable.

  • Page 28: Configuring Motion Detection Event

    Quick Start Guide of PRO-NVR-Smart Click the Event & Alarm and select Event to enter the Event Configuration page. Configuring Motion Detection Event Note: The camera exception types vary according to the connected device. Here we take the introduction of motion detection settings as an example. For the settings of other camera exception types (e.g., video loss, video tampering), please refer to the User...

  • Page 29: Checking Event Logs

    Quick Start Guide of PRO-NVR-Smart  Related Cameras: Select the cameras for viewing the live video and playback when alarm occurs on the Alarm Center of Control Client.  Lock Video Files for: Set the time duration for protecting the video file from being deleted.
  • Page 30 Quick Start Guide of PRO-NVR-Smart...
