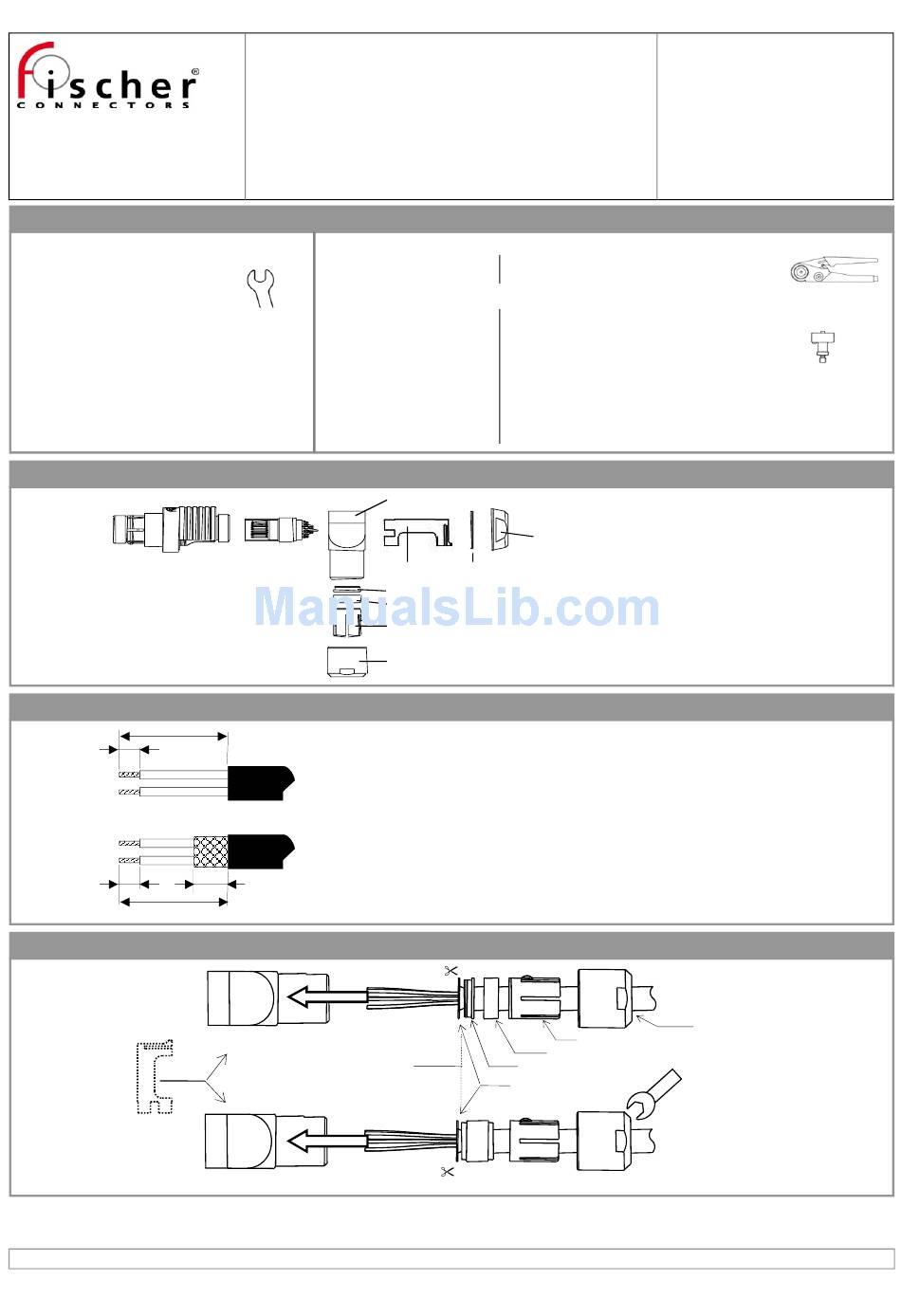

FISCHER WSO 1031 Assembly Instruction

Fischer Connectors SA
Saint-Prex, Switzerland
Phone +41 21 800 95 95
Fax +41 21 800 39 24
www.fischerconnectors.com
mail@fischerconnectors.ch
Tool Required
For all versions: Fischer Part Number
• Flat Spanners:
• 12 mm TX00.012
• Wire Cutter
• Stripping Tool
• Soldering Iron
1 - Disassemble Connector
Connector
Body (a)
2 - Strip Cable
A
B
A
3 - Assemble Clamp Set
Sealed Clamp Version
See step 4:
with large
cables, insert
spacer before
Unsealed Clamp Version
All communications to third parties or the reproduction in any form, even partial, are prohibited without our written consent.
Document No. 600.00.439
Connector : WSO 1031
with sealed or unsealed cable clamp
Additional tools for Crimp Contact versions:
• Crimping Tool for:
• Positioner for:
Contact
Block (b)
A ≈ 20-22 mm
B ≈ 2 mm
C ≈ (6 – 1/2 cable Ø) mm
(1) These values are given for reference and must
be adjusted to each specific cable
construction.
C
It is recommended to strip "B" after step 3.
Right Angle Body (c)
Jacket position for
non-shielded cables
© Fischer Connectors SA / All rights reserved
This document is the property of Fischer Connectors SA.
Rev : 1.2 Date : 18-May-2015
• 0.5 to 1.3mm contacts
• 0.5mm male contacts
• 0.5mm female contacts
• 0.7mm male contacts
• 0.7mm female contacts
Right Angle Body (c)
Back Nut (f)
Spacer (d) O-ring (e)
Ring (g)
Seal (h)
Cable Clamp (i)
Cap Nut (j)
(1)
(1)
(1) (2)
(*)
Ring (g)
Cable Shield
(*)
(*) See note (2) in step 2
Established by : ARZ/VGI
Page 1/2
Assembly Instruction
Instruction de Montage
Fischer Part Number
TX00.240
TX00.301
TX00.303
TX00.304
TX00.305
Or trim shield after step 3
(2)
if possible
Cap Nut (j)
Cable Clamp (i)
Seal (h)
12
Recommended torque value: 1.5 Nm
(depending on cable)
Threadlocking adhesive recommended
Approved by : SKE
Montageanleitung
