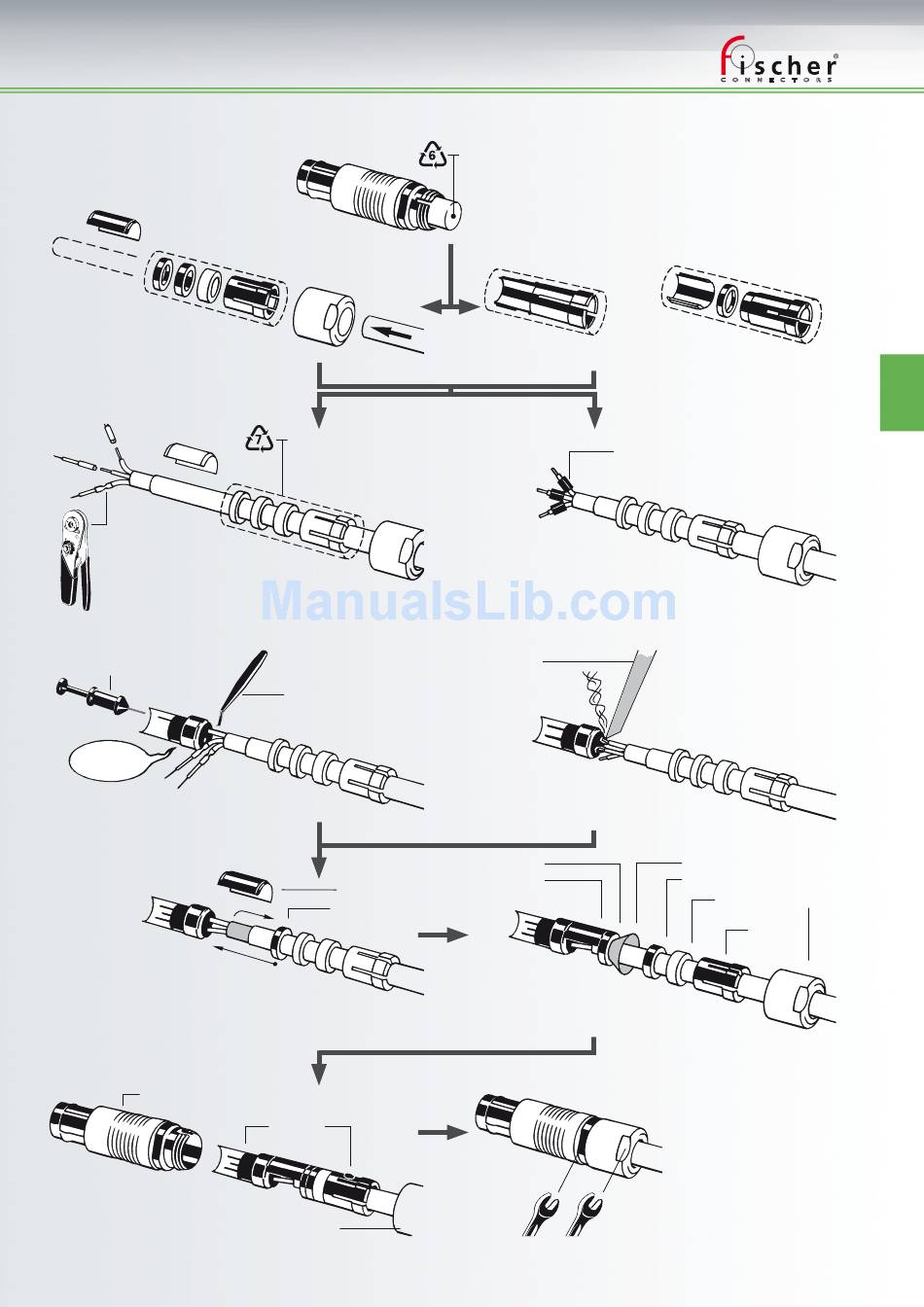

FISCHER 102 Series Assembly Instructions

Mu lti po le Low Vo lt ag e
C a b le Asse m b l y I ns tr u ct ion s
SEALED VERSION
2. Slide piece parts over the cable
(possibly with parts in plastic tube)
3. Strip cable and wire
4. Fit wire into contact barrel and crimp

CRIMP CONTACTS

Extraction tool for contact
replacement
CLIC !
6. Slide the ring to the front end
7. Bend cable screen outwards
8. Insert half shell and retain with the ring
Body
11. Push the cable assembly
into the body, orienting
the guides to the slots
Plastic tube (BDS) with cap (PE)
5. Inserts contacts into
insulator and push them
home by means
of insertion tool
Half shell
Ring
10. Trim protuding
screen strands
Guides
Clamp nut
1. Remove shipping retainer (PS)
and contact block
UNSEALED VERSION
Unshielded clamp
Shrinkable tubes for better
terminal insulation
3'. Strip cable and wires
4'. Tinning of strands recommended

SOLDER CONTACTS

Solder iron
Pull shrinkable tubes over
contact terminals and shrink
Ring
Half shell
9. Slide washer, seal and clamp
against the ring and retain the
screen between ring and washer
2 1
C O N N E C T O R S
Shielded clamp
5'. Solder each wire to the
corresponding contact
Screen
Washer
Clamp nut
Seal
Clamp
12. Screw clamp nut to the
body and tighten by
means of wrenches
The assembly
is now finished
