Reelcraft Industries, Inc. 3900 SERIES Operation Manual

3900 SERIES
IMPORTANT
Read this manual carefully before installing,
operating or servicing this equipment.
PERSONAL SAFETY
Personal injury and/or equipment damage may result
if proper safety precautions are not observed.
WARNING:
Even low pressure can
cause irreparable damage or death.
Exercise extreme caution while
operating or servicing this equipment.

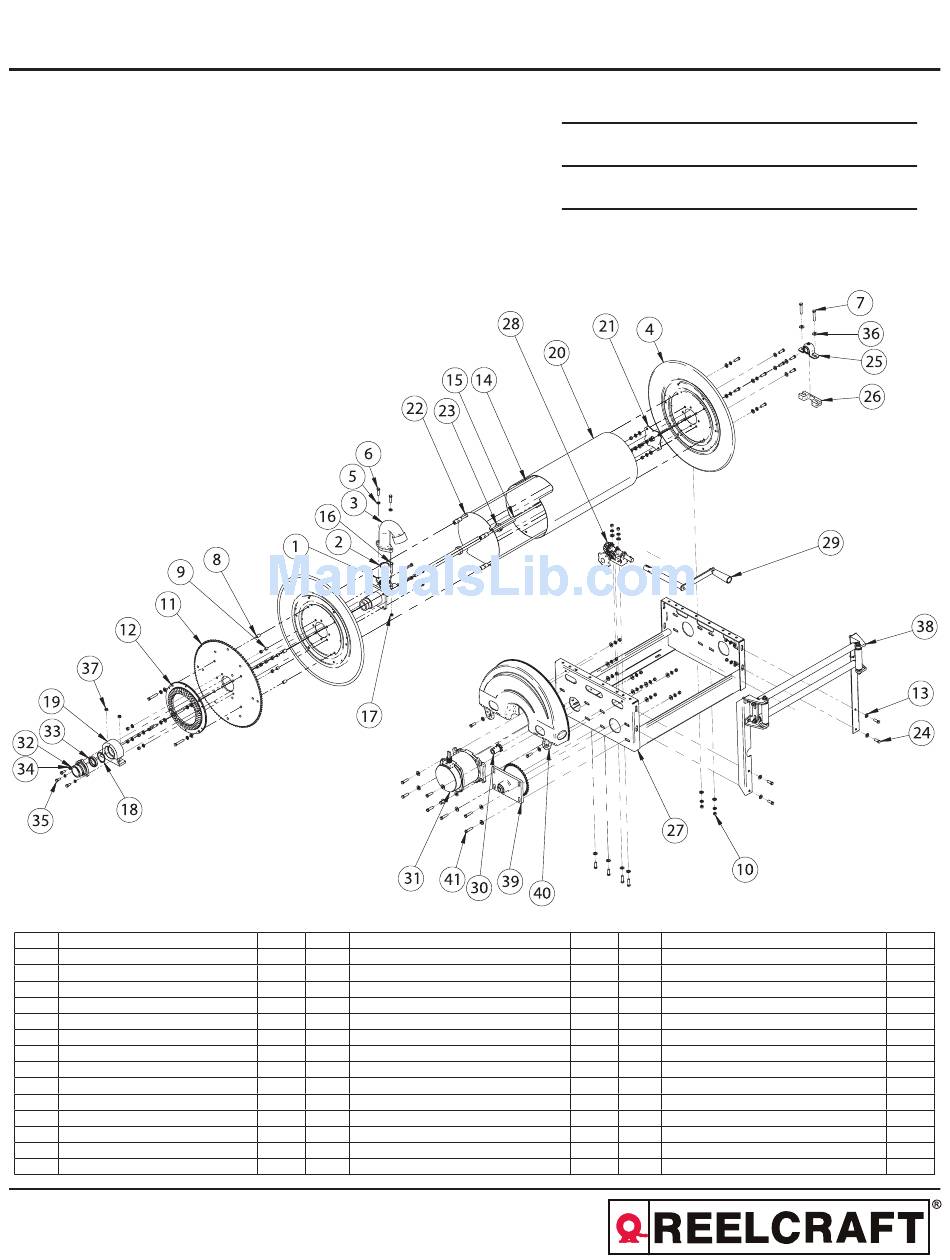

Item # Description
1 SPINDLE
2 S211-224 O-RING
3 GOOSENECK
4 HEAD
5 S339-616 LOCK WASHER 3/8"
6 S347-66 HEX CAP SCREW 3/8"-16 UNC X 1.25"
7 S347-69 HEX CAP SCREW 3/8"-16 UNC X 2"
8 S390030-3 SPACER 3/8" X 3/4" LG
9 S390030-1 SPACER 3/8" X 7/16" LG
10 S338-6 HEX NUT 3/8"-16 UNC
11 SPROCKET, LARGE
12 GEAR, BEVEL
13 S350-41 WASHER SMALL 3/8"
14 TIE ROD
Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725
Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605
Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com
Hose Reel Operations Manual
Quantity Item # Description
1 15 SUPPORT SHAFT
1 16 S376-59 HEX CAP SCREW (5/16-18 X 2)
1 17 S85-7 NYLOC NUT (5/16-18)
2 18 SNAP RING
36 19 BEARING HOUSING ASSEMBLY
8 20 DRUM
10 21 390610-35 HEAD INSERT
4 22 PLATE REINFORCING
4 23 COLLAR, LOCKING
30 24 S347-65 HEX CAP SCREW 3/8"-16 UNC X 1"
1 25 390798 BEARING 15/16" ID
1 26 PAT888AL CASTING BEARING SPACER
34 27 FRAME ASSEMBLY
4 28 HANDWIND ASSEMBLY
ORDER #:
MODEL #:
SERIAL #:
Quantity Item #
1 29
1 30
1 31
1 32
1 33
1 34
1 35
1 36
2 37
16 38
1 39
1 40
1 41
1
Description
CRANK AND HANDLE ASSEMBLY
SPROCKET MOTOR
MOTOR
INLET
SEAL AND RING ASSEMBLY
S339-516 LOCK WASHER
S347-53 HEX CAP SCREW 5/16"-18 X 3/4"
S350-6 WASHER 3/8"
S348-8 NUT NYLOC HEX 3/8"
ROLLER GUIDE ASSEMBLY
IDLER ASSEMBLY / or CLUTCH ASSEMBLY
CHAIN GUARD
S347-67 HEX CAP SCREW 3/8"-16 UNC X 1.5"
Quantity
1
1
1
1
1
3
3
20
2
1
1
1
4
