OWNER'S MANUAL

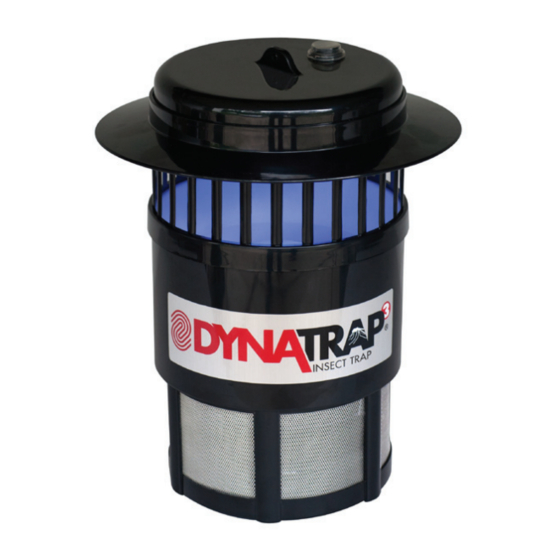

FLYING INSECT TRAP
MOdEL: dT1000
Thank you for purchasing the
®
DYNATRAP flying insect trap!
Please read and understand these instructions thoroughly for
correct usage and keep it in a safe place for future reference.
LIMITEd WARRANTY
warranties to the original purchaser that this product is free from
defective materials and workmanship. This warranty is limited to remedy any
defective part for a period of one year from date of original date of purchase. Retain
your original receipt as proof of purchase. This warranty does not apply to the light
bulb, nor to, in our judgment, misuse or abuse. If this unit has been altered, no
warranty is in force. This warranty does not apply if this unit is purchased outside
the United States, excluding Canada and Mexico. In no case shall
liable for any accidental, punitive, consequential, or any other damages of any kind
for breach of this or any other warranty, expressed or implied, whatsoever. Some
states do not allow limitation on how long an implied warranty lasts, so the above
limitation or exclusion may not apply to you. This warranty gives you specific legal
rights, and you may also have other rights that vary from state to state.
PARTS & ACCESSORIES AVAILABLE
PART dESCRIPTION
31050 4-Watt Replacement Fluorescent Bulb (2 pieces)
31051 Fan Blade Replacement
31051 Fan Blade and Motor Replacement
dynamic Solutions Worldwide, LLC
12247 Fairview Ave.
Milwaukee, WI 53226
Phone: 414-431-2819
Fax: 414-453-9975
Toll free: 1-877-403-Trap(8727)
Or visit us online at www.dynatrap.com
EPA Est. No. 086034-CHN-001
EPA Est. No. 087837-WI-001
©2011 DSW-LLC
IMPORTANT SAFETY INSTRUCTIONS
Please read these instructions before using the DYNATRAP Insect Trap and keep for future reference.
®
1. Always turn unit off and disconnect plug before servicing, cleaning, or changing bulbs.
2. Do not mount the unit near heat, gas, oil or other flammable materials.
3. Mount product out of reach from children.
4. Never operate this product if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged,
or if it has been dropped into water.
5. This product is equipped with 2-conductor cord and 2-prong polarized plug as a safety feature. This plug will fit in a polarized
outlet only one way. If the plug does not fully fit in the outlet, then reverse the plug. If it still does not fit, then contact a
qualified electrician. To reduce the risk of electrical shock, only plug into a properly installed outlet. Do not attempt to
defeat this safety feature.
6. Do not insert fingers or any foreign objects into the unit while it is connected to an electrical outlet.
7. Collected insects within the unit may contribute to fire, so clean insects from the unit frequently.
8. Do not clean this product with water spray. Do not place where it can fall into water, or near flammable materials.
9. Do not touch fan while in motion.
10. Do not abuse cord—never carry or hang unit by cord or yank it to disconnect from receptacle. Keep cord away from heat,
oil, or sharp edges.
11. Extension cords used with this product must be marked with suffix letters "W-A" and with a tag stating "Suitable for Use
with Outdoor Appliances".
12. Use only extension cords that have plug and receptacles that match the product plug. Replace or repair damaged cords.
HOW THE dYNATRAP ® FLYING INSECT TRAP WORKS
Flying insects are attracted to the unit by the light along with the CO
the TiO coat, and then the fan pulls the insects into the net, trapping them until they dehydrate and die.
2
The screened base can be removed, so you can periodically empty the contents into the trash. The screen allows
you to see what's trapped in the compartment, alerting you when the net needs to be emptied.
INSTALLATION
be 1. Unpack unit. Save carton for off-season storage.
2. If hanging or mounting the unit place approximately 5-6 feet above floor/ground level for optimal catch rate and
easy access for cleaning.
3. Plug cord into an outdoor outlet or UL listed extension cord as described in "IMPORTANT SAFETY INSTRUCTIONS".
4. For best catch results leave unit on at all times, except when cleaning or servicing.
5. Catch rate activity will be higher at night. For best catch results it is recommended to place unit away from other competing
light sources.
ON/OFF SWITCH
FAN
RETAINING
CAGE
CLEANING
Frequent cleaning will prolong the life of the unit, insure fire
prevention and provide for more efficient operation.
1. Be sure to clean the unit at least once a week.
2. Switch the unit off and unplug before cleaning.
3. For weekly cleaning, remove the cage by
4. For major cleaning, press and separate middle body as described below in
5. When replacing retaining cage, DO NOT press or hold onto screen windows.
REPLACING BULBS
Light bulbs life expectancy is approximately 3,000 hours (or about 4 months), and should be replaced alter that
time has passed in order to maintain optimal UV effectiveness. Even though the bulb's light may be visible to you,
it's ability to attract insects diminishes over time.
1. Turn power switch 10 "off" position, UNPLUG UNIT, and allow bulbs to cool
that is generated by the photo-catalysis between the UV lamps and
2
2. Remove retaining cage, and turn unit upside down.
3. Push the funnel surrounding the fan outward with two thumbs.
4. Separate the middle body from the upper body.
5. Carefully turn the bulb counterclockwise and then pull bulb straight out.
6. Locate and inset the new bulbs into sockets, carefully turn clockwise, and make
7. After bulbs have been replaced, re-attach middle body to upper body. Make certain
Replacement Bulbs (6-Watt fluorescent bulbs) can be found of your local retailer or can be ordered
directly from
HANGER
TROUBLESHOOTING
UV BULBS
Problem:
Bulbs do not illuminate
and fan does not spin.
TiO COATED
2
Bulbs illuminate, but fan
FUNNEL
does not spin.
Fan spins, but bulbs do
AUTOMATIC DAMPER-
not illuminate.
CLOSES WHEN TURNED
OFF PREVENTING
LIVE INSECTS FROM
ESCAPING
turning it clockwise. Remove any build up from the inside
of the retaining cage and fan with a brush.
"Replacing Bulbs." (recommended once a year after peak season)
Should the screen detach from the frame, re-align the screen into the track
within the frame.
before replacing.
The middle body will detach from the upper body.
sure the prongs of the bulb are seated properly.
that middle body has snapped back into place and that fan wires are in groove
of surrounding funnel.
by calling 1-877-403-TRAP (8727) or visiting www.dynatrap.com
Possible cause: Correction:
1. No electrical power. 1. Check plug and receptacle and fuse or circuit breaker.
2. Check to make sure power is switched to the "on"
position.
1. Shorted fan. 1. UNPLUG UNIT: Examine fan to see that it is free from
foreign material, dirt or build-up of dead insects. Clean unit as
in "CLEANING" section.
1. Bulb not seated 1. Check all sockets for proper bulb seating and alignment.
properly. 2. Replace bulb if needed following instructions under "Replacing
2. Burnt out bulb. Bulbs".
