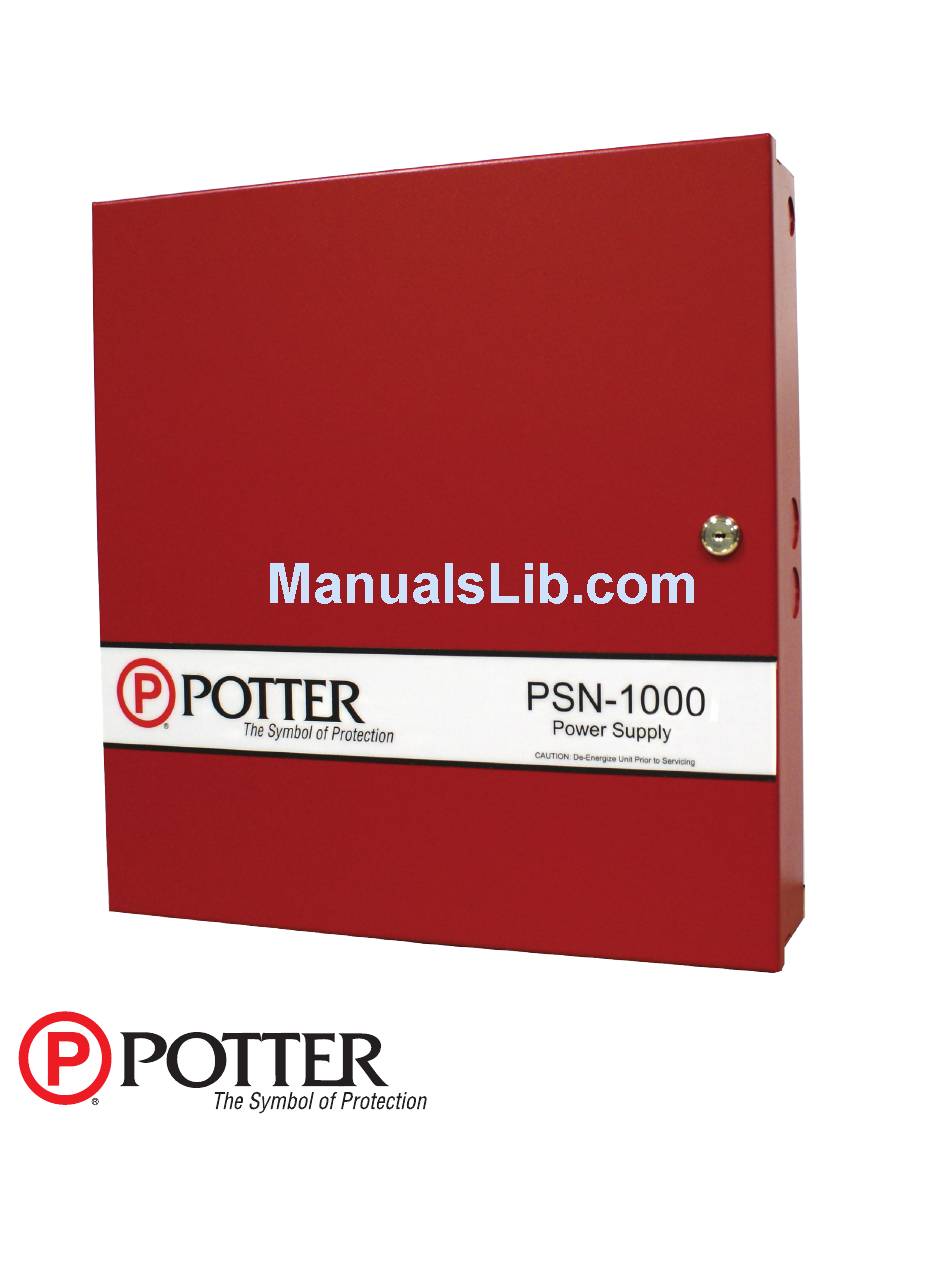

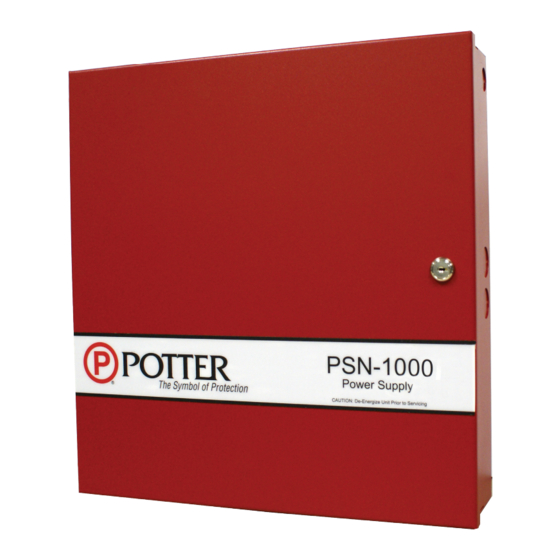

- Page 1 PSN-1000 & PSN 1000(E) Installation Manual Potter Electric Signal Company, LLC St. Louis, MO Customer Service: (866) 240-1870 • Technical Support: (866) 956-1211 • Fax: (314) 595-6999 www.pottersignal.com Document 5403599-Rev. C.-04/17...
- Page 2 PSN-1000 POWER EXPANDER-5403599-REV C-04/17 1. Installation Wiring Document PSN-1000 POWER SUPPLY 120VAC 50Hz~60Hz BLACK 240VAC 50Hz~60Hz WHITE Connect to separate unswitched AC circuit GROUND FUSE BULK COMM 120/240 VAC Jumper Position - I2 + - NAC2 + - NAC4 +...
- Page 3 PSN-1000 POWER EXPANDER-5403599-REV C-04/17 Main Supply Circuit The AC terminals are located on the power supply board. The power supply board supervises the main AC power and provides indication that the AC power is absent. 120VAC 50/60 Hz 240VAC 50/60 Hz...
- Page 4 Notification Appliance Circuits (NACs) The PSN-1000 is equipped with six NAC circuits. Each of the circuits is rated for a continuous 3 amps at 24 VDC. The outputs are supervised and regulated. The NACs reverse polarity upon activation and the board and illustrations are marked accordingly.
-
Page 5: Nac
The end of line resistor is a 5.1K ohm resistor. The resistor assembly has been evaluated in past projects and is a standard in the Potter panel product line. The Potter part number for the listed end of line assembly is... -
Page 6: Nac
PSN-1000 POWER EXPANDER-5403599-REV C-04/17 - NAC 2 + - NAC 4 + - NAC - NAC 1 + - NAC 5 + - NAC Notification Appliance Figure 4 (Class A NAC) Class A operation requires that two NAC circuits be utilized as shown in Figure 4. Up to 3 Class A circuits can... -
Page 7: Nac
The end of line resistor is a 5.1K ohm resistor. The resistor assembly has been evaluated in past projects and is a standard in the Potter panel product line. The Potter part number for the listed end of line assembly is... - Page 8 The P-Link repeater output allows for system expansion by reconditioning and repeating all P-Link communi- cations. The PSN-1000 repeater output provides an additional 1 amp at 24 VDC which can be used to power additional P-Link devices such as LCD Annunciators and/or SLC Loop expanders.
- Page 9 I total is the total current of the connected devices. When a NAC is used as a releasing circuit, the End of Line Diode (EOLD) assembly must be installed. The EOLD is Potter part number 3005012 and must be installed in accordance with the installation manual.
- Page 10 PSN-1000 POWER EXPANDER-5403599-REV C-04/17 - NAC 2 + - NAC 4 + - NAC 6 + P-LINK - NAC 1 + - NAC 5 + - NAC 3 + End of line device 5.1k ohm 1/2W Part #3005012 Note: EOL Device shall be installed in the same Releasing electrical enclosure as the releasing device.
- Page 11 The 6 NAC circuits are configured and controlled by the main control panel. The PSN-1000 transfers from AC to battery instantly upon AC failure or brownout. The trouble relay will indi- cate the low AC condition after the Low AC Report Delay has elapsed.
- Page 12 Main Comm: Flashes when P-Link commands are received from the control panel 5 Position DIP Switch A 5 position dip switch is provided for setting the ID of the PSN-1000/E. An ID in the range of 1-31 can be specified according to the table below.
-
Page 13: Nac
Use of another battery or not providing the proper clearance may result in a fire or an explosions. The PSN-1000 is required to be installed in accordance with local and state building codes and NFPA 72 (Na- tional Fire Alarm Code). -
Page 14: Nac 3
PSN-1000 POWER EXPANDER-5403599-REV C-04/17 Appendix A, Battery Calculation Work Sheets (Include for all P-Link devices being powered by the PSN-1000) Standby Total Alarm Total Description Quantity (mA) Standby (mA) (mA) Alarm (mA) Main board ( PSN-1000/1000E) LCD Remote (RA-6075R or RA-6075) - Page 15 PSN-1000 POWER EXPANDER-5403599-REV C-04/17 SLC#____ Current Draw Worksheet (Repeat for each SLCE-127 being powered by the PSN-1000) Standby Total Alarm Total Description (mA) Standby (mA) (mA) Alarm (mA) SLCE-127 Main Board Analog photo smoke detector (PSA) 0.325 0.325 Analog photo DUCT smoke detector (DSA) 0.325...
