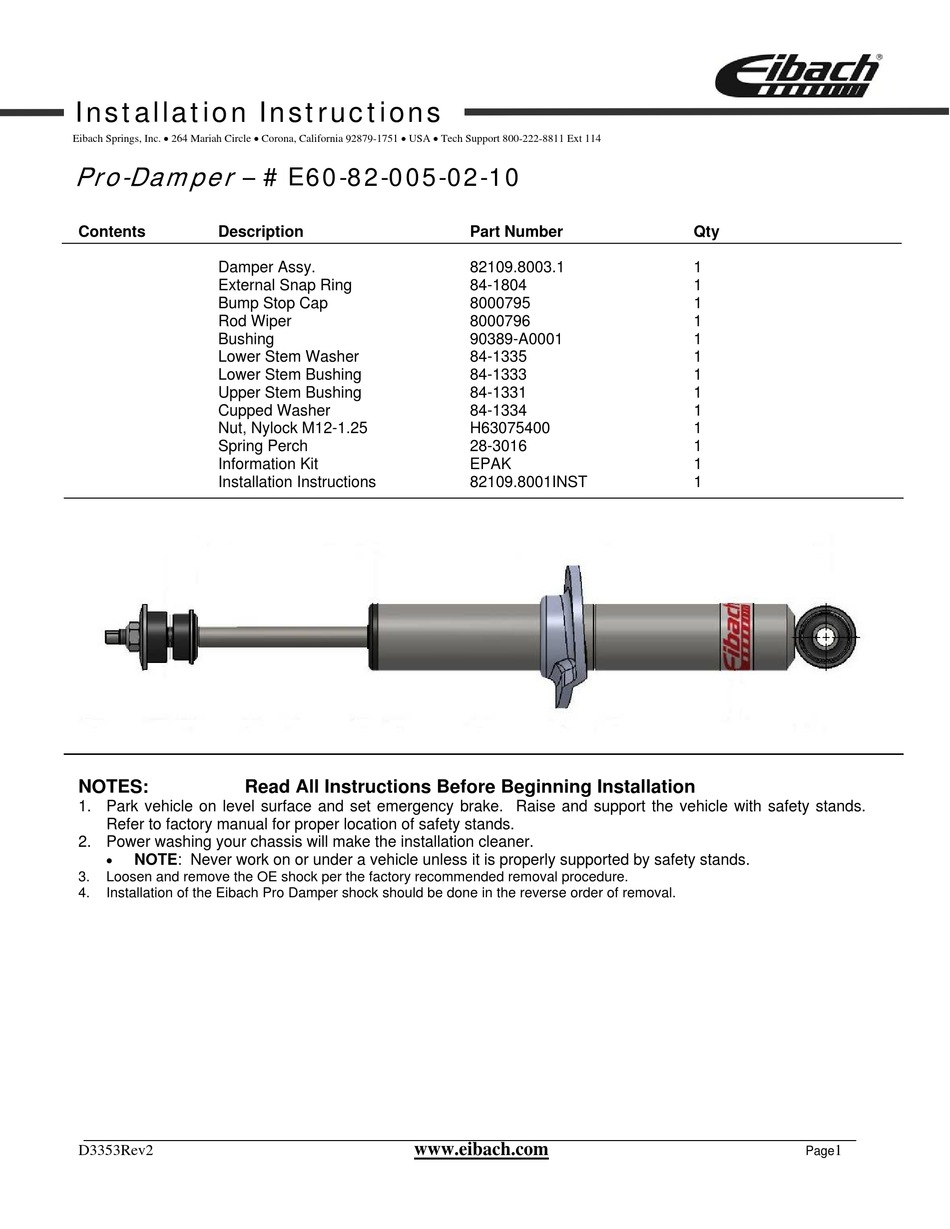

Installation Instructions

Eibach Springs, Inc.  264 Mariah Circle  Corona, California 92879-1751  USA  Tech Support 800-222-8811 Ext 114
Pro-Damper
– # E60-82-005-02-10
Contents
Description
Damper Assy.
External Snap Ring
Bump Stop Cap
Rod Wiper
Bushing
Lower Stem Washer
Lower Stem Bushing
Upper Stem Bushing
Cupped Washer
Nut, Nylock M12-1.25
Spring Perch
Information Kit
Installation Instructions
NOTES:
Read All Instructions Before Beginning Installation
1. Park vehicle on level surface and set emergency brake. Raise and support the vehicle with safety stands.
Refer to factory manual for proper location of safety stands.
2. Power washing your chassis will make the installation cleaner.
NOTE: Never work on or under a vehicle unless it is properly supported by safety stands.
3.
Loosen and remove the OE shock per the factory recommended removal procedure.
4.
Installation of the Eibach Pro Damper shock should be done in the reverse order of removal.
D3353Rev2
Part Number
82109.8003.1
84-1804
8000795
8000796
90389-A0001
84-1335
84-1333
84-1331
84-1334
H63075400
28-3016
EPAK
82109.8001INST
www.eibach.com
Qty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Page
