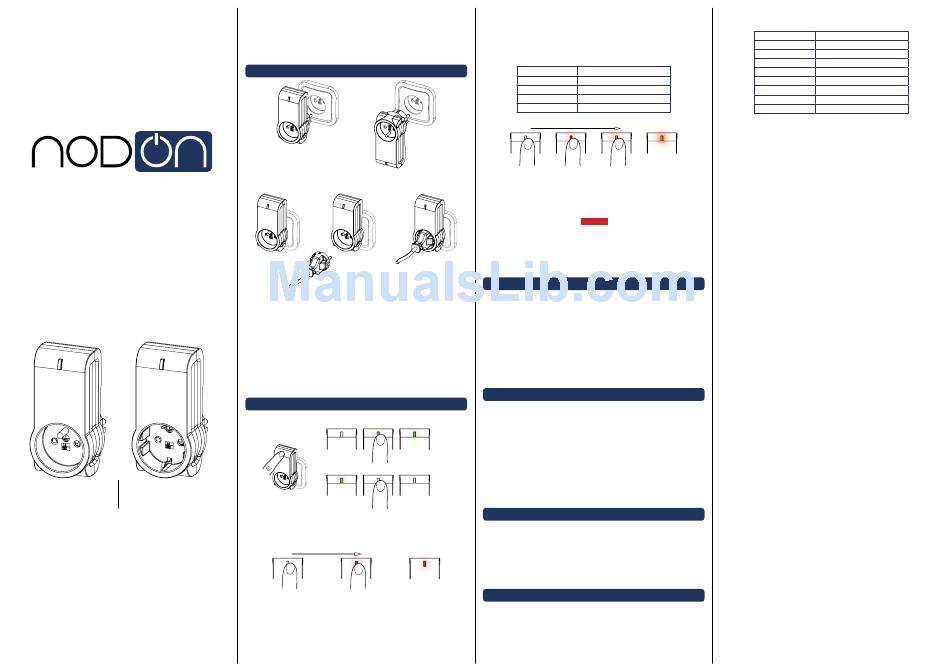

nodon ASP-3-1-00 User Manual

USER GUIDE
SMART PLUG
Smart Plug Type E Smart Plug Schuko
Reference: ASP-3-1-00 Reference: ASP-3-1-10
Power supply: 230V AC +/-10% - 50Hz
Self-consumption <1W
Max. power: - 3000W continuous (Resistive load)
- 3500W temporary (Resistive load)
Center radio frequency : 868.42 MHz
Occupied frequency band : 868.40 to 869.85 MHz
RF power Max : +4dBm
Range up to 80 meters outdoor
Range up to 40 meters indoor
Operational temperature: -10°C / 50°C
IP20
Radio protocol: Z-Wave Plus ® (500 series)
Dimensions: 51mm (W) x 36mm (D) x 104mm (H)
Weight: 137g
Warranty: 2 years
The NodOn Smart Plug allows to control (Power ON or Power
®
OFF) an electrical appliance plugged on it: bedside lamp, electrical
heater, coffee machine, etc.
The NodOn Smart Plug is compatible with the worldwide home
®
automation standard, Z-Wave ® , and all the products Z-Wave
Z-Wave Plus ® certified.
INSTALLATION
Thanks to an innovative design, the Smart Plug can be mounted on
the power outlet in either side, head up or head down.
Plug the NodOn Smart Plug on your power outlet.
1 ®
Plug the electrical appliance, you want to control, on the NodOn
2
Smart Plug.
3 The Smart Plug allows to switch ON (Power ON) or switch OFF
(Power OFF) the electrical appliance you want to control.
Switching ON or OFF can be done through the Smart Plug local
button, or any kind of Z-Wave compatible devices, such as the
®
NodOn ® Octan Remote, the NodOn ® Soft Remote or a Home
Automation Gateway.
If the electrical appliance (ex.: bedside lamp) has an ON/OFF button, make sure it's positioned
on "ON", in order that the power ON of the appliance by the Smart Plug will switch ON the lamp.
SMART PLUG MODES
LOCAL CONTROL
<1sec
<1sec
The Smart Plug can be switched ON or OFF locally, through a short
press on the local button. By default, the Smart Plug is switched
ON when the LED is green, OFF when the LED is OFF.
LEARNING MODE
2 sec {Blinking}
Press on the Smart Plug button during 2 seconds until the LED
becomes red. Release the button, the LED will then glow in red. The
Smart Plug is in "Learning mode".
To add or to remove the Smart Plug from a Z-Wave
follow "INCLUSION" or "EXCLUSION" procedures below.
If the Smart Plug is not added or removed from a network within
30 seconds (or if the button is pushed during learning mode), the
Smart Plug will automatically exit learning mode.
Expert remark: NodOn created a power efficient « Learning mode ». During this mode, the
®
Smart Plug will send its « Node Information » (NIF) at regular interval.
If the Primary Controller is battery powered (such as the NodOn
Smart Plug in « Learning mode », and then proceed to the INCLUSION/EXCLUSION procedure
® or
of your controller.
To send a single NIF, just triple press on the Smart Plug's button.
LED state Smart Plug State
Shine Red Learning mode activated
Blink in Green Successful Inclusion
Blink in Red Successful Exclusion
Blink in Orange "Learning mode" Timeout
FACTORY RESET
>5sec
To perform a factory reset, press on the Smart Plug button during
5 seconds until the LED becomes orange. Release the button, the
LED will blink red/green.
Factory Reset clears the Smart Plug's memory and set parameters
to default value.
WARNING
Please use this procedure only when the primary controller is missing or otherwise inoperable.
Resetting the Smart Plug does not mean it has been removed from Z-Wave
controller's memory.
Use the primary controller to remove the Smart Plug from its Z-Wave
"EXCLUSION" procedures below), before doing a Factory Reset.
INCLUSION PROCEDURE
To add the Smart Plug into a Z-Wave ® network
®
Plug the Smart Plug.
1
Put the Smart Plug in "Learning mode".
2
Within 30 seconds put the Z-Wave
3
mode" (See the Controller user guide for its own Inclusion
procedure).
The Smart Plug will confirm the Inclusion procedure by blinking
4
its LED in Green.
EXCLUSION PROCEDURE
To remove the Smart Plug from a Z-Wave
Make sure the Smart Plug is plugged.
1
ON
Put the Smart Plug in "Learning mode".
2
Within 30 seconds put the Z-Wave
3
mode" (See the Controller user guide for its own Exclusion
procedure).
The Smart Plug will confirm the Exclusion procedure by blinking
4
OFF
its LED in Red.
POWER FAILURE
The Smart Plug embeds a very small energy backup, which allows
it to send Notification Report on a Z-Wave
time, after a main power failure.
The Smart plug must be plugged at least 5 minutes before being
able to detect each Power Failure.
ASSOCIATION GROUPS
Using Association group, the Smart Plug is able to command or
network,
®
notify another device of a Z-Wave network.
®
The Association groups are set by the Main Controller. Once set,
the association groups allow direct control, without involving the
Main Controller in the communication.
The NodOn Smart Plug proposes 8 association groups:
®
Group number
Octan Remote), first put the
®
1
2
3
4
5
6
7
8
{Blinking}
Maximum number of devices in group: 5
This group is generally used to report information of the Smart
Plug to the Main Controller of the network.
Group 2 – Follow State
Maximum number of devices in group: 5
When the Smart Plug is switched ON (respectively OFF) - either
locally or by wireless - it will send ON (respectively OFF) command
to the associated devices.
network
® Group 3 – Follow Complementary State
Maximum number of devices in group: 5
network (follow
®
When the Smart Plug is switched ON (respectively OFF) - either
locally or by wireless - it will send OFF (respectively ON) command
to the associated devices.
Group 4 – Power Failure Notification
Maximum number of devices in group: 5
When the Smart Plug detects a power failure or recovers from a
power failure, it sends the notification report to the associated
devices.
Controller in "Learning
®
The sent Notification is "Notification Report: Power Management
– AC Disconnected / Re-connected"
Group 5 – Power Failure Set ON
Maximum number of devices in group: 5
When the Smart Plug detects a Power Failure, it will switched ON
the associated devices.
® network
Group 6 – Power Failure Set OFF
Maximum number of devices in group: 5
When the Smart Plug detects a Power Failure, it will switched OFF
the associated devices.
Controller in "Learning
®
Group 7 – Power Recover Set ON
Maximum number of devices in group: 5
When the Smart Plug detects a Power Recover, it will switched ON
the associated devices.
Group 8 – Power Recover Set OFF
Maximum number of devices in group: 5
When the Smart Plug detects a Power Recover, it will switched OFF
network during a short
®
the associated devices.
Group Name
Lifeline
Follow State
Follow Complementary State
Power Failure Notification
Power Failure – Set On
Power Failure – Set Off
Power Recover – Set On
Power Recover – Set Off
Group 1 – Lifeline
