nodon PIR-2-1-0 series User Manual

USER GUIDE
PIR - MOTION SENSOR
PIR Motion Senror by NodOn
Reference: PIR-2-1-0x
Power supply: battery CR123A 3V
Lifetime: 5 years
Center radio frequency : 868.3 MHz
Occupied frequency band : 868.0 to 868.6 MHz
RF power Max : +3dBm
Wireless range: Up to 30 meters
Detection range: Up to 5 meters
Lux sensing: 0 to 1000Lux
Operational temperature: -10°C / 45°C
EEP (Profil EnOcean ): A5-07-03
®
Dimensions: 65 mm (l) x 65 mm (L) x 39 mm (h)
Weight: 54 g
Warranty: 2 years
®
The NodOn PIR Motion Sensor allows to detect motion and trigger actions directly on
®
your actuators (such as NodOn Smart Plug, NodOn
®
EnOcean compatible Home Automation gateway. Use your NodOn
®
standalone mode with a NodOn actuator to perform simple and construction work-free
®
Smart Lighting Management, or integrate it into your EnOcean

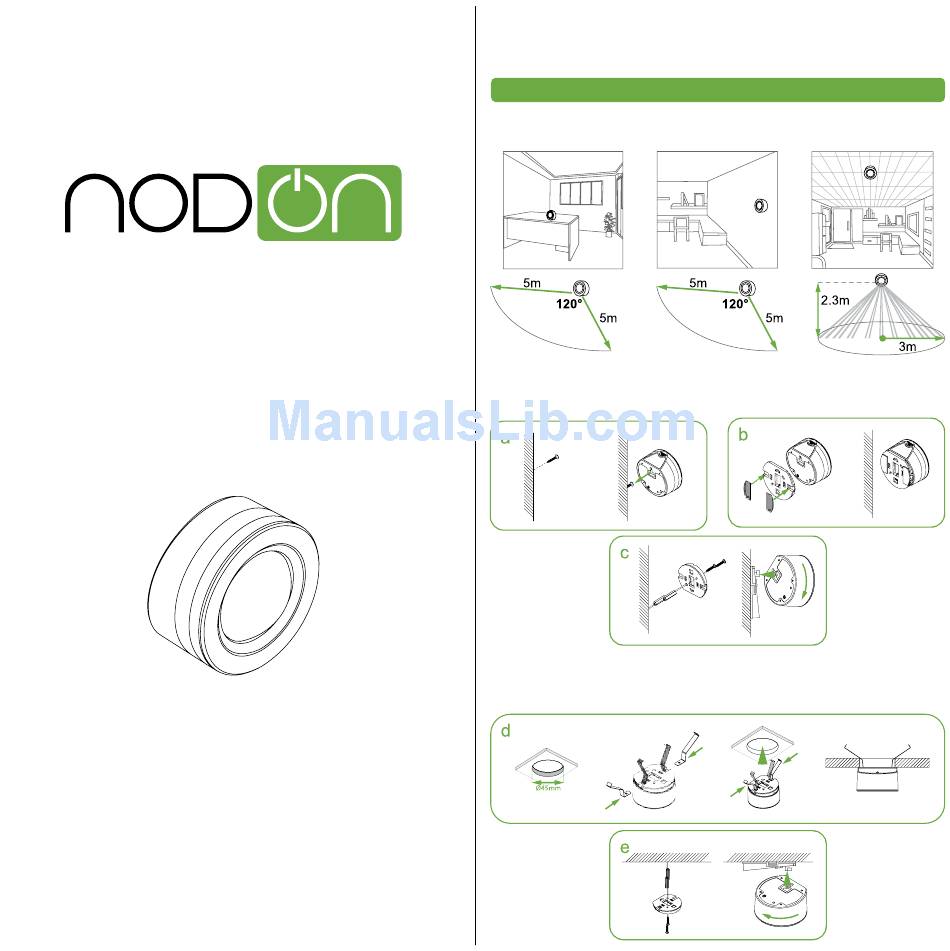

INSTALLATION
Thanks to its shape and the included accessories, you can install your PIR Motion Sensor
anywhere in your house.
On your desk
ON YOUR WALL
a Use a screw to hang your sensor on the wall.
b Stick your sensor on the wall with the double sided tape.
c Screw the support on the wall to mount your sensor on it.
ON YOUR CEILING
d Drill a 45mm diameter hole in thin ceiling to insert the included fastening hooks and
mount the support in them.
e Mount your sensor into the support.
In-Wall module, etc...) or through your
®
PIR Motion Sensor in
®
Smart Home ecosystem.
®
On your wall On your ceiling
