Tibo Plus 1.1 User Manual

Hide thumbs Also See for Plus 1.1:

Advertisement

Quick Links

Plus 1.1 / 2.1 / 3.1
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Plus 1.1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tibo Plus 1.1

Summary of Contents for Tibo Plus 1.1

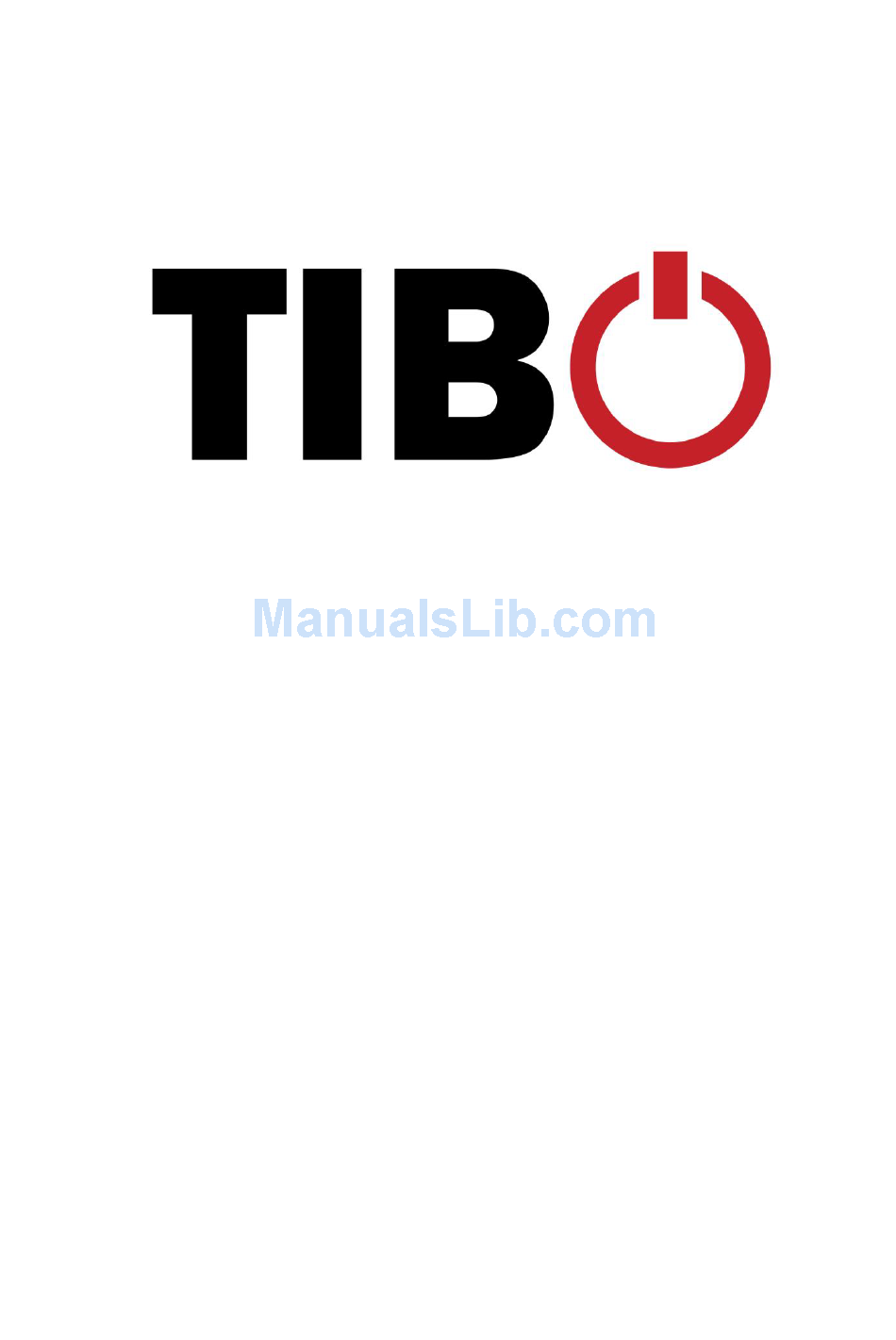

  • Page 1 Plus 1.1 / 2.1 / 3.1 User Manual...

  • Page 2: Table Of Contents

    Contents • Safety Information • First Time System Setup • Connecting Audio Sources • Bluetooth Mode • Troubleshooting • Specifications...

  • Page 3: Safety Information

    • Safety Information Do not share the power socket with another appliance. Do not disassemble or attempt to repair the appliance on your own. lf you are not using the appliance, pull the power cord out of the mains socket. Be careful of the power cord and maintain it as appropriate.
  • Page 4 Do not wash the appliance or use it in the bathroom, or it may cause potential injuries and other problems. Installation location Leave sufficient space around the appliance of at least 5 cm from any wall/obstacle to ensure proper ventilation and prevent the appliance from overheating.
  • Page 5 Storm lf the appliance is not working properly during a storm, please disconnect the plug from the power socket and reinsert it after a minute. Do not drop small items or a liquid into the appliance In the event that you find small items or a liquid inside the appliance, you see smoke or smell an odour, immediately disconnect the appliance from the power grid.

  • Page 6: First Time System Setup

    • First time system setup In the box - Plus+ Active Speaker x 1 - Plus+ Passive Speaker x 1 - Remote Control x 1 - Speaker Cable x 1 - 3.5mm to RCA Cable x 1 - Standard UK plug x 1 - Standard EU plug x 1 - User Guide x 1...
  • Page 7 Rear Panel Layout 1. Volume And Mode Select Knob 2. Speaker Output Binding Post To Connect To Passive Speaker 3. Optical Input 4. Subwoofer Output 5. 3.5 mm Stereo Mini-Jack AUX Input 6. RCA L/R Input 7. AC Input Connection (100 V - 240 V 50/60 Hz) 8.
  • Page 8 Remote Control 1. Power On / Standby 2. Mode Select 3. Skip Track Forward / Backward 4. Play / Pause 5. Pair / Unpair From Bluetooth 6. Bass / Treble Adjustment 7. Mute Function 8. Decrease Volume 9. Increase Volume...
  • Page 9 Volume/Input Select Knob The volume knob on the active speaker functions as an input select knob as well. Push the knob to select an input source, it cycles through the following inputs depending on what input source was last used. RCA, LINE-IN, OPT and BLUETOOTH.
  • Page 10 Setting up your speakers The powered speaker system is designed for either bookshelf or stand mounting. The stands should be of rigid construction, between 45 cm to 69 cm high and preferably have spikes. The space between the two speakers and the distance from the listener is important.
  • Page 11 Ensure that the ON/OFF Switch is in the OFF position. Connect the two speakers together as shown below using the supplied speaker cable. Connect the RED (+) and BLACK (−) terminals from the active speaker (left channel) to the corresponding terminals on the passive speaker (right channel).

  • Page 12: Connecting Audio Sources

    • Connecting Audio Sources TIBO Plus speakers feature a high quality DAC (digital-to-analogue converter) that supports data streams up to 24-bit/48 kHz resolution. TIBO Plus speakers support Bluetooth technology. Use the appropriate audio cable to connect your audio source components to your speakers.
  • Page 13 Analogue Inputs / Digital Inputs The Plus speakers have two options for analogue audio connections. 1. Digital Optical Input - TOSLINK® connector for connection to the digital optical output on a TV or other source. 2. 3.5 mm Stereo mini jack - The 3.5mm input jack is ideal for connecting to the headphone output of an external audio source such as a Phone or Tablet.
  • Page 14 Connecting a Subwoofer Plus speakers are equipped with an RCA connector to provide output signal to a powered subwoofer. Simply connect a single RCA subwoofer cable from the SUB OUT connection on the Speakers to the AUDIO INPUT on your subwoofer. If your subwoofer has a stereo L/R RCA input, either left or right inputs will work.

  • Page 15: Bluetooth Mode

    • Bluetooth Mode 1. With your Bluetooth device and the TIBO Plus speakers system both turned ON, press the Mode button on the Plus speakers or the remote control to make the Plus speakers system enter Bluetooth mode. The speakers will reply saying “Bluetooth mode”.

  • Page 16: Troubleshooting

    • Troubleshooting Problem Cause Solution No power AC power cord is not connected to the Please check that the AC power cord is power connected correctly. supply or is not connected to a power supply correctly. • The audio cables aren’t connected •...

  • Page 17: Specifications

    • Specifications Items Plus 1.1 Plus 2.1 Plus 3.1 Power Output 2 x 25W 2 x 35W 2 x 55W Tweeter 20mm silk dome 25mm silk dome 32mm silk dome Woofer 75mm paper cone 100mm paper cone 130mm paper cone...

This manual is also suitable for:

Plus 2.1Plus 3.1
