Summary of Contents for Tibo Kameleon Touch

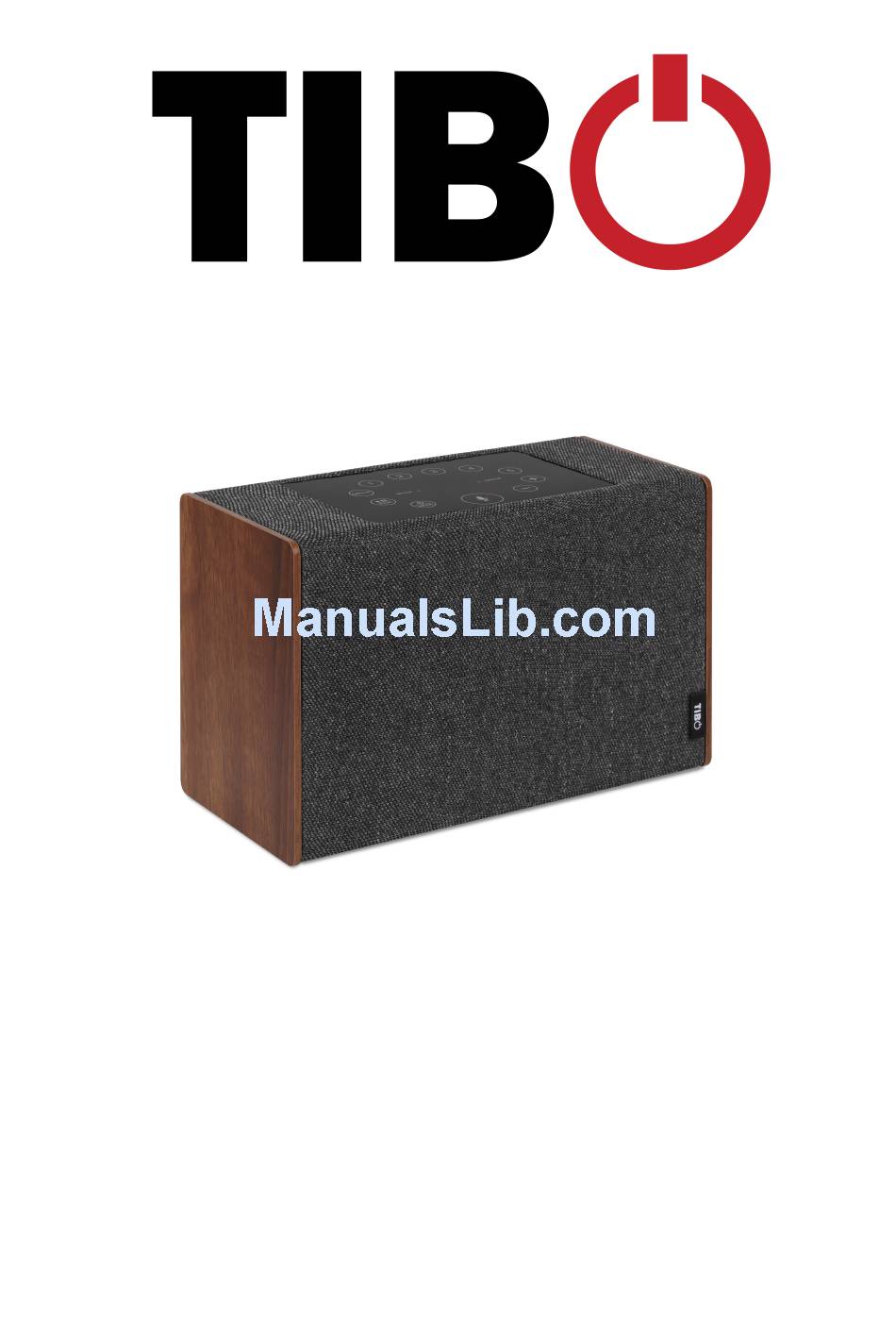

  • Page 1 Kameleon Touch – User Manual...

  • Page 2: Table Of Contents

    Contents • Safety Information • Introduction • First time speaker setup • Wi-Fi mode • Alexa setup • Grouping your Kameleon Audio pack • Using the pre-set functions • Bluetooth mode • Line In mode • Additional Information • Troubleshooting •...

  • Page 3: Safety Information

    • Safety Information Do not share the power socket with another appliance. Do not disassemble or attempt to repair the appliance on your own. lf you are not using the appliance, pull the power cord out of the mains socket. Be careful of the power cord and maintain it as appropriate.

  • Page 4: Installation Location

    Do not wash the appliance or use it in the bathroom, or it may cause potential injuries and other problems. Installation location Leave sufficient space around the appliance of at least 5 cm from any wall/obstacle to ensure proper ventilation and prevent the appliance from overheating.
  • Page 5 Storm lf the appliance is not working properly during a storm, please disconnect the plug from the power socket and reinsert it after a minute. Do not drop small items or a liquid into the appliance In the event that you find small items or a liquid inside the appliance, you see smoke or smell an odour, immediately disconnect the appliance from the power grid.

  • Page 6: Introduction

    Kameleon Touch will be enjoyable for many years to come. With Smart Audio capability and controlled by the FREE TIBO App, the Kameleon Touch can be used to playback audio in single, stereo or group mode at the touch of a button. High Resolution audio streaming via Wi-Fi or Bluetooth makes music from a wide range of sources immediately available.

  • Page 7: First Time Speaker Setup

    First time speaker setup • In the box - Kameleon speaker - Standard UK plug - Standard EU plug - 3 pairs of side panels - Quick start guide - Setup warning Top panel layout...
  • Page 8 Mode/Power Button: (Long press – turn on/off) (Short press – Choose between Bluetooth/Wi-Fi/Line in modes) Pre-set Functions: (Choose between selected pre-sets 1-5) Minus Icon: (Turn volume down) Plus Icon: (Turn volume up) Play/Pause/Pair Function: (Short press – Play and pause track) (Long press –...
  • Page 9 Rear panel layout Line In: (3.5mm audio stereo input) WPS Button: Short press to connect to Wi-Fi Plug/Power Input: (Plug power cable into this port)
  • Page 10 “Ready for app setup” when boot up is complete. App download The TIBO app helps you get setup for the first time, and helps get the most out of your speaker’s functions. The app is compatible with iOS and Android smartphones, and can be downloaded for free on Google Play or in the App Store.
  • Page 11 With the TIBO app you can: • Browse and connect to over 15000 internet • radio stations • Select a sound source • Manage Multi Mode groups • Set up, modify, and play your pre-sets • Check what song or other media is currently •...

  • Page 12: Wi-Fi Mode

    “Wi-Fi mode.” (The mode light will turn red) 2. Open the TIBO app on your Android or iOS device and follow the instructions on screen. 3. Once opened, if your TIBO app has no devices connected to it, the screen should look like this.
  • Page 13 5. Find your Wi-Fi network, type in your password and then press ‘Next’. 6. Short press the WPS button on the rear of the Kameleon speaker. The speaker will respond by saying “Searching for Wi-Fi connection.” Then press ‘Next’...
  • Page 14 7. Then wait for your Kameleon to connect to your Wi-Fi. When connected, your Kameleon will respond by saying “Wi-Fi connected. Then press ‘Next.’ 8. You can now name your Kameleon speaker within the app. Either select from the list of pre- set options or click on custom to set your own name.
  • Page 15 9. Your Kameleon will now appear on your ‘Device List’ within the app. To add more devices, press the ‘cross’ icon in the top right of the screen.

  • Page 16: Alexa Setup

    • Alexa setup Note: Make sure to download the Alexa app onto your iOS or Android device and then login using your Amazon account details. 1. Once you have connected your Kameleon Touch to the Wi-Fi, the Alexa setup screens will automatically appear.
  • Page 17 3. Alexa is now ready to use, press ‘Next’ to return to your ‘Device List’. Simply tap the microphone icon on the top panel of the Kameleon Touch to activate Alexa.
  • Page 18 You can also change settings such as location, measurement units and language within the Alexa app.
  • Page 19 Playing music via Spotify 1. Play some music in Spotify. 2. Click on ‘Devices Available’ at the bottom of the screen on Spotify. 3. Find your Kameleon on the list and connect.
  • Page 21 Playing Internet Radio and My Music 1. Swipe left and right to navigate between each page of the app. Click on ‘My Music’ to play music from your device or click ‘TuneIn’ to search for thousands of internet radio station.

  • Page 23: Grouping Your Kameleon Audio Pack

    • Grouping your Kameleon Audio pack 1. In order to use this setting, you will need to ensure that your Kameleon speakers are connected to your Wi-Fi. Press the cross + icon in the top right corner to add more devices to your Wi-Fi and follow the Wi-Fi mode setup procedure.

  • Page 24: Using The Pre-Set Functions

    16 Smart Audio products together. • Using the pre-set functions 1. On the main menu of the TIBO app, click on TuneIn and search for the radio station that you’d like to save as a pre-set.
  • Page 25 2. Next to all the radio stations you will see a speaker icon on the right of the screen. 3. Click on the speaker icon to open the pre-set content. Then click on any of the pre-sets 1-5 to save a radio station as a pre-set. You’re your Kameleon speaker will respond by saying “pre- set saved.”...

  • Page 26: Bluetooth Mode

    4. Press the corresponding number button on your Kameleon to recall the pre-set. Bluetooth mode • 1. Hold the power/mode button to turn on. If performed correctly, speaker will respond by saying “Power on.” The speaker will then tell you what mode is currently activated. E.g. Wi- Fi mode.

  • Page 27: Line In Mode

    5. You can now play music to your Kameleon via your device. • Line In mode 1. Whilst the Kameleon Touch is turned off, connect a 3.5mm jack cable to the ‘Line in’ port at the rear of the speaker and the other end of the cable to your source.

  • Page 28: Additional Information

    This is due to new functions and improved performance. A red ‘update’ box will appear next to the ‘settings’ icon on the TIBO app when there are updates available. 2. Factory reset: Pressing the WPS button will make the Kameleon search for a Wi-Fi connection.

  • Page 29: Troubleshooting

    Wi-Fi - Product too far away from router Cannot connect to router - Ensure router is dual band, as TIBO products only connect with 2.4GHz and NOT 5GHz Product dropping in and out - Source is too far away...

  • Page 30: Specifications

    • Specifications Product name Kameleon Touch Power supply AC 100-240V Max output power Frequency response 180Hz – 15kHz Impedance 6 ohms Bluetooth range 10 meters Dimensions 130 x 200 x 95mm Weight 1.8kg Sound resolution 24 bit/192kHz The Bluetooth® word mark and logos are registered trademarks owed by Bluetooth SIG Inc.
