WFLN Series
Wireless Field Level Network Transceiver (FLNX)
(Version 2.x)

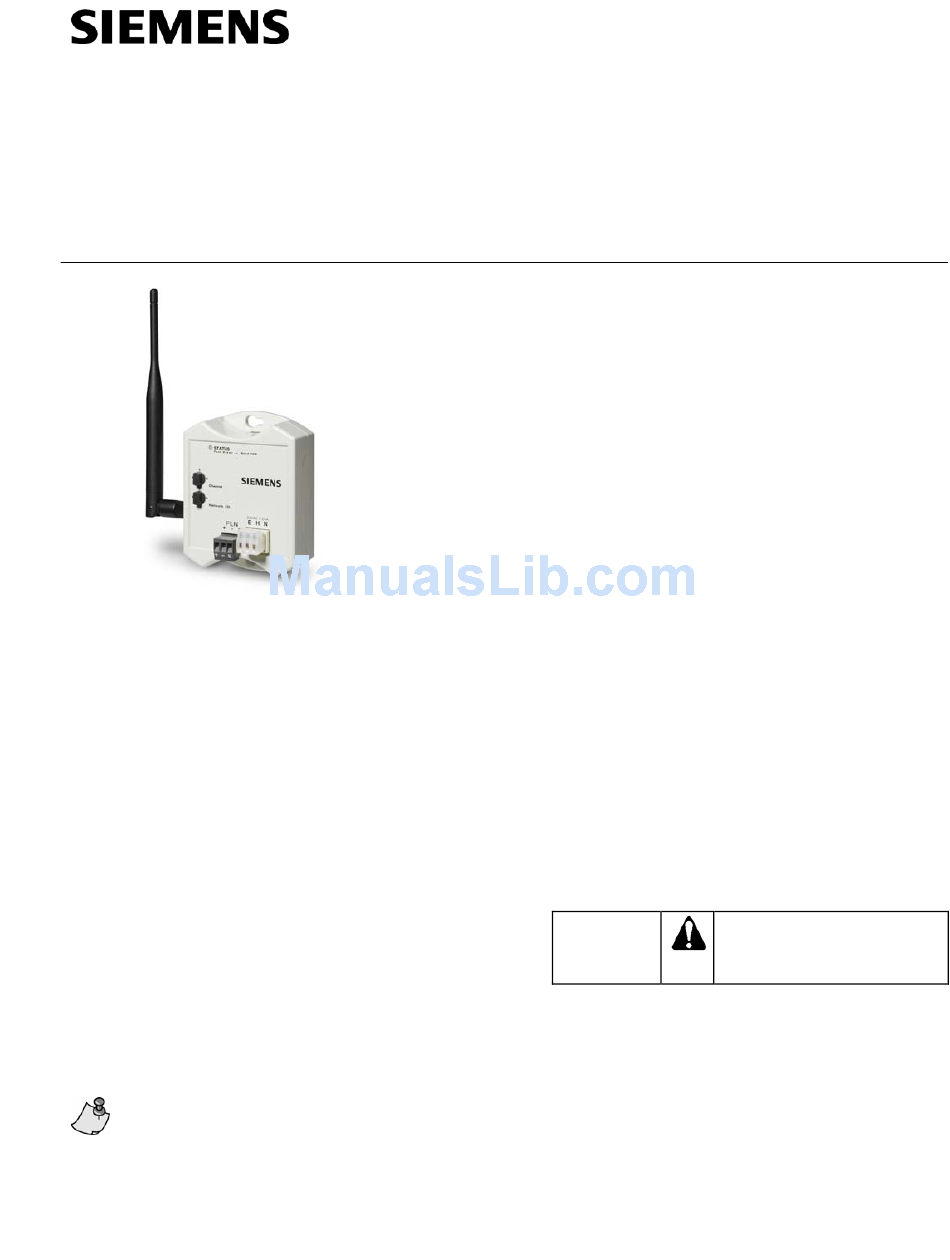

Figure 1. Wireless Field Level Network
Transceiver.
Product Description
The Wireless Field Level Network Transceiver
(FLNX) is mounted at or near the FLN device and is
powered by 24 Vac. The antenna can be mounted
directly to the radio or mounted remotely for
installations where the location of the FLNX causes
the antenna to be shielded—for example, when the
FLNX is mounted inside a TEC enclosure.
Product Numbers
563-054
Wireless Field Level Network
Transceiver (FLNX) with WRTS
Support (Version 2.x)
563-007
Direct Mount Antenna
563-008
Remote Mount Antenna
Transceivers do not come with antennas.
Antennas must be ordered separately.
Item Number 563-201, Rev. CA
Installation Instructions
Accessories
563-027
Pre-terminated Cable Kit
Includes two 14 in. (36 cm) cables:
– Power
– Communication
Recommended for factory mounting.
Related Products
Wireless Field Level Network (WFLN)
563-055
Wireless Field Panel
Transceiver (FPX)
563-056
Wireless Transceiver Tool (TLX)
QAA2290.EWSC
Wireless TEC Room
Temperature Sensor (WRTS) –
Sensing only
QAA2290.DWSC
Wireless TEC Room
Temperature Sensor (WRTS) –
Sensing with Temperature
Display
QAA2290.FWSC
Wireless TEC Room
Temperature Sensor (WRTS) –
Sensing with Override, Setpoint,
and Temperature Display
Warning/Caution Notations
CAUTION:
Expected Installation Time
10 minutes
Required Tools and Materials
•
Electro-static discharge wrist strap
•
Small flat-blade screwdriver
•
Cordless drill/driver set
Document No. 563-201
March 12, 2008
Equipment damage, or loss of
data may occur if you do not
follow the procedures as
specified.
Page 1 of 5
Advertisement
Related Manuals for Siemens WFLN Series
Summary of Contents for Siemens WFLN Series
-
Page 1: Product Description
Installation Instructions Document No. 563-201 March 12, 2008 WFLN Series Wireless Field Level Network Transceiver (FLNX) (Version 2.x) Accessories 563-027 Pre-terminated Cable Kit Includes two 14 in. (36 cm) cables: – Power – Communication Recommended for factory mounting. Related Products... -
Page 2: Antenna Mounting
(30 cm) long. The cable for the remote mount antenna will cause a slight reduction in the FLNX’s power and range, compared to using a direct mount antenna. Figure 3. FLNX Mounted Inside Enclosure. Siemens Building Technologies, Inc. Page 2 of 5... -
Page 3: Installation
Channel connecting bar in 24 Vac Network I.D. place and connect Power Line wires internally. 5. Close connector cover to secure wires. Alternate Power Figure 4. FLNX Communication and Power Wiring. Siemens Building Technologies, Inc. Page 3 of 5... - Page 4 Figure 6. The battery will power the FLNX for Figure 6. Battery Snap Connector Wiring. approximately four to six hours. Siemens Building Technologies, Inc. Page 4 of 5...
- Page 5 Information in this publication is based on current specifications. The company reserves the right to make changes in specifications and models as design improvements are introduced. Other product or company names mentioned herein may be the trademarks of their respective owners. © 2008 Siemens Building Technologies, Inc. Your feedback is important to us. If you have Document No.
