Ortofon TA-110 User Manual

Horizontal tracking error
The path of the stylus follows an arc across the record. Therefore the stylus can not
be tangential to the groove in more than 2 points.
These two points with zero horizontal tracking error are according to Baerwald,
inner null point 66.0 mm and outer null point 120.9 mm (measured from the center
of the record).
The mounting distance, the effective armlength and the overhang must be set as
specified in the User Guide in order to achieve this alignment.
New feature
Counterweight with Inner/Outer scale:
- Inner scale to be applied with main counterweight
- Outer scale to be applied when extra mass ring is added
10
1
2
3
4
5
6

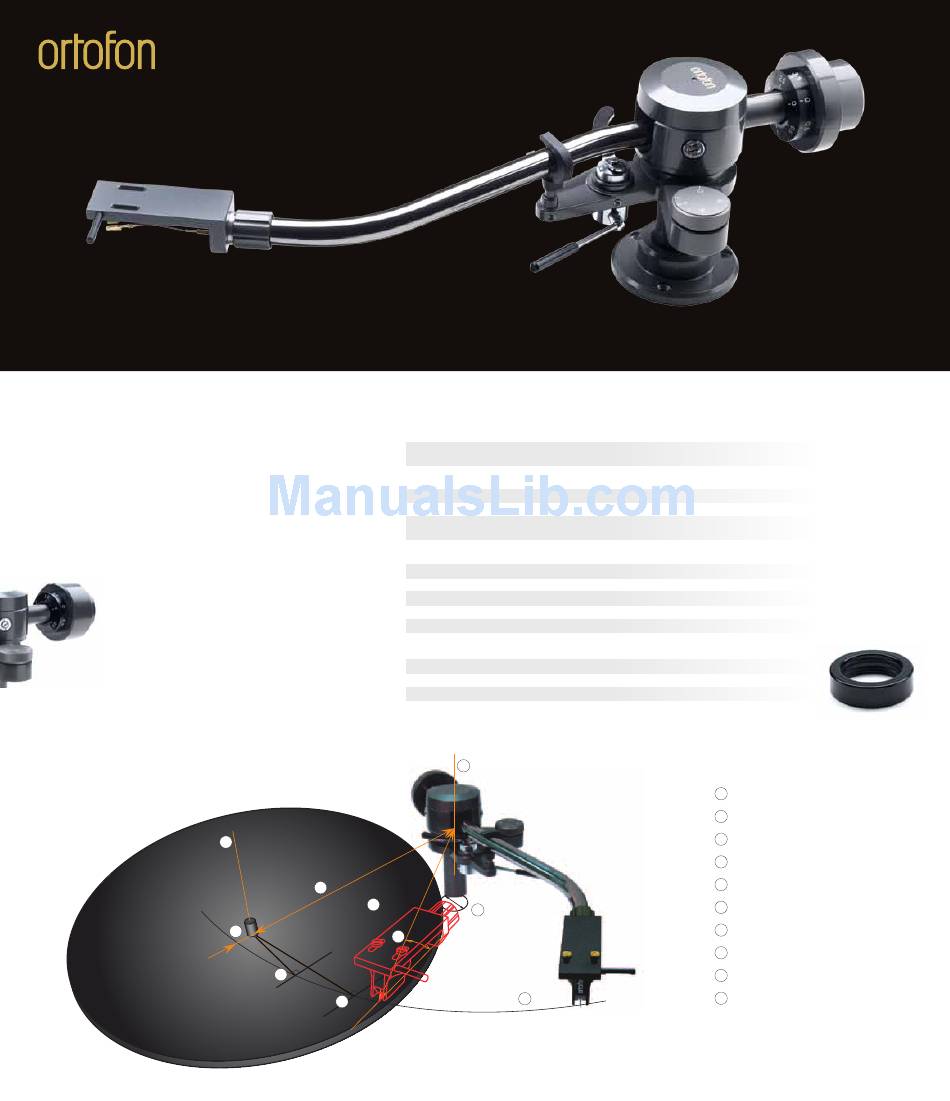

TA-110 9 inch Static Balance type Tonearm User Guide
Ortofon A/S | Stavangervej 9 | DK-4900 Nakskov | Denmark | Tel. +45 54 91 19 15 | www.ortofon.com

Specifications

Mounting distance
(Distance between the pivot point and turntable center)
Effective armlength
(Distance between the stylus and pivot point)
Effective mass without headshell
Weight of supplied headshell LH-2000E
Overhang
(Distance from the platter spindle center to the stylus point)
Offset angle
(Angle between the cartridge/cantilever axis and the line from pivot to stylus)
Tracking force adjusting range
Tracking force adjusting range (with extra mass ring mounted)
Height adjustment range
Diameter of the armbase mounting hole
Diameter of the center shaft of tonearm
Null points: Inner null point
Outer null point
Counterweight for cartridge + headshell mass between 21 and 28 g included
Extra mass ring for heavier cartridges included
Extra mass ring weight
9
8
7
TA - 110
213.0 mm
231.0 mm
3.5 g
15.5 g
18.0 mm
23.9 degrees
0-3 g
0-4 g
35 - 55 mm
19 - 20 mm
18 mm
66 mm
120.9 mm
45 g
Mounting distance
1
Effective armlength
2
Overhang
3
Offset angle
4
Inner null point
5
Outer null point
6
Stylus path
7
Diameter of the armbase mounting hole
8
Center of pivot
9
Center of spindle
10
