User manual for 3 in 1 out hot end kit
Issued by Geeetech on 2018/8/16

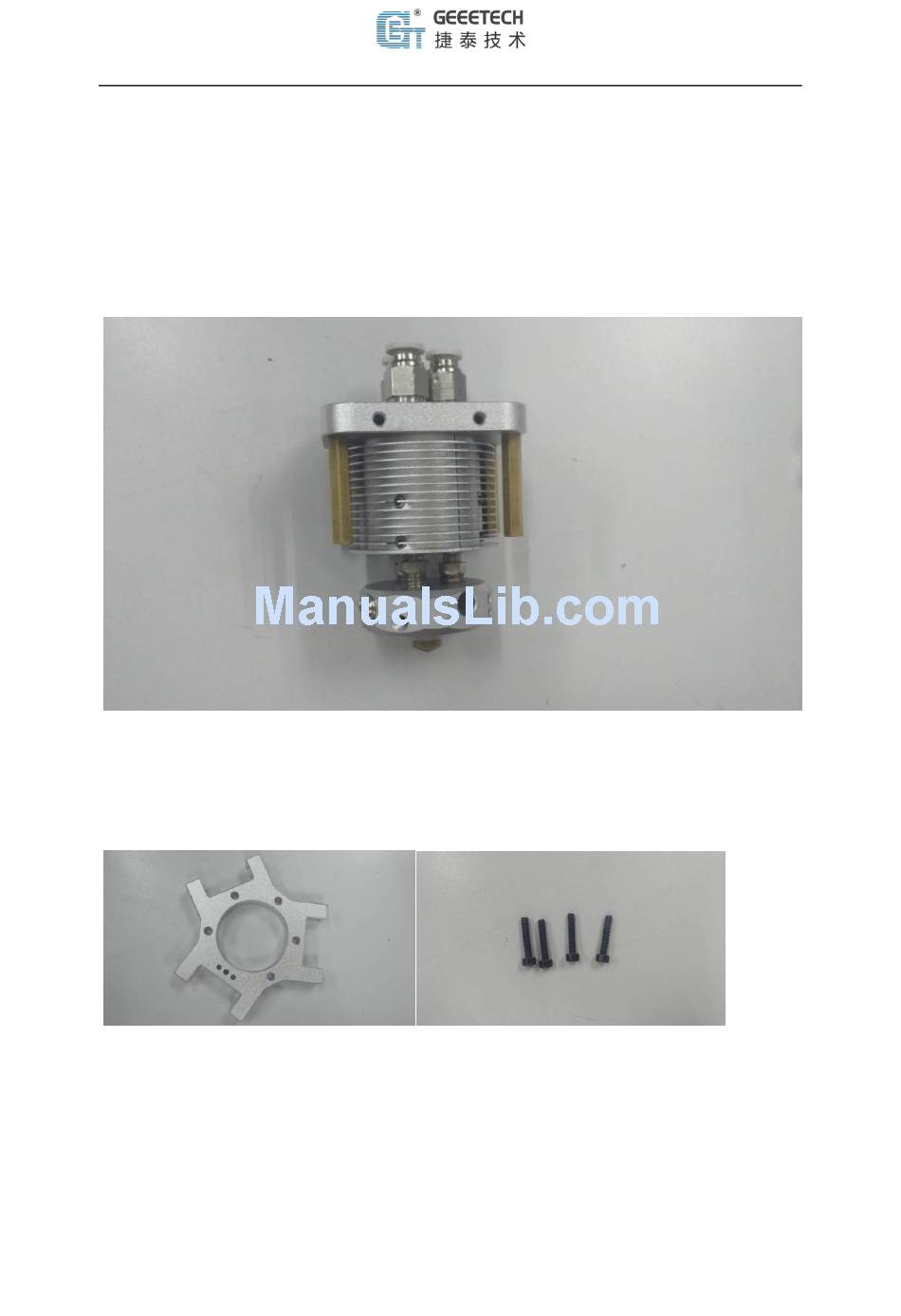

This part is pre-assembled out of box, details refer to picture below:
There is a print head fixing platform on the printer. Let the lower part of the print
head through the circular hole of the platform and use 4 M3*16 cylindrical head bolts
to fix the bottom (details see pictures below).
Advertisement
Table of Contents
Related Manuals for Geeetech 800-001-0554
Summary of Contents for Geeetech 800-001-0554
- Page 1 User manual for 3 in 1 out hot end kit Issued by Geeetech on 2018/8/16 This part is pre-assembled out of box, details refer to picture below: There is a print head fixing platform on the printer. Let the lower part of the print head through the circular hole of the platform and use 4 M3*16 cylindrical head bolts to fix the bottom (details see pictures below).
- Page 2 Use M3*16 bolts to fix the two fans respectively to the side of the radiator of the print head. Refer to picture below:...
- Page 3 Put the three heating rods into the very bottom of the three holes of the heating block, and use M3*4 headless meter screws to fix them. Put the thermistor into the temperature-detecting hole, and use M3*4 pan cross head washer bolt to fix it. Connect the wires of heating rod, fan and thermistor, and put the teflon tube into the quick connect plug.
- Page 4 Extension boards wire connection:...
