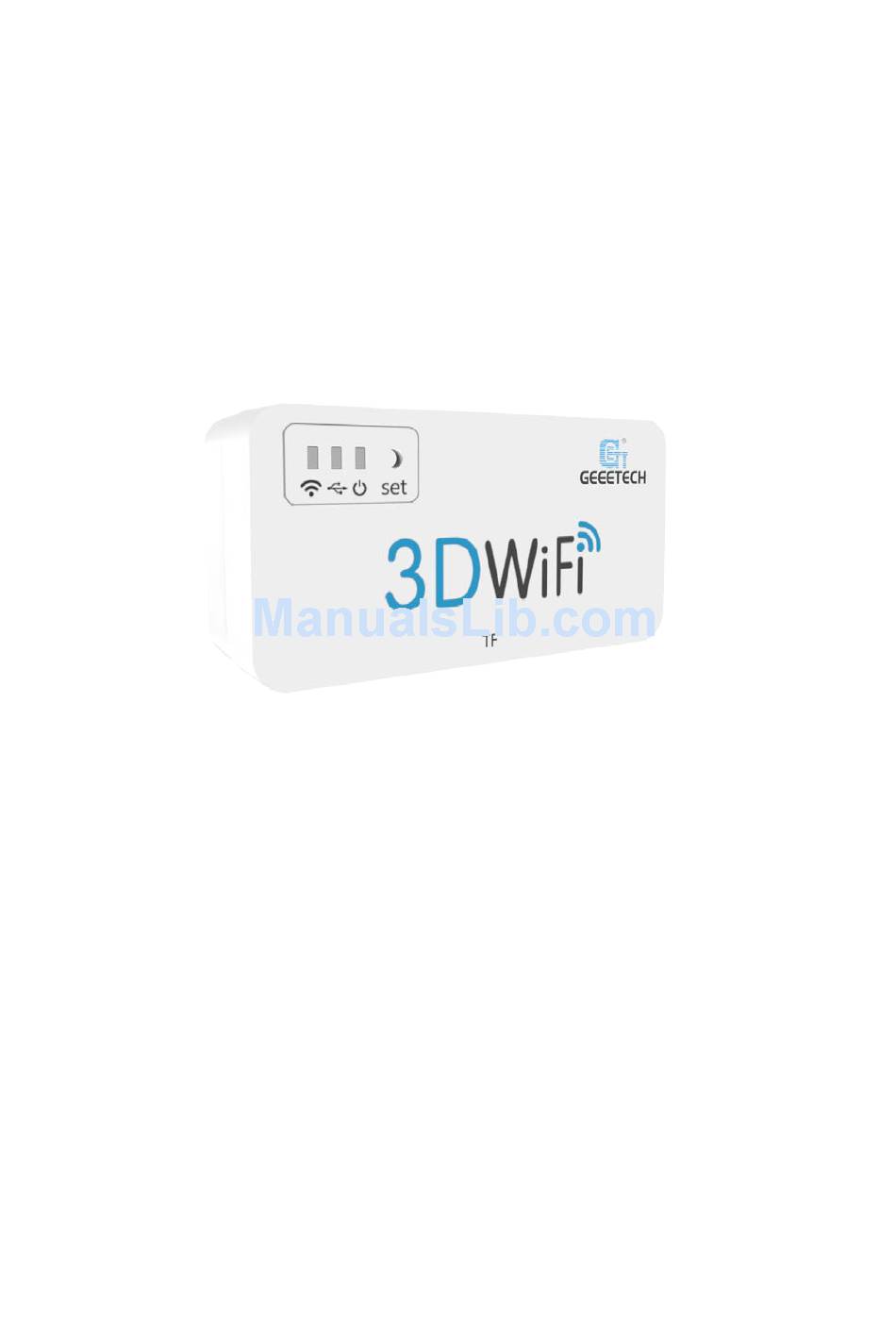

Geeetech 3D WiFi Module
—User Manual—

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3D WiFi and is the answer not in the manual?

Questions and answers

Related Manuals for Geeetech 3D WiFi

Summary of Contents for Geeetech 3D WiFi

  • Page 1 Geeetech 3D WiFi Module —User Manual—...

  • Page 2: Table Of Contents

    Contents Terms ................................1 Safety and Compliance ........................... 3 About Geeetech 3D WiFi Module ......................4 Install EasyPrint 3D App ........................5 Bind 3D printer to EasyPrint 3D App ..................... 8 Wi-Fi Configurations ..........................12 Printing via EasyPrint 3D App ......................21 Control Your 3D Printer with EasyPrint 3D App ..............21...

  • Page 3: Terms

    All information in this Manual is subject to change at any time without notice and is provided for convenience purposes only. Geeetech reserves the right to modify or revise this Manual in its sole discretion and at any time. You agree to be bound by any modifications and/or revisions.
  • Page 4 Geeetech assumes no responsibility, nor will be liable, for any damages to, or any viruses or malware that may infect your computer, telecommunication equipment, or other property caused by or arising from your downloading of any information or materials related to Geeetech products.

  • Page 5: Safety And Compliance

    Safety and Compliance Radio and Television Interference This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 6: About Geeetech 3D Wifi Module

    3D printer with Geeetech’s cloud server, making it a reality for you to control your device on EasyPrint 3D App. 3D WiFi Module is ready to use right out of box. You just need to connect your printer to its USB port and finish simple configurations on EasyPrint 3D App. That’s all. Then you can start to control your printer wirelessly.

  • Page 7: Install Easyprint 3D App

    2. Install EasyPrint 3D App Download the EasyPrint 3D APP and install it by following the instructions. www.geeetech.com/firmware/EasyPrint3D_Android.apk You could also download EasyPrint 3D App on Google Play and App Store. Once finishing installation, enter Me to register and log in.
  • Page 8 Step 2. For beginners, click [Account] to register. Enter your own account information (Note: There is no space in the user name. For foreign users, please choose “English” for your server address.)
  • Page 9 Step 3. Click [Register Now] and a pop-up interface will appear for your to check your email.

  • Page 10: Bind 3D Printer To Easyprint 3D App

    Step 4. Click OK and check your email. Log in with your account information. 3. Bind 3D printer to EasyPrint 3D App — Log in and bind the printer. In Me My 3D Printer, finish the binding process following the instructions on App. Step 1.
  • Page 11 Step2. Click the “Start to bind”button. Step 3. Click the button in the picture below to enter the serial number of 3D WiFi module manually.
  • Page 12 Step 4. Click “Next” and the picture below will pop up to inform you that the binding process is successful.
  • Page 13 Step 5. Then you will see the following interface, showing that the printer is off-line.

  • Page 14: Wi-Fi Configurations

    Detailed configuration procedures are as follows. You can watch the Wi-Fi configurations via Youtube. Step 1. Use the power cable to connect 3D WiFi Module with your adapter to power it up. The red power supply indicator light is on, while the yellow indicator lights for USB and Wi-Fi signal flicker quickly.
  • Page 15 Step 3. Please check if the TF card is inserted into the slot in the right way. Step 4. Long press the hole labeled with “set”with a pin, until the Wi-Fi indicator light turns dim and flickers quickly. Loosen the pin and 3D Wi-Fi will enter the config mode. You could finish Wi-Fi configuration on EasyPrint 3D App.
  • Page 16 Step 5. Open EasyPrint 3D App and click [Print]. At the page of pop-up, click the [Wi-Fi] icon to enter Wi-Fi configuration mode, as shown in the picture below.
  • Page 17 Step 6. Click [Next] to start to detect Wi-Fi built in the printer. If the Wi-Fi is detected, you could see the Wi-Fi list on your phone.
  • Page 18 For Apple phone users, you will first see the Wi-Fi setting interface. Click Wi-Fi button to enter the Wi-Fi list interface.
  • Page 19 If the Wi-Fi signal is not detected, a prompt “Printer Wi-Fi is not detected” will pop up. Click [OK] and again click [Next] to re-detect the Wi-Fi signal.
  • Page 20 Step 7. Choose the“GT_printer” hotspot, as shown in the picture. Step 8. After successfully connecting GT_printer hotspot, you will the follow interface. Enter the WLAN name and password of your router. Click [OK] to connect your Wi-Fi.
  • Page 21 Step 9. When you succeed in connecting the Wi-Fi, the interface will show that the configuration is finished, as shown in the picture below. Step 10. Click [OK] and the interface will show that the printer is on-line.
  • Page 22 Till here, the configuration between App and your printer is finished. Now you can print and control the printing via EasyPrint 3D App. Note: 1. During the above config process, your Phone is connected to the GT-printer wifi hotspot, which has no access to the internet connection. So you will be logged out. After your successful config., your phone will be connected to your previous network automatically.

  • Page 23: Printing Via Easyprint 3D App

    5. Printing via EasyPrint 3D App As above, once the configuration between APP and the printer is successful, you can start to print. Note: A TF card is still needed when print via Wi-Fi to save the files. 5.1 Control Your 3D Printer with EasyPrint 3D App 5.1.1 Introduction to Print Interface Click the [Print] button.
  • Page 24 Move: control the moving direction of each axis. Temp: show the temperature of the extruder and hotbed. Speed: show printing speed and fan speed. Leveling: use the 5 points leveling method to calibrate the building platform. Filament: load / unload filament. Wi-Fi: click to start Wi-Fi config.

  • Page 25: Move

    G-Code: convenient to send G-code instructions to control your 3D printer. 5.1.2 Move Click the [Move]icon , and the following picture will pop up. Switch on the [Enable stepper motors] button to control the moving direction and distance of each axis.

  • Page 26: Temp

    Click to home Y axis. Click to home Z axis. Click to move X axis towards the origin of coordinates. Click to move X axis away from the origin of coordinates. Click to move Y axis towards the origin of coordinates. Click to move Y axis away from the origin of coordinates.

  • Page 27: Speed

    5.1.4 Speed Click the [Speed] icon to observe the real-time printing speed and fan speed.

  • Page 28: Leveling

    5.1.5 Leveling When the printer is idle, it is accurate and efficient to use 5 points leveling method to calibrate the building platform. Click the [Leveling] icon and the following picture will pop up. At the same time, X/Y/Z axis will be homed in sync and Z axis will move to the position Z= 10mm. Please make sure that the [Enable stepper motors] button is switched on.

  • Page 29: Filament

    1) Choose point 1: Z axis will move upward to the position Z = 10mm. The printing head will move to point 1 and move downward to the position Z = 0 mm. Use an A4 paper to make sure the distance between the printing head and building platform is appropriate (with a little friction).
  • Page 30 Step1: Click the center part of this icon to set the target temperature for the extruder. Usually at 200℃ or so. Take 195 ℃ for instance. After entering the value, please click [OK].
  • Page 31 Step 2. Click [Heat up] button and you will see the extruder temp increases until it reaches the target one.

  • Page 32: Wi-Fi

    Step 3. After the extruder reaches its target temp, please choose the [Load] icon to load filament. 5.1.7 Wi-Fi Click Wi-Fi icon and you will see the following interface. Click [Next] to start your Wi-Fi configurations. For detailed configuration process, please make reference to Part...

  • Page 33: Setting

    5.1.8 Setting Click the [Setting] icon and you will see the specific parameters of your 3D printer, like baud rate, printing volume, extruder number, etc.

  • Page 34: G-Code

    5.1.9 G-Code Click the [G-Code] icon to send instructions for controlling the overall printing job.

  • Page 35: Printing From Cloud Gallery

    5.2 Printing from Cloud Gallery Step 1.Click Community—— Cloud, choose the type of models...
  • Page 36 Enter the model page; choose your favorite model, let’s take the “Rose” as an example:...
  • Page 37 Enter the [Model details] page, click the button “Print” here, you can preview to the model You can make some simple operations to the model on the screen with fingers, such as, zooming, rotating or moving.
  • Page 38 Click the “Print” button to start print. This will take a while to transfer the file from the cloud server to your printer. Please keep your wireless networks unimpeded. During the uploading, you can pause the uploading or give it up. Upon uploading, it will start printing after a while.

  • Page 39: Printing From Tf Card

    5. 3 Printing from TF card Step 1. Click [Community] to choose [SD card]. The interface will show the G.code files from TF card. [Refresh] the interface, if there is no response.
  • Page 40 Step 2. Choose a model file and click [Print]. The interface will show the printing progress. After the extruder reaches its target temperature, the printer will start to run.

  • Page 41: Faq

    6. FAQ Q1: How to enter the configuration mode and reset mode? A: Press "set" with a pin, you will find the Wi-Fi indicator light gets dim and then flickers fast. At this moment，it is in Configuration mode. Keep pressing and the light will flicker slowly to enter the reset mode.

  • Page 42: Specs

    A: Make sure the 3D WiFi Module is in a good internet condition. Then go into configuration mode and choose the Wi-Fi hotspot with the strongest signal. 7. Specs  CPU:STM32F107 +ESP8266  power supply: 5V DC  Working current: 150mA(on average),500mA(peak) ...
  • Page 43 1. There are lots of documents and troubleshooting for 3D WiFi Module on our website. They are good resources if you would like to quickly solve problems by yourself. Technical 2.If you still can not solve problems yourself even with the help of above files,...
