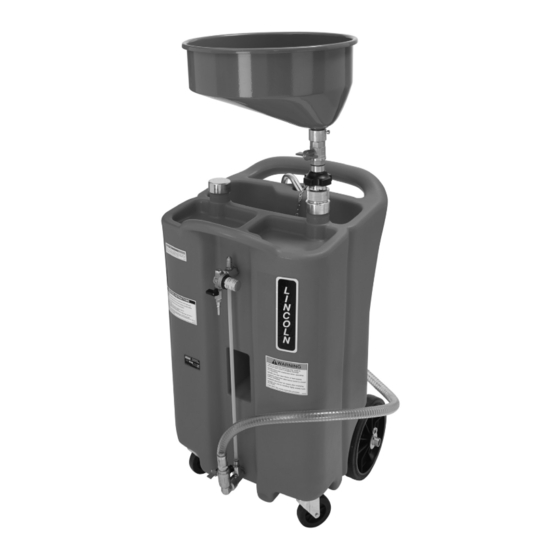

Used oil receiver
Model 3624
October 2014
Date of issue
Form number
404087D
Section
B4
Page
31D
D a n g e r
Read manual prior to installation or use
of this product. Keep manual nearby for
future reference. Failure to follow
instructions and safety precautions may
result in death or serious injury.
User guide
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lincoln 3624
Summary of Contents for Lincoln 3624
-
Page 1: User Guide
User guide Used oil receiver Model 3624 October 2014 Date of issue D a n g e r Form number 404087D Read manual prior to installation or use Section of this product. Keep manual nearby for Page future reference. Failure to follow instructions and safety precautions may result in death or serious injury. - Page 2 0.5%, before beginning to slide. • If the used oil receiver malfunctions, con- tact the dealer or send it to the nearest service center. • When replacing parts, always demand original replacement parts from an authorized Lincoln dealer or retailer.
- Page 3 Emptying tank Operation Notice Never fill tank over maximum To position the oil drain bowl, loosen locking 1 Close ball valve (10). level given by level indicator (17). ring, raise the drain bowl to the desired 2 Connect compressed air to air nipple (30) Receiver full when level (17) is position and retighten.
- Page 4 5.02 in. (127,5 mm) Ø 17.52 in. (Ø 445 mm)
- Page 5 Service parts Item no. Description Part number Qty Item no. Description Part number Qty 247130 Warning label Rear wheel set 274462 Cover bushing 274446 Axle 274459 O-ring 274471 Drain hose 274007 273995 Ring nut kit Name plate 274106 Elastic ring 274470 Operating instructions 274105...
-
Page 6: Standard Limited Warranty
314-679-4200 required. (international number 01-314-679-4200) In no event shall Lincoln be liable for inci- or you may also use our website dental or consequential damages. Lincoln’s www.lincolnindustrial.com liability for any claim for loss or damages... - Page 7 This page left intentionally blank.
- Page 8 ® SKF is a registered trademark of the SKF Group. ® Lincoln is a registered trademark of Lincoln Industrial Corp. © SKF Group 2014 The contents of this publication are the copyright of the publisher and may not be reproduced (even extracts) unless prior written permis- sion is granted.
