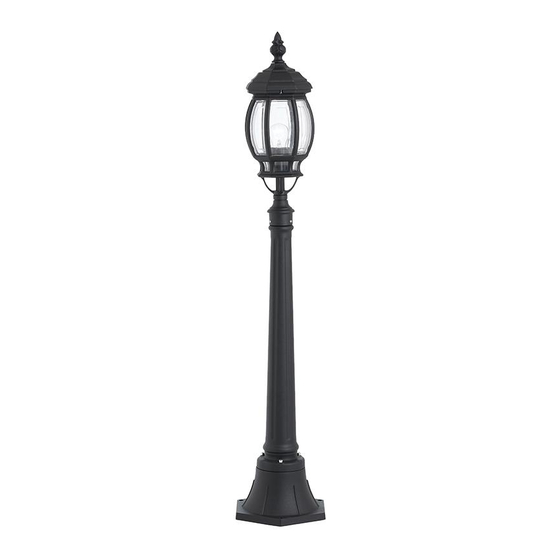

IP 44 Rated Outdoor Posts – YG-0923
ADDITIONAL INSTRUCTION MANUAL
Specific Assembly/ User Instructions
Please read these instructions carefully in conjunction with the general instruction GI 41v1 before fitting your new light
and retain for reference. Please note any Safety Warnings.
The diagrams are not presented in assembly order.
Allen key grub screws
to fix head to post
Allen key
Terminal Block
Terminal Block Bracket
This Lamp Post must be Earthed
1
Ins_YG-0923v2
Advertisement
Table of Contents
Related Manuals for Endon YG-0923
Summary of Contents for Endon YG-0923
- Page 1 IP 44 Rated Outdoor Posts – YG-0923 ADDITIONAL INSTRUCTION MANUAL Specific Assembly/ User Instructions Please read these instructions carefully in conjunction with the general instruction GI 41v1 before fitting your new light and retain for reference. Please note any Safety Warnings.
- Page 2 Clean only with a soft cloth or cloth soaked in warm water, do not use abrasive cleaning products. Replace broken or cracked glass, this symbol will be on the Post. Do not use until replaced, contact your retailer for replacements. Endon Lighting LS9 0SE 20151110...
