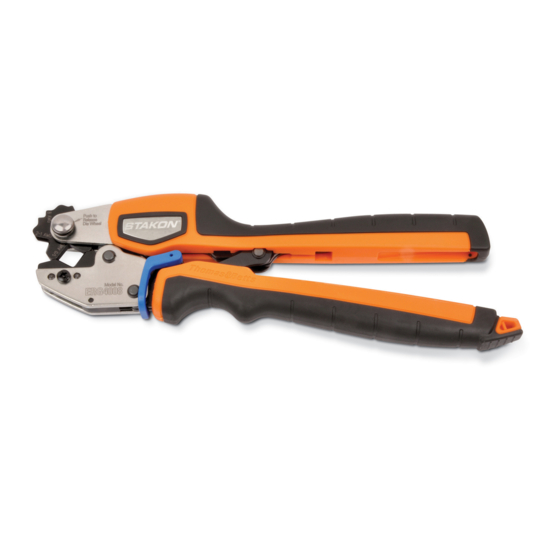

Comfort crimp; compression tool with shure stake mechanism for installing color-keyed copper and aluminum lugs, splices, c-taps and pigtails 8-2 awg cu, 10-6 awg al

Advertisement

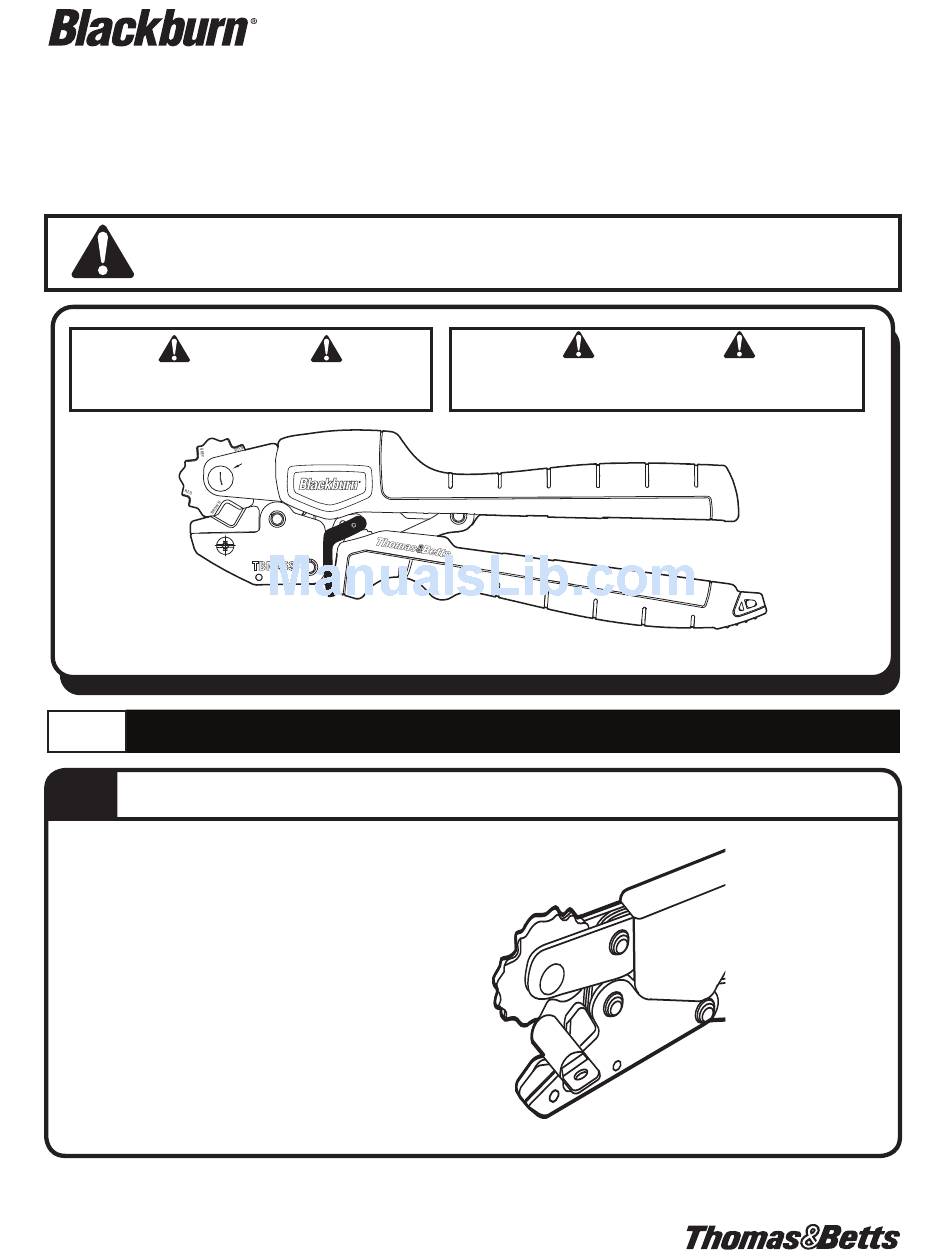

Featuring the Color-Keyed
System
®
TBM45S COMFORT CRIMP
COMPRESSION TOOL WITH SHURE STAKE
For Installing Color-Keyed
Lugs, Splices, C-Taps and Pigtails 8-2 AWG Cu, 10-6 AWG Al
IMPORTANT:
information in this manual before operating or servicing this tool.
WARNING
KEEP ALL BODY PARTS AWAY FROM DIE NEST
DURING GAGING OR CRIMPING PROCEDURE.
In the event the SHURE STAKE
1.0
1.1
For Use With Color-Keyed
1.
Open handles fully.
2. Depress wheel release button and rotate
wheel to proper die nest. Allow wheel to
lock into position by releasing button.
3. Insert terminal into the nest as shown in
Figure 2.
4. Close the handles slightly to secure the
terminal. Do not deform the terminal.
5. Insert stripped wire.
6. Close handles until the SHURE STAKE
mechanism cycle has been completed.
7. Perform two equally spaced crimps on the
terminal barrel.
TA04537 D Page 1 of 2
Read and understand all of the instructions and safety
Push to
Release
Die Wheel
Green Die
C-TAPS ONLY
Model No.
mechanism must be released, please see Figure 4.
®

INSTRUCTIONS FOR USE

Copper and Aluminum
®
WARNING
HANDLES ARE NON-INSULATING.
DO NOT CRIMP ON HOT ENERGIZED WIRES.
Lugs, Splices, Pigtails and C-Taps
®
®
®
MECHANISM
®
Figure 1
Figure 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TBM45S and is the answer not in the manual?

Questions and answers

Summary of Contents for blackburn TBM45S

  • Page 1 Featuring the Color-Keyed System ® TBM45S COMFORT CRIMP ® COMPRESSION TOOL WITH SHURE STAKE MECHANISM ® For Installing Color-Keyed Copper and Aluminum ® Lugs, Splices, C-Taps and Pigtails 8-2 AWG Cu, 10-6 AWG Al IMPORTANT: Read and understand all of the instructions and safety information in this manual before operating or servicing this tool.
  • Page 2 3. Close handles until SHURE STAKE mechanism just ® TABLE 1 trips. TBM45S GAGING 4. Insert gage pin into nest. The REQUIREMENTS correct gage pin size should enter nest area freely GAGING NEST with a minimum amount of finger pressure. The MIN.
