Summary of Contents for Dialog 4G Wingle

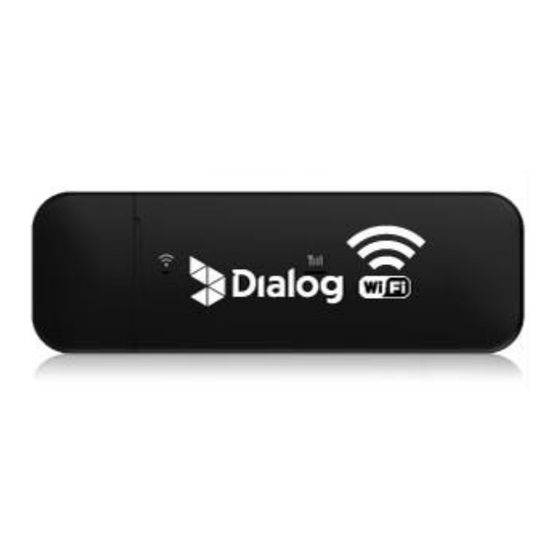

- Page 2 About Dialog 4G Wingle USB Connector Data transfer LED indicator Signal LED indicator...
- Page 3 It indicates the different status of the Wingle as below： Data transfer LED indicator Green blinking means the Wingle is transferring data Signal LED indicator Green means the Wingle is connected to 4G or 3G network. ...
- Page 4 Inserting the SIM Card 1. Slide the cover to remove it from the Wingle. 2. Insert the SIM card into the card slot as below. 3. Replace the cover and slide it into place.
- Page 5 Wingle is plugging in the PC as this may damage the card and Wingle. How to use Dialog 4G Wingle with Network Step1: insert the SIM card Step2: plug the Wingle into the USB ports of your PC with right position...
- Page 6 Step3: Wait for a few seconds until the signal indicator light turn to green which means the Wingle is connected to the network.
- Page 7 Disconnecting from network connection Unplug the Wingle from the computer. Note： When unplugging the device from the computer, remove it gently to protect Wingle and the USB port of the computer.
- Page 8 Logging into the Device Management website 1. Make sure the end-user device is connected to the Wingle. 2. Open the browser, enter http://192.168.0.1 in the address box. 3. Enter the password, and click “login”. The administrator has the right to check and modify configuration permission.
-
Page 9: Troubleshooting
Trouble Shooting If you are having trouble with the Wingle, follow these steps: 1. Log into the device management website and click the help icon on the top right corner for answers to frequently asked questions. is not responsive, reboot it by pressing the ‘Reset’ button for about 5 2. - Page 10 Note: 1. The Modem product shall only be connected using a USB interface of version USB2.0. 2. The maximum operating temperature of the Wingle is 35℃. 3. Frequency information.
- Page 11 WIFI Operation Frequency: 802.11b/802.11g/802.11n(HT20): 2412MHz~2472MHz Maximum Power(2.4G) 13.20dBm(e.i.r.p.) WCDMA Operation Frequency: Band I:1920MHz~1980MHz Band VIII:880MHz~915MHz...
- Page 12 Maximum Power(Band I) 22.69dBm(e.i.r.p.) Maximum Power(Band VIII) 22.47dBm(e.i.r.p.) Operation Frequency: Band 3:1710MHz ~ 1785MHz Band 8:880MHz ~915MHz Maximum Power(band 3) 21 dBm(e.i.r.p.) Maximum Power(band 8) 20.99dBm(e.i.r.p.)
